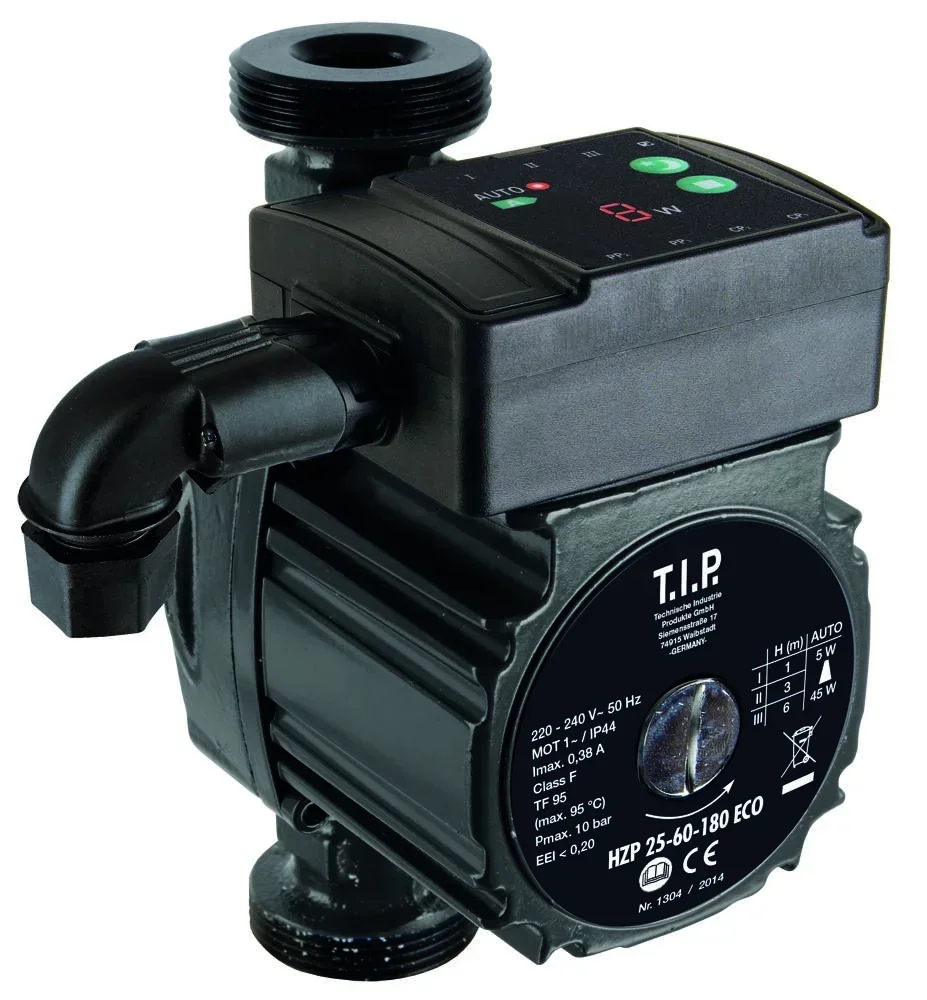

Heating circulation HZP 25-60-180 ECO
| Item number | WF-975360 |
| Brand | T.I.P. |
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choiceThere are no questions yet
Ask a question to learn more about the product
0.0
The HZP ECO features a permanent magnet motor and differential pressure control, allowing continuous adjustment of the pump output to the current system conditions. Thanks to the AUTO function (factory setting), the pump can be put into operation directly in most cases without the need for further adjustment. Energy consumption is significantly lower (up to 80%) than with standard circulation pumps. In addition to the AUTO setting, various control modes are available, including automatic night-time setback. The Energy Efficiency Index (EEI) of this pump, at 0.18, is well below legal requirements. Includes a custom-fit insulation shell, two seals, and a system plug for easy electrical connection.
Technical Data
- Mains voltage / frequency: 230 V - 50 Hz
- Pump connection: 47.80 mm (1 1/2") external thread, 47.80 mm (1 1/2") external thread
- Installation dimensions: 180 mm
- Max. Liquid temperature: 95 °C
- Max. operating pressure: 10 bar
- Protection class: IP 44
- Insulation class: F
Dimensions: 20.5 x 15 x 17 cm
Weight: 2.3 kg
| Frequency | |
|---|---|
| Frequency | 50 |
| Weight | |
| Weight | 2.3 kg |
| Maximum pressure | |
| Maximum pressure | 10 bar |
| Drive | |
| Drive | 230 V motor |
| Voltage | |
| Voltage | 230 V |
| IP protection class | |
| IP protection class | IP44 |
| External dimensions | |
| External dimensions | 20.5 x 15 x 17 cm |
