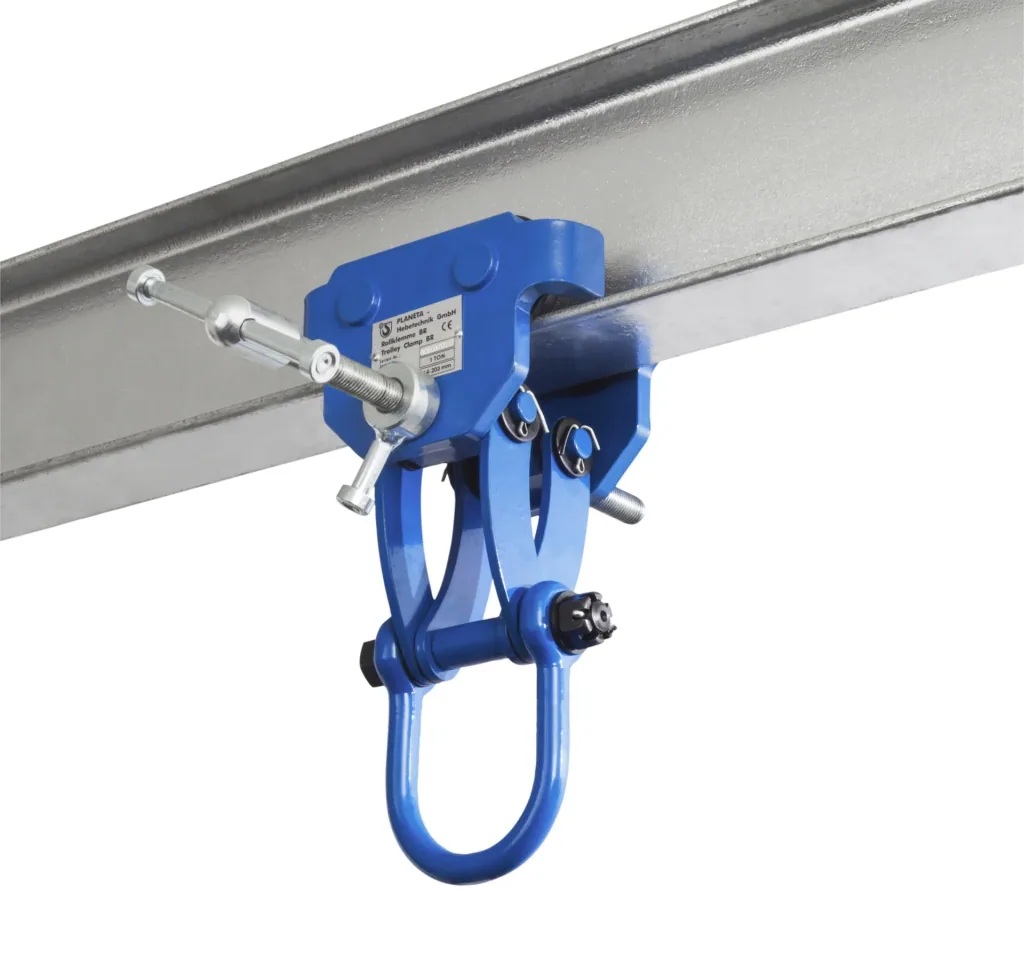

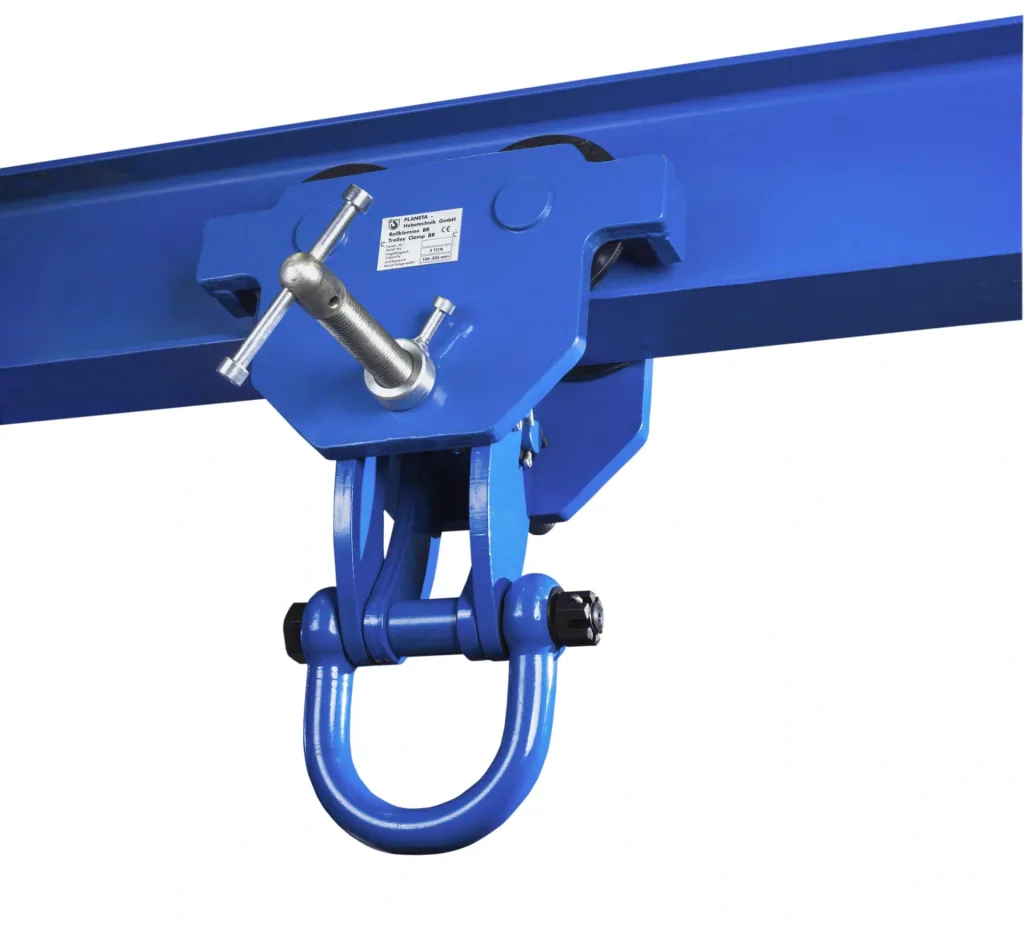

Roll clamp BR 20, load capacity 5000 kg, gripping range 100 - 305 mm, min. curve radius 1.5 m
| Item number | WF-977972 |
| Brand | PLANETA |
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choiceThere are no questions yet
Ask a question to learn more about the product
0.0
The BR beam clamp with integrated roller carriage serves as an assembly aid for easily attaching and moving loads to ceiling beams.
Adjustment to the beam flange width is achieved by turning the threaded spindle. For securing, the locking lever is turned against the side plate. It is adjustable for a wide range of beams and various profiles (e.g., INP, IPE, and IPB).
Optimal running thanks to machined steel rollers with permanently lubricated, encapsulated ball bearings. The spindle is galvanized to protect against corrosion.
UVV Safety: The beam clamp with integrated roller carriage complies with the UVV (German Accident Prevention Regulation) for vertical load handling. Each BR model clamp is overload-tested. The devices are delivered with a test certificate stating the serial number and an operating manual with an integrated EC declaration of conformity.
| Gripping range A min | |
|---|---|
| Gripping range A min | 100 mm |
| Load capacity | |
| Load capacity | 5000 kg |
| Weight | |
| Weight | 53 kg |
| Gripping range A max | |
| Gripping range A max | 305 mm |
| Carrying case | |
| Carrying case | no |
| Radius | |
| Radius | 1.5 m |
| Drive | |
| Drive | Manual |
