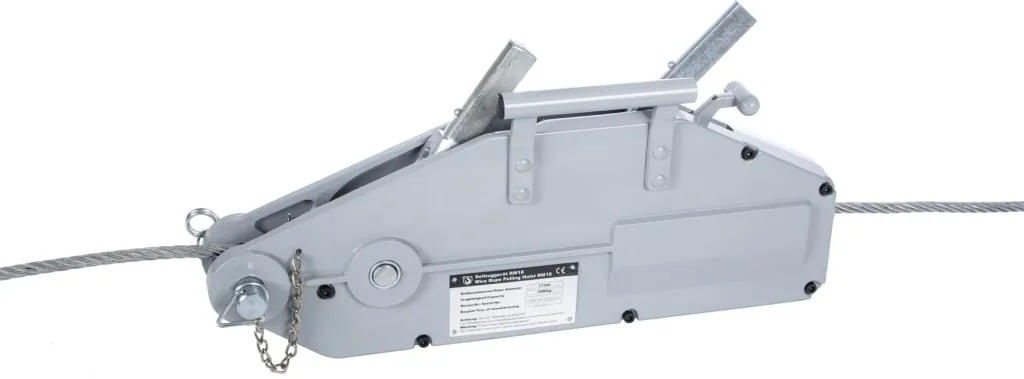

Ropemaster RM08 cable pulley, including lever tube and 20 m rope with hook
| Item number | WF-977974 |
| Brand | PLANETA |
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choiceThere are no questions yet
Ask a question to learn more about the product
0.0
- Load capacity from 800 kg to 5,400 kg
- Housing made of high-strength aluminum alloy
- Overload protection via shear pins
- Sturdy stop bolt
- Virtually maintenance-free
This wire rope hoist was specially designed for use in industry, particularly civil engineering, overhead line construction, shipbuilding, oil refineries, etc. The wire rope hoist is virtually maintenance-free – handling is light, simple, and safe.

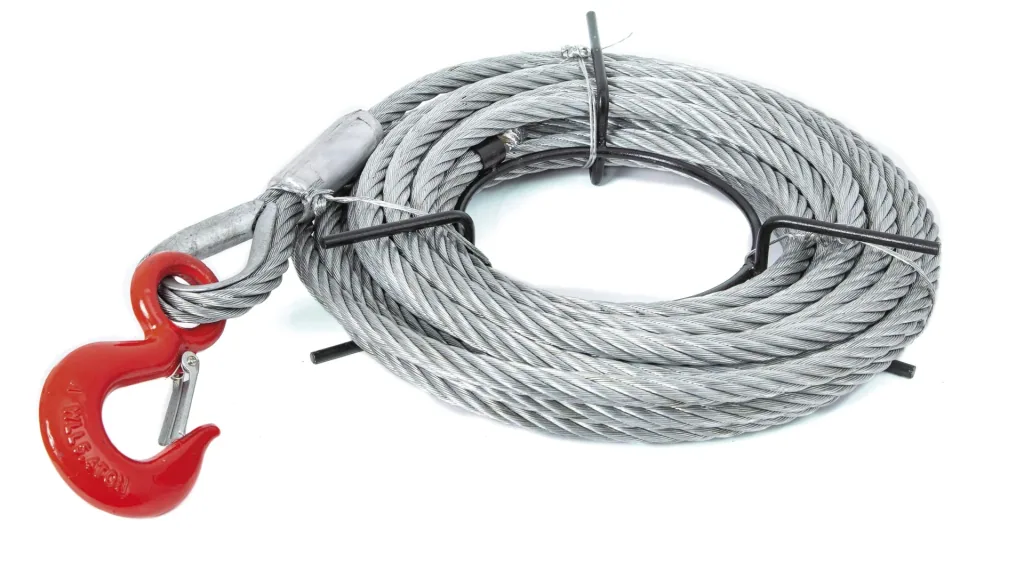

The standard equipment includes the wire rope hoist with hand lever and an original PLANETA wire rope with a steel core.
Each wire rope hoist is overload-tested and delivered with a test certificate stating the serial number. PLANETA wire rope hoists are certified and approved by a large number of national and international authorities.
Processing and Equipment
Low-wear, parallel, large-surface clamping jaw pairs protect the traction rope by applying even surface load. The large stroke enables high operating speeds.
Stability is ensured by smooth, large-surface floor supports in both horizontal and vertical operating positions.
Rope feed lever and retraction lever on one level enable a narrow design and guarantee a centralized power flow.
Overload protection is provided by a shear pin in the feed lever. Spare pins are located in the hand lever handle or carrying handle and can be replaced without relieving the load on the traction rope.
| Rope diameter | |
|---|---|
| Rope diameter | 8.3 mm |
| Rope feed | |
| Rope feed | 52 mm |
| Drive | |
| Drive | Manual |
| Rope length | |
| Rope length | 20 m |
| Lever force | |
| Lever force | 34 daN |
| Weight | |
| Weight | 14.6 kg |
| Load capacity | |
| Load capacity | 800 kg |
| Lever length | |
| Lever length | 800 mm |
