Spur gear hoist Pullmaster-II 0.5, load capacity 500 kg, 1-fall, stroke 3.0 m, operating length 2.5 m
| Item number | WF-977989 |
| Brand | PLANETA |
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choiceThere are no questions yet
Ask a question to learn more about the product
0.0
- Load capacity of up to 10.00 kg (depending on the model)
- Freely rotating hooks
- Load chain according to EN-818-7-T
- Asbestos-free safety brake
- Robust steel housing
The PLANETA-PULLMASTER-II pulley block is the result of consistent further development of the PULLMASTER series. It impresses with its robust design and very compact dimensions. The asbestos-free safety brake always grips reliably and holds the load securely in any position. The forged carrying and load hooks, made of heat-treated, tempered steel, are equipped with spring-loaded, galvanized hook safety devices.

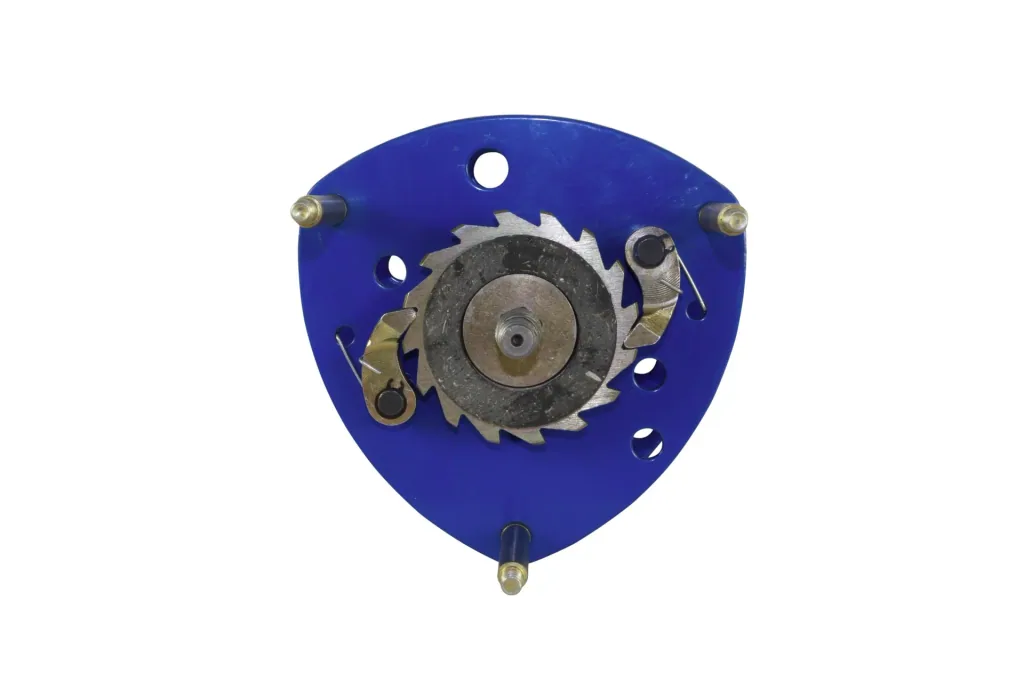

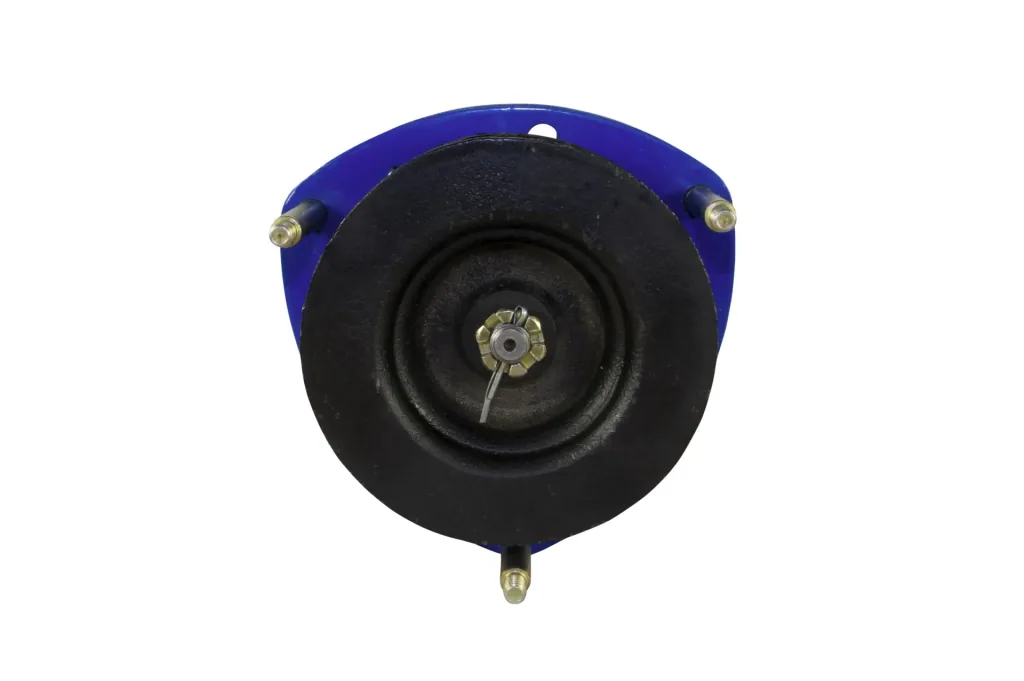

Safety brake
The asbestos-free disc brake always grips reliably and holds the load securely in any position. In addition, two pawls act on the ratchet wheel.
Steel Housing
The precisely manufactured housing made of deep-formed sheet steel, as well as the deflection pulleys and hook holders made of cast steel, give the PULLMASTER-II pulley block maximum durability.

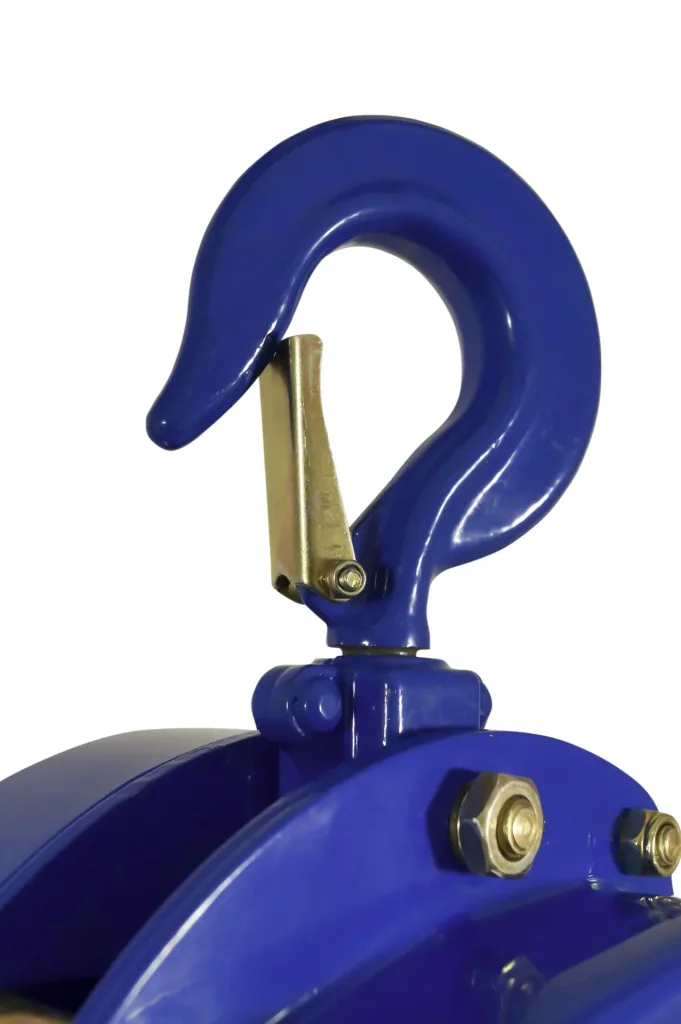

Rotatable Hooks
The forged carrying and load hooks, made of heat-treated tempered steel, are equipped with spring-loaded, galvanized hook locks.
Corrosion Protection
Galvanized screws, nuts, and bolts, as well as the tempered load chain according to EN 818-7-T, offer the best corrosion protection, even when used outdoors.

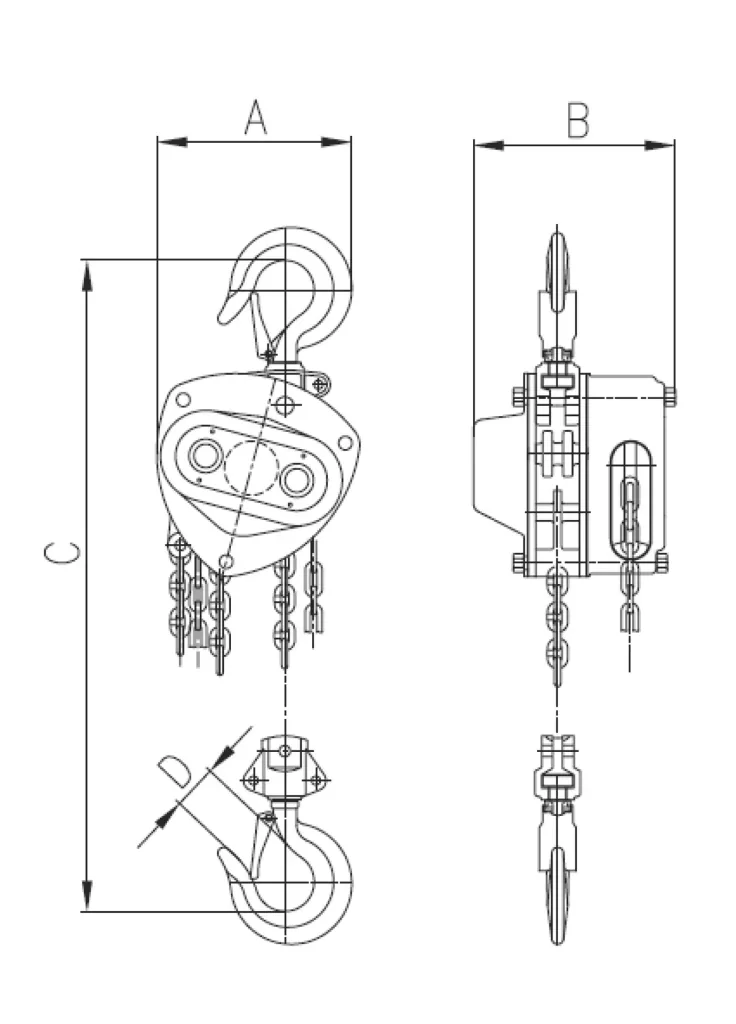

| Overall height | |
|---|---|
| Overall height | 285 mm |
| Reel travel | |
| Reel travel | 25.5 m |
| Drive | |
| Drive | Manual |
| Pulling force | |
| Pulling force | 19 daN |
| Number of chain strands | |
| Number of chain strands | 1 |
| Lifting capacity | |
| Lifting capacity | 500 kg |
| External dimensions | |
| External dimensions | 120 x 116 x 28 |
| Lifting height | |
| Lifting height | 3 m |
| Weight | |
| Weight | 7.5 kg |
