Spur gear hoist Pullmaster-II 1.5, load capacity 1,500 kg, single-fall, stroke 3.0 m, operating length 2.5 m
Guaranteed Secure Checkout
| Item number | WF-977996 |
| Brand | PLANETA |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- Load capacity of 500 kg
- Freely rotating hooks
- Load chain according to EN-818-7-T

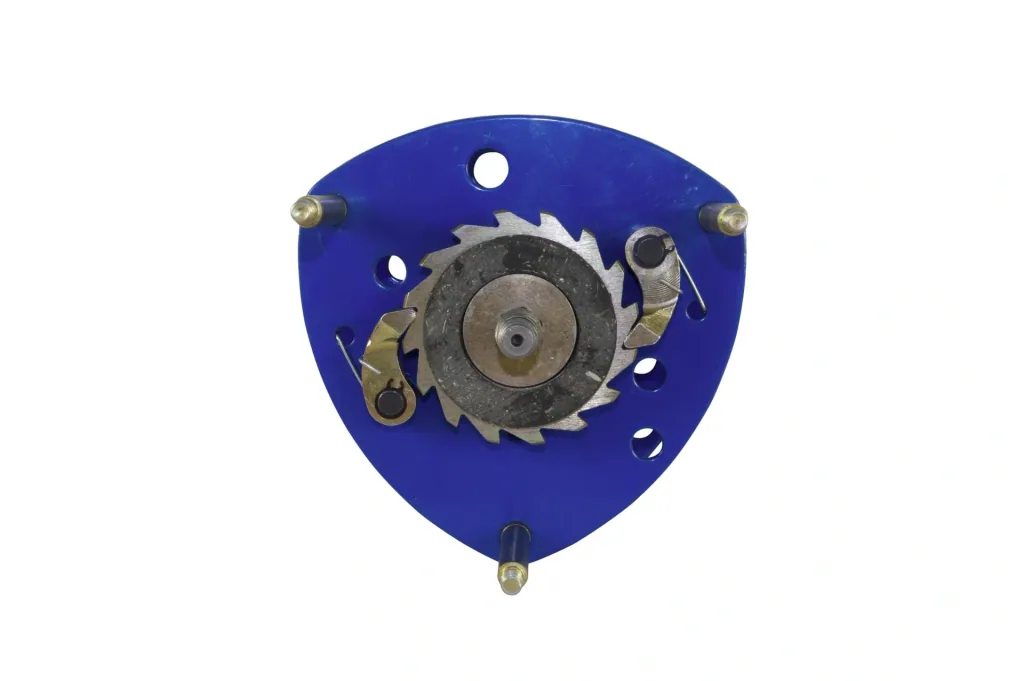

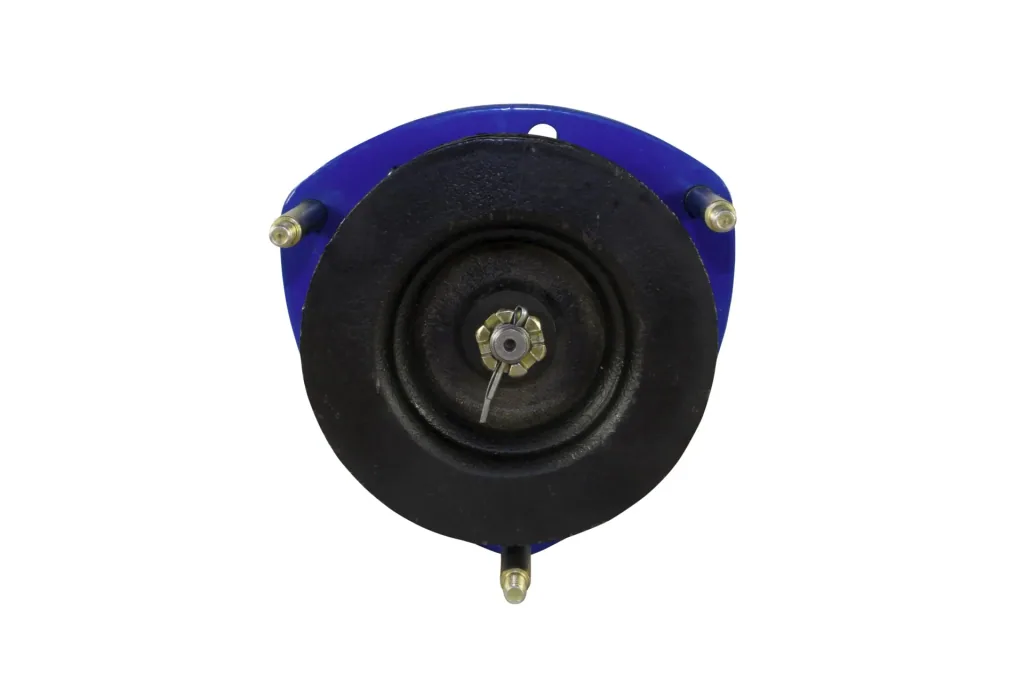

- Asbestos-free safety brake
- Robust steel housing

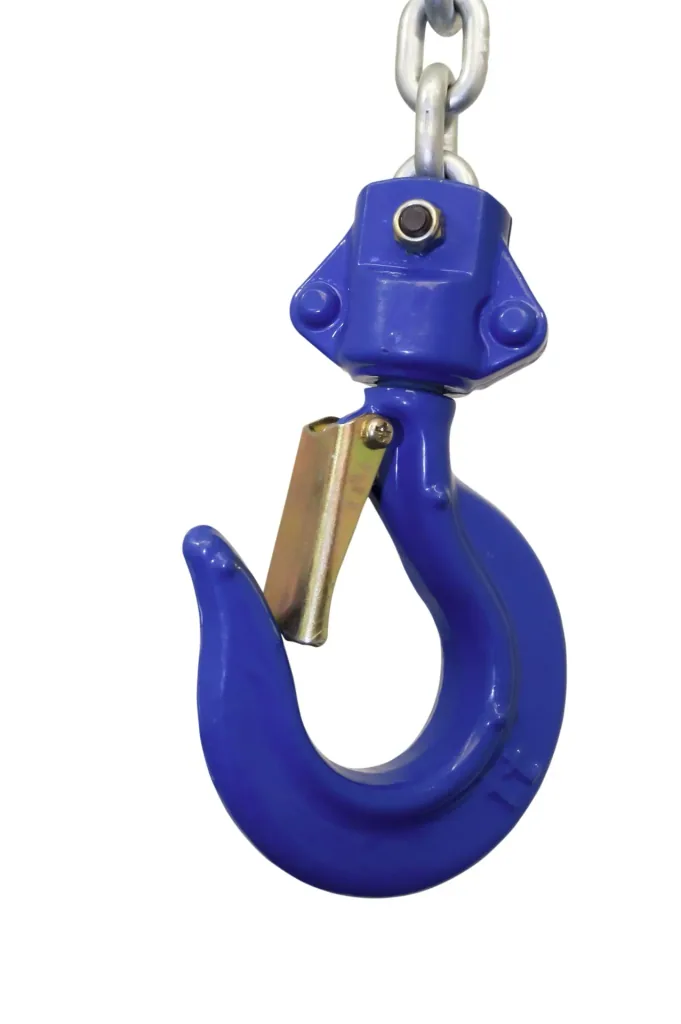

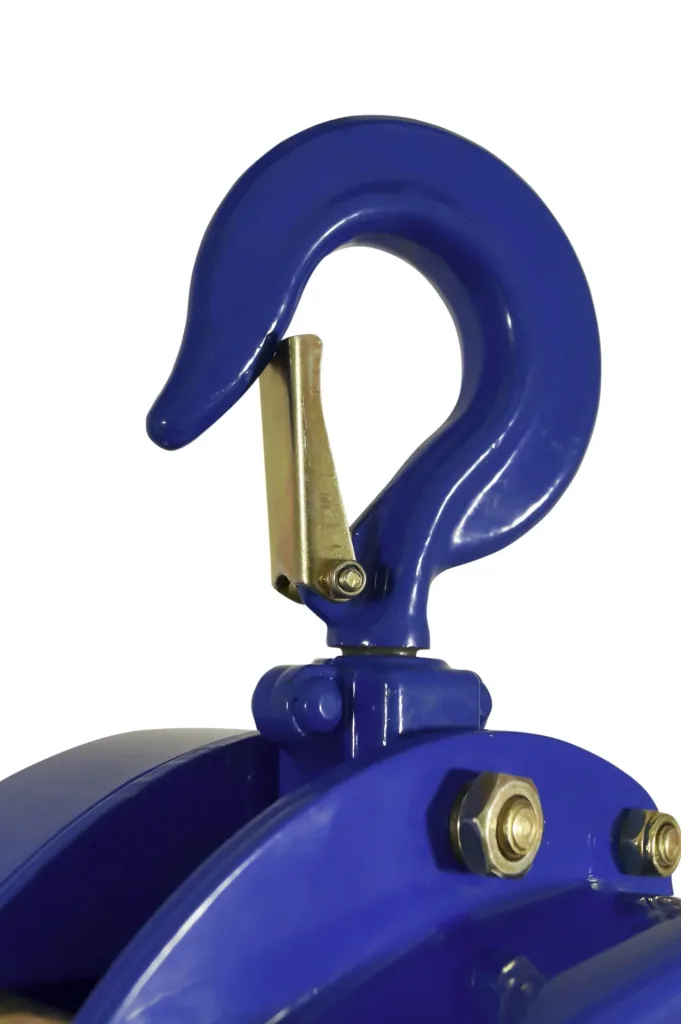

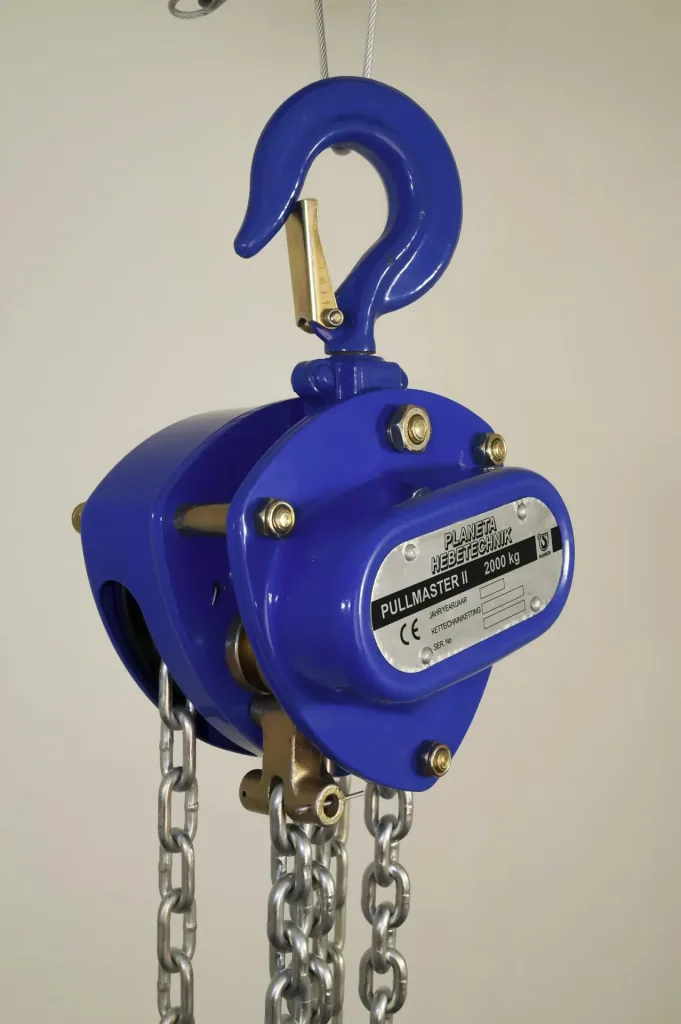

The PLANETA-PULLMASTER-II pulley block is the result of consistent further development of the PULLMASTER series. It impresses with its robust design and very compact dimensions. The asbestos-free safety brake always grips reliably and holds the load securely in any position. The forged carrying and load hooks, made of heat-treated tempered steel, are equipped with spring-loaded, galvanized hook locks.
| Weight | |
|---|---|
| Weight | 15.8 kg |
| Pulling force | |
| Pulling force | 33 daN |
| Reel travel | |
| Reel travel | 44.8 m |
| Overall height | |
| Overall height | 410 mm |
| Drive | |
| Drive | Manual |
| Lifting capacity | |
| Lifting capacity | 1,500 kg |
| External dimensions | |
| External dimensions | 181 x 147 x 38 mm |
| Number of chain strands | |
| Number of chain strands | 1 |
| Lifting height | |
| Lifting height | 3 m |
