Compressor Airpower 200/10/5 TY
Guaranteed Secure Checkout
| Item number | WF-979691 |
| Brand | Güde |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- Oil-free 1-cylinder piston compressor

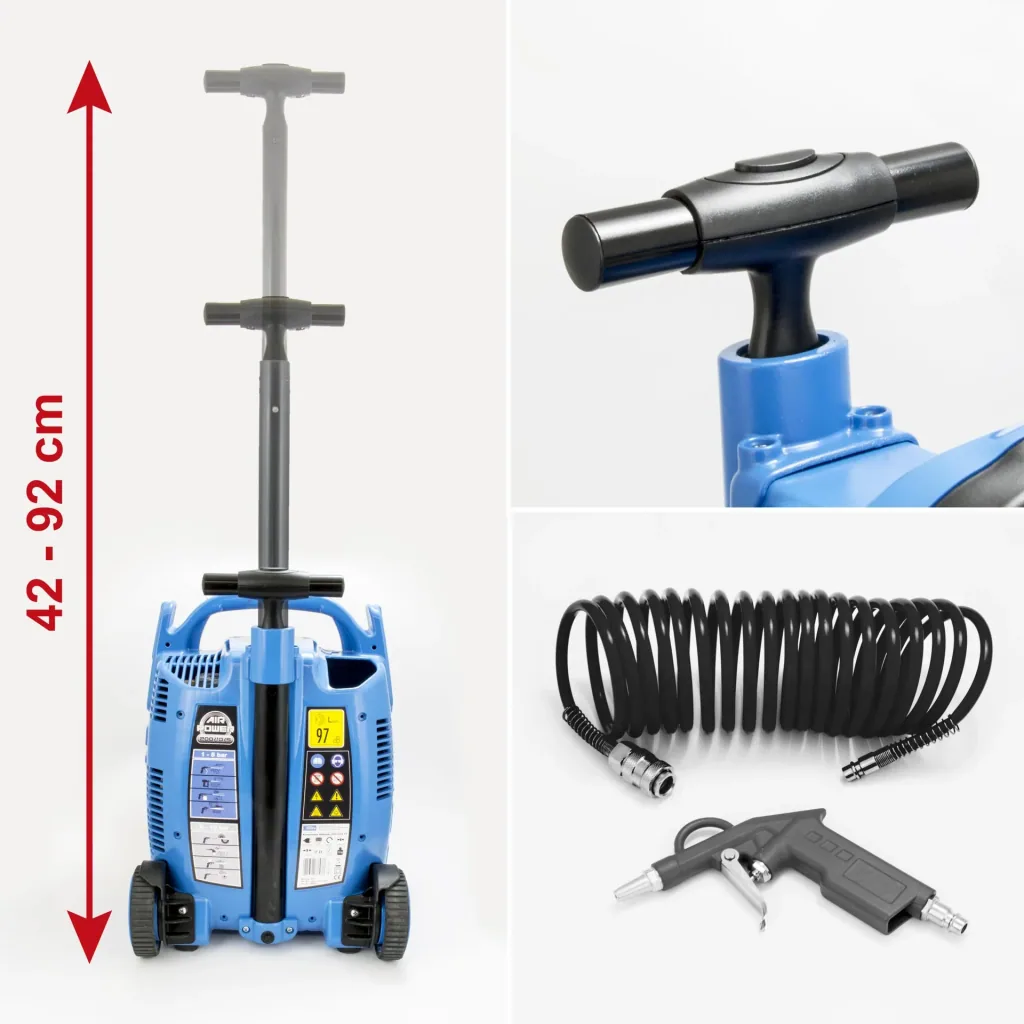

- Carrying handle
- Belt drive
- Pressure reducer with pressure gauge
- 1 compressed air coupling
- Safety valve and condensate drain screw
- Integrated pressure switch

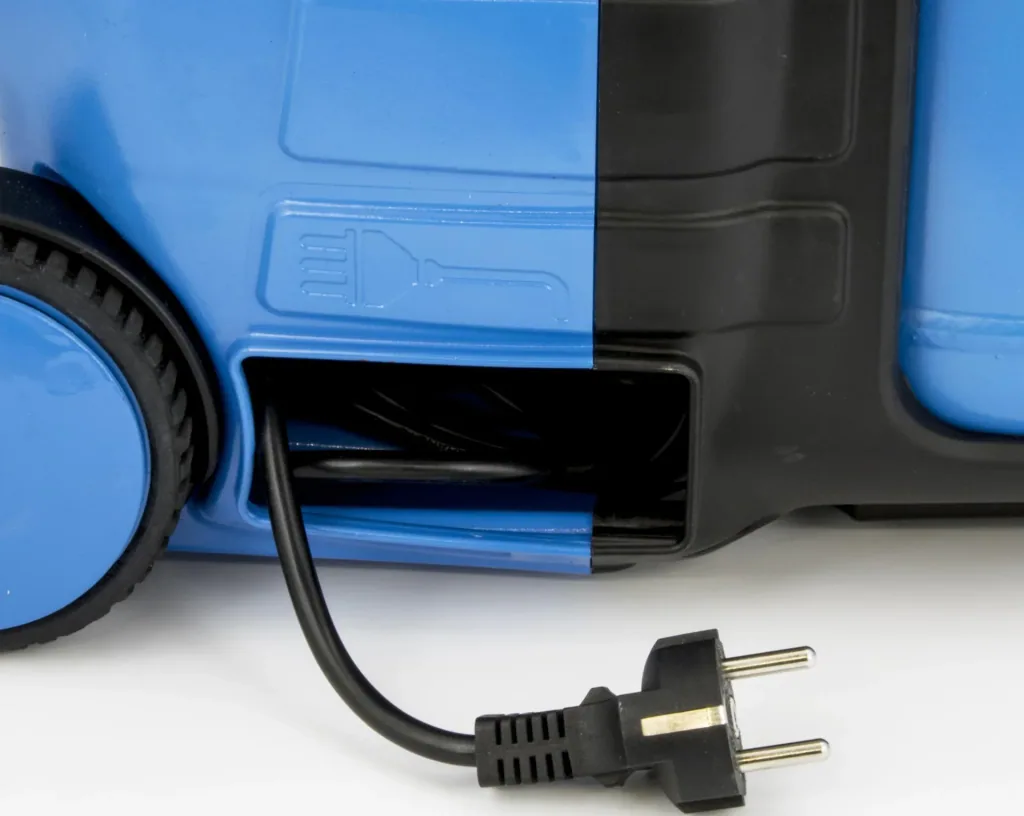

- Storage compartment for power cable

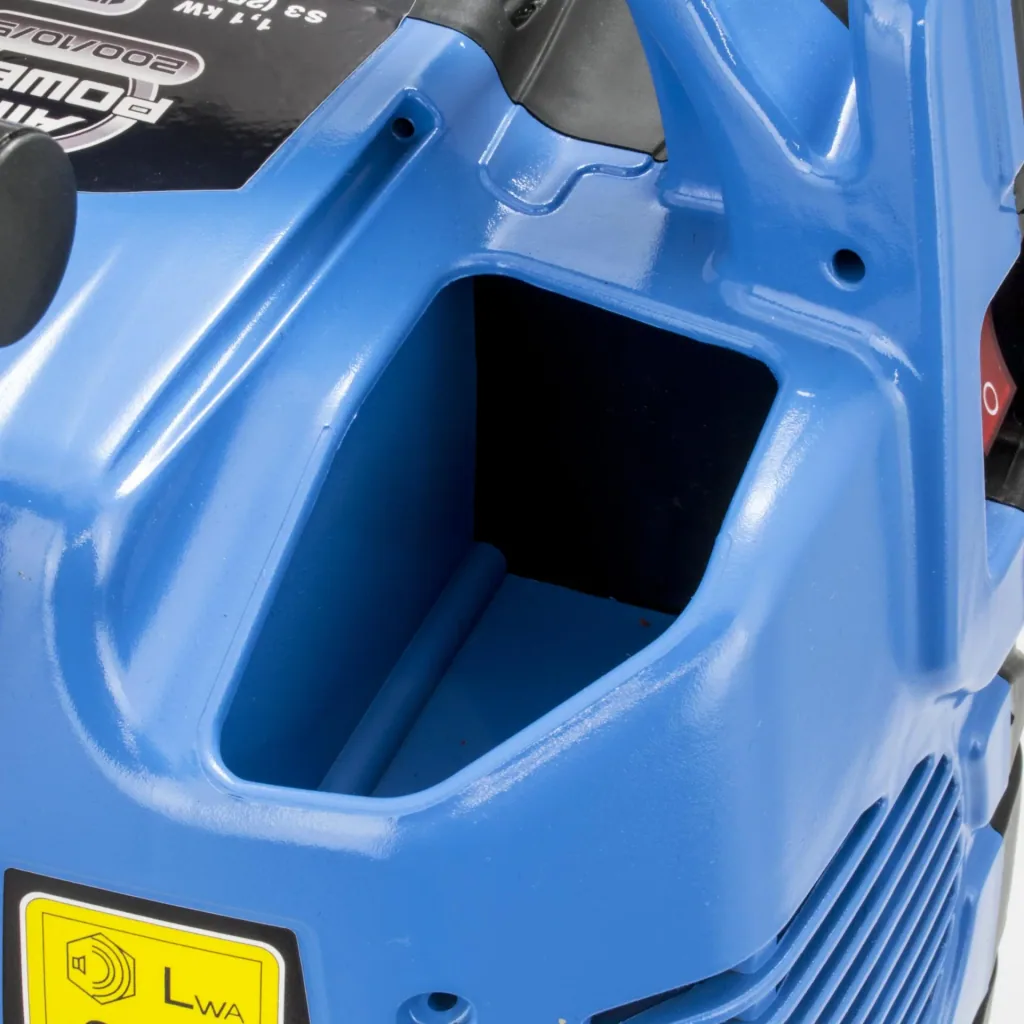

- Storage compartment
Technical data
- Mains voltage: 230 V
- Frequency: 50 Hz
- Motor power (P1): 1.1 kW
- Operating mode: S3 / 25%
- Motor speed: 3400 rpm
- Suction capacity: 200 l/min

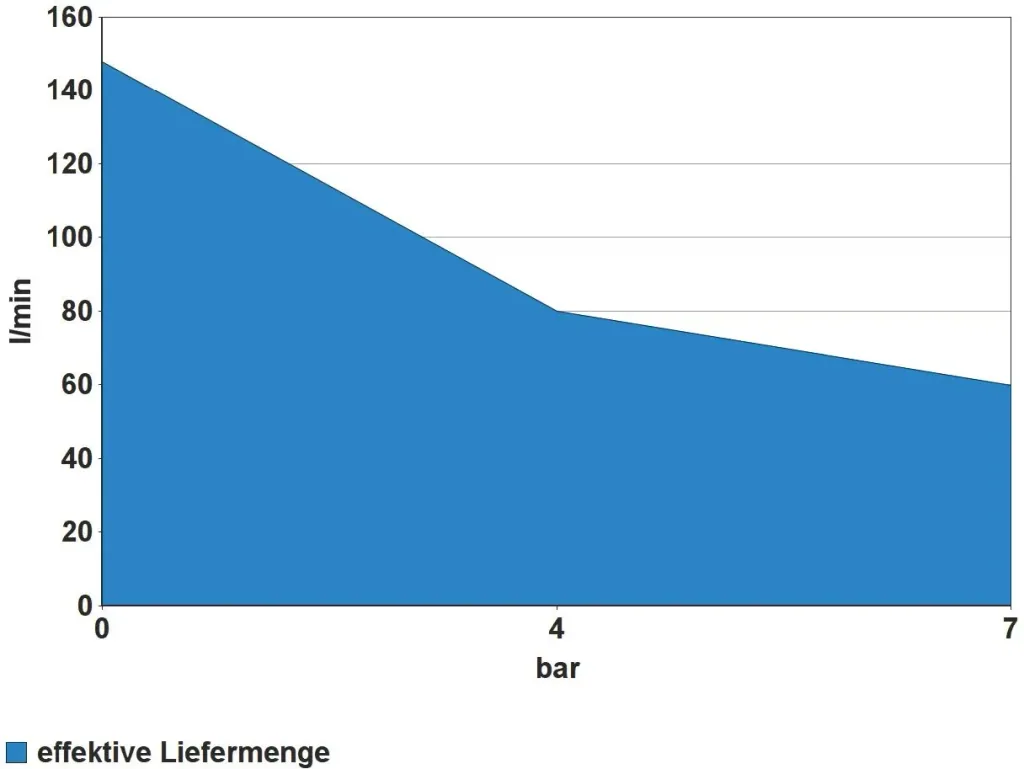

- Eff. delivery quantity 0 bar: 148 l/min
- Eff. Delivery volume 4 bar: 80 l/min
- Eff. delivery volume 7 bar: 60 l/min
- Max. Pressure: 10 bar
- Number of cylinders: 1
- Number of compressed air couplings: 1
- Pressure gauge: 1
- Noise level LWA: 97 dB
Dimensions
- 360 x 305 x 430 mm
- Length of connection cable: 170 cm
- Spiral hose: 5 m
- Tank capacity: 5 l
Scope of delivery

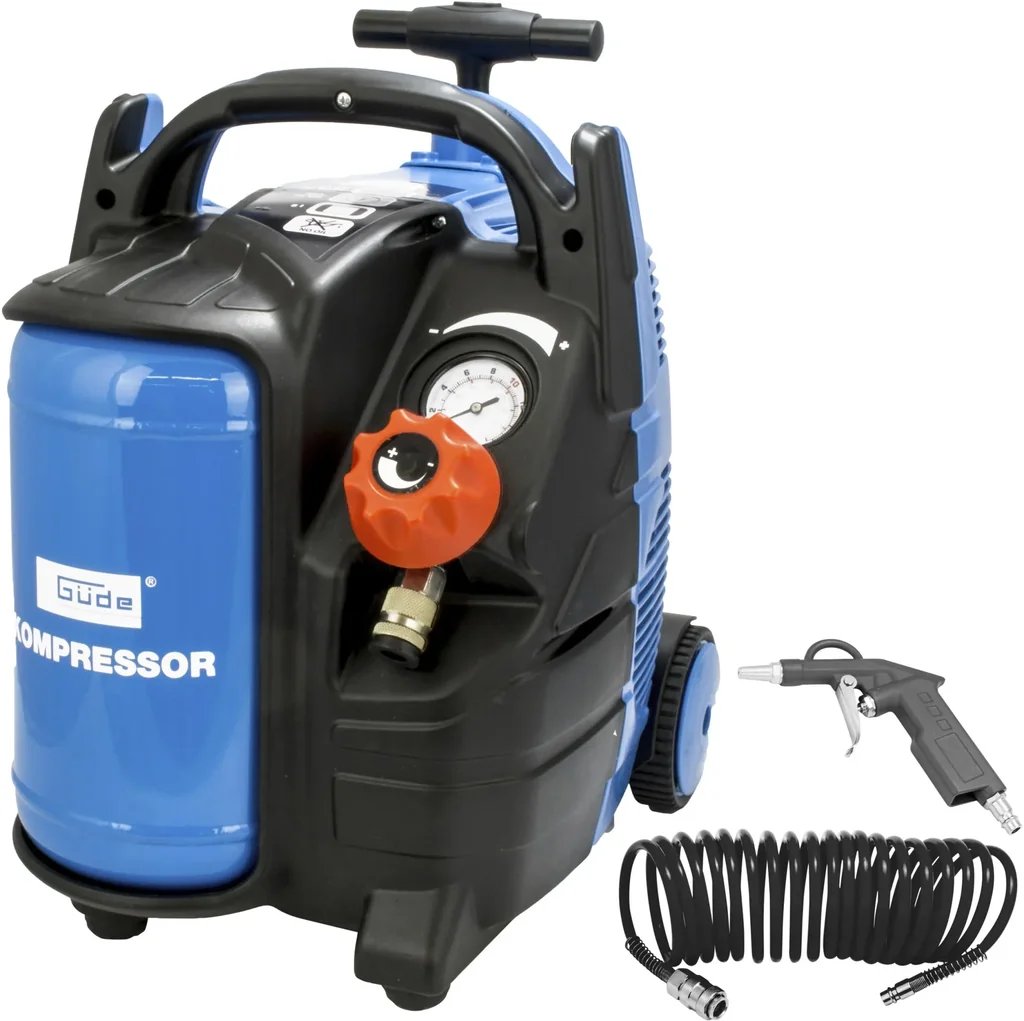

- 1 x Airpower 200/10/5 TY compressor
- 1 x Spiral hose
- 1 x Blow-out gun
| Drive | |
|---|---|
| Drive | 230V motor |
| Weight | |
| Weight | 9.8 kg |
| Carrying case | |
| Carrying case | no |
| External dimensions | |
| External dimensions | 360 x 305 x 430 |
EU-Responsible Name: GÜDE GmbH & Co. KG
EU-Responsible Street: Birkichstrasse
EU-Responsible House No: 6
EU-Responsible Post Code: 74549
EU-Responsible Town: Wolpertshausen
EU-Responsible Country: Germany
EU-Responsible Email: [email protected]
EU-Responsible Phone Number: +496871909137

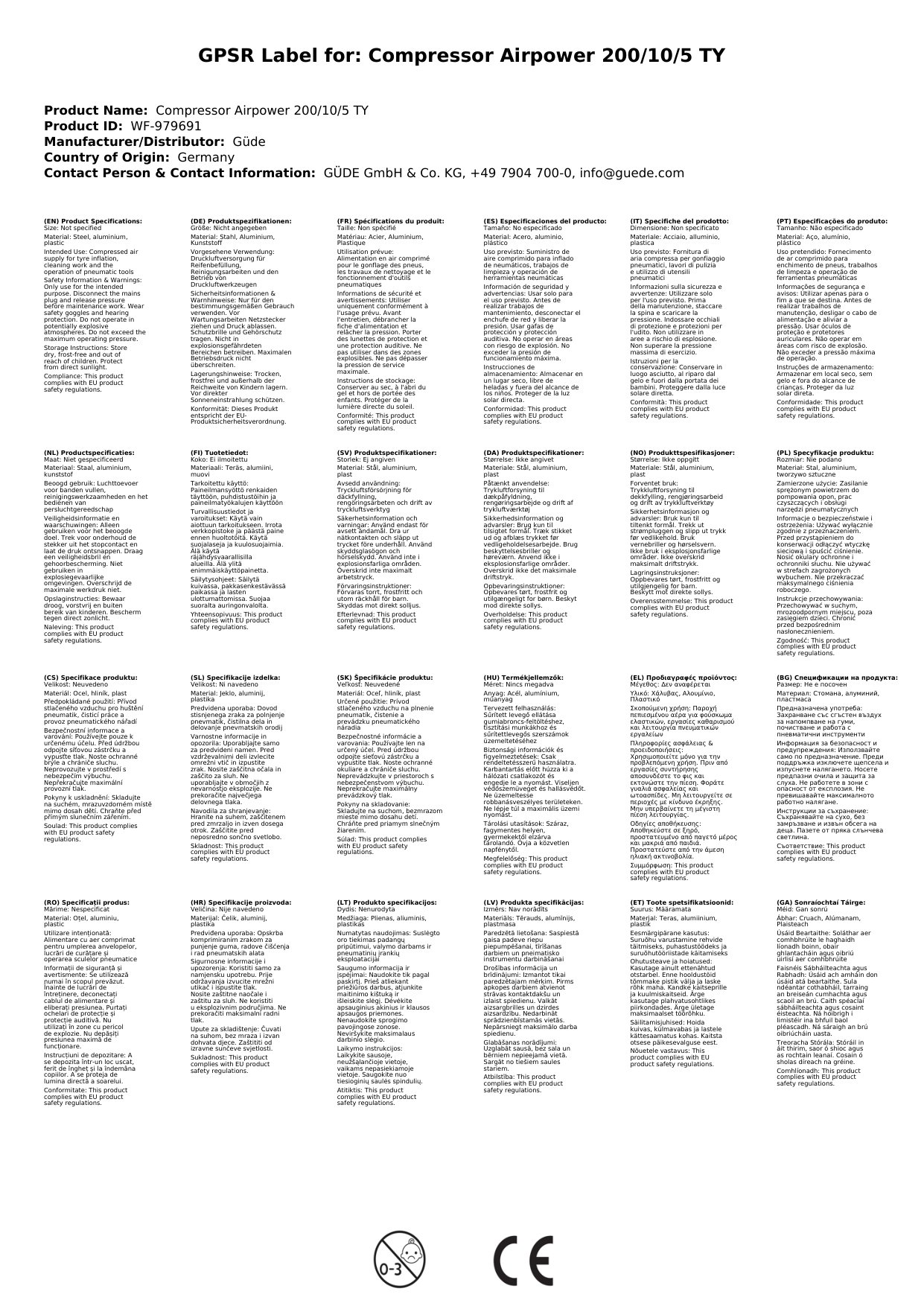

GPSR attachment:
Download
