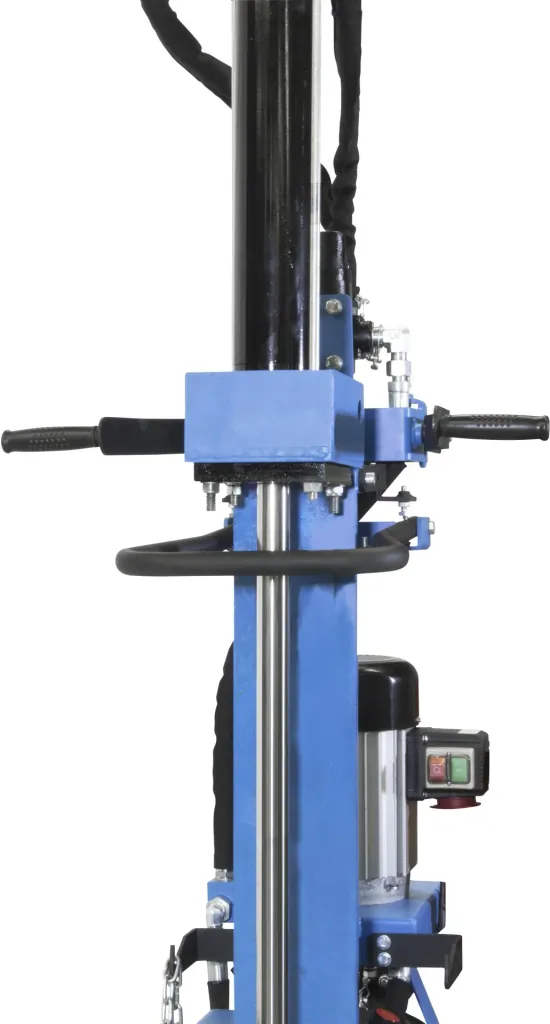

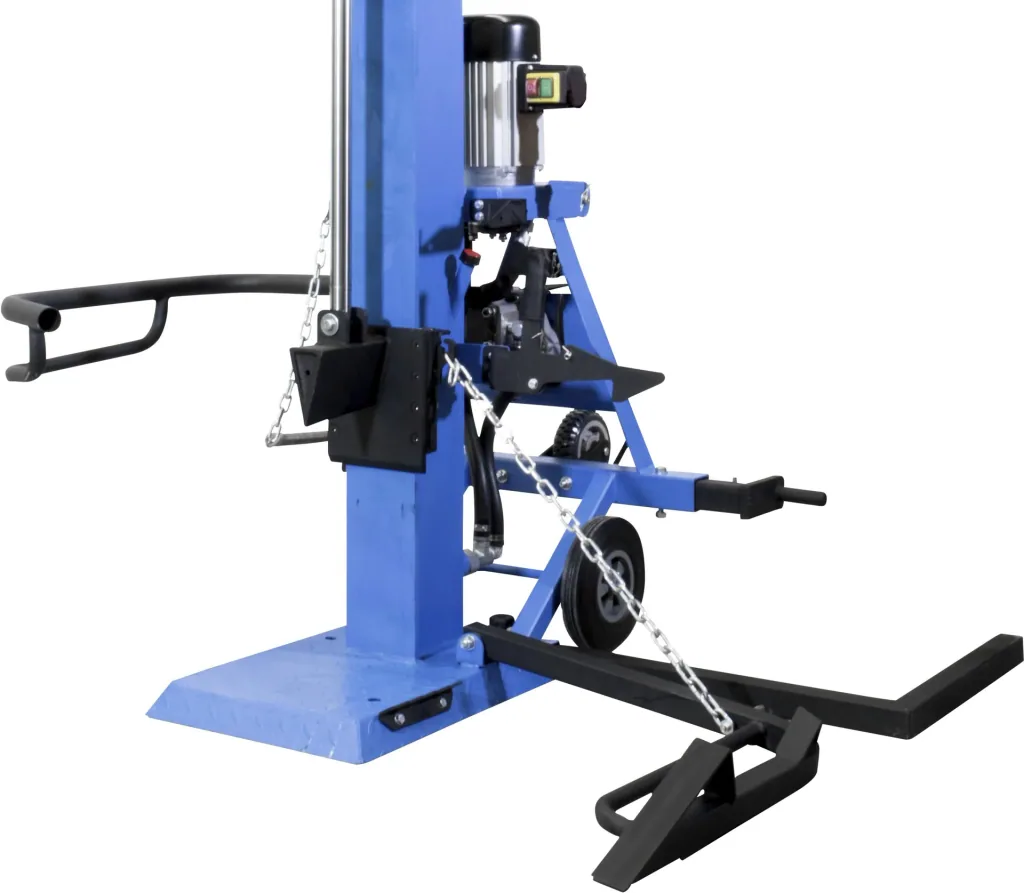

Log splitter GHS 1000/14TEZ-A
Guaranteed Secure Checkout
| Item number | WF-981500 |
| Brand | Güde |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- 2-hand safety operation
- Splitting knife made of special steel with a long service life
- Splitting material catch bracket on both sides
- Combined drive with 2 hydraulic pumps
- Powerful electric motor
- Switch-plug combination with phase inverter
- Alternative drive via PTO gearbox
- Three-point hitch CAT 1

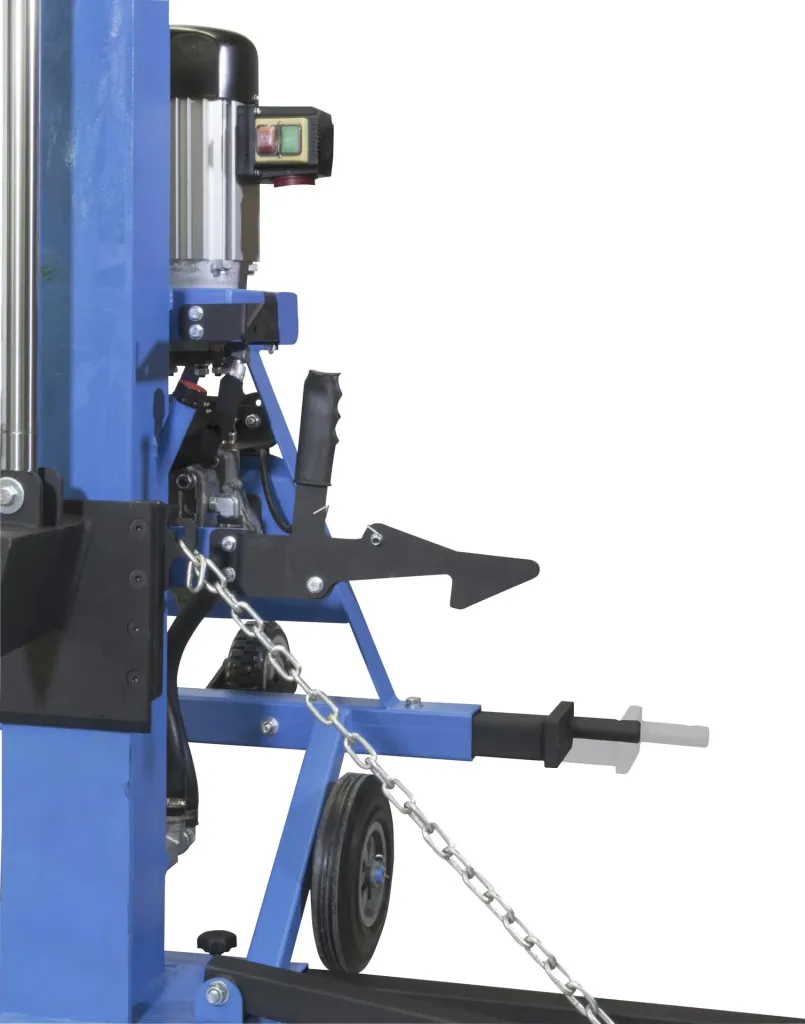

- Hydraulic-mechanical log lifter
- Splitting material securing device
- Two speed levels
- Support boom for secure stability.
- Automatic resetting of the splitting wedge with safety shutdown

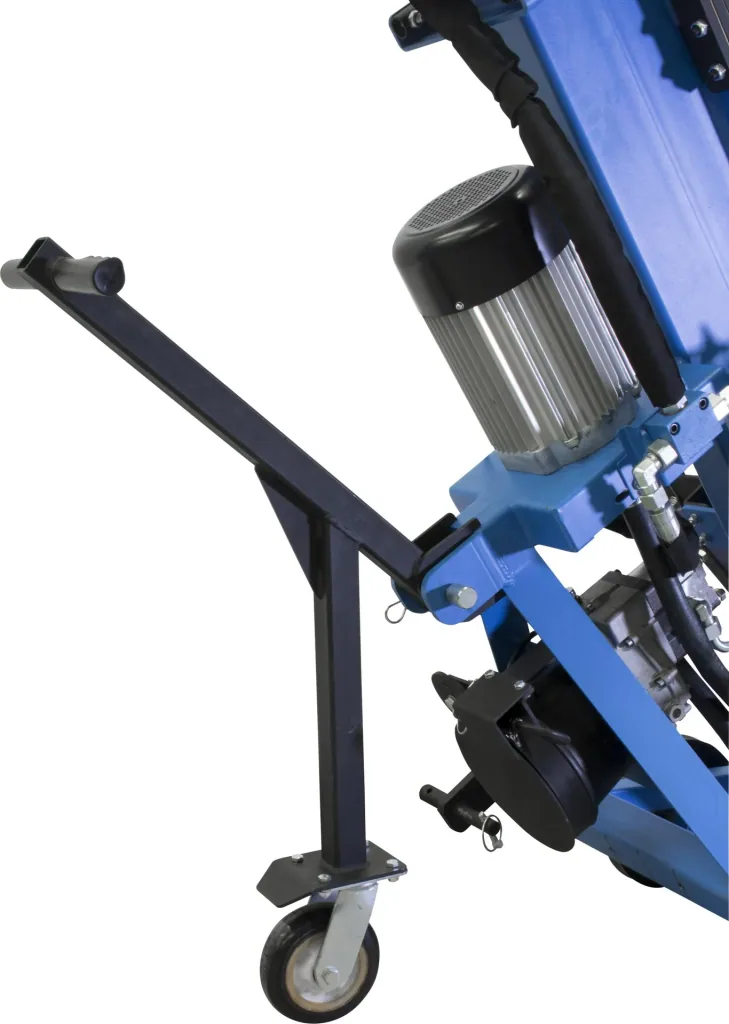

- Plug-in transport drawbar with steering roller
Technical specifications:
- Mains voltage: 400 V
- Frequency: 50 Hz
- Operating mode: S6/40%
- Protection class: F
- Protection type (IP): 54
- Engine power (P1): 4.3 kW
- Engine speed: 1420 rpm
- PTO speed: 540 min-1
- Tractor power: 18/25 kW / HP
- Hydraulic oil quantity: 10 l
- Hydraulic pressure: 250 bar
- Footplate WxD: 420 x 535 mm
- Type of hydraulic oil: HLP46
- Cylinder stroke: 960 mm
- Max. Splitting pressure: 14 t
- Splitting material length: 1000 mm
- Number of forward speeds: 2
- Forward speed: 0.20 / 0.038 m/s
- Reverse speed PTO: 0.07 m/s
- Forward speed PTO: 0.30 / 0.057 m/s
- Reverse speed: 0.047 m/s
- Max. Splitting material Ø: 430 mm
- Noise level LWA: 97 dB
- Three-point hitch: CAT. 1
Dimensions: L x W x H: 1150 x 1230 x 2500 mm
Weight: 232 kg
Scope of delivery:
- 1 x GHS 1000/14TEZ-A log splitter
- 1 x Operating instructions
| Colors | |
|---|---|
| Colors | blue |
| maximum splitting diameter | |
| maximum splitting diameter | 430 mm |
| maximum splitting length | |
| maximum splitting length | 1,000 mm |
| splitting force (tons) | |
| splitting force (tons) | 14 t |
| external dimensions | |
| external dimensions | 1,150 x 1,230 x 2,500 mm |
| voltage | |
| voltage | 400 |
| IP protection class | |
| IP protection class | IP54 |
| weight | |
| weight | 232 kg |
| drive | |
| drive | combined drive with 2 hydraulic pumps |
| return speed | |
| return speed | 0.047 m/s |
| forward speed | |
| forward speed | 0.2 m/s |
| protection class | |
| protection class | F |
