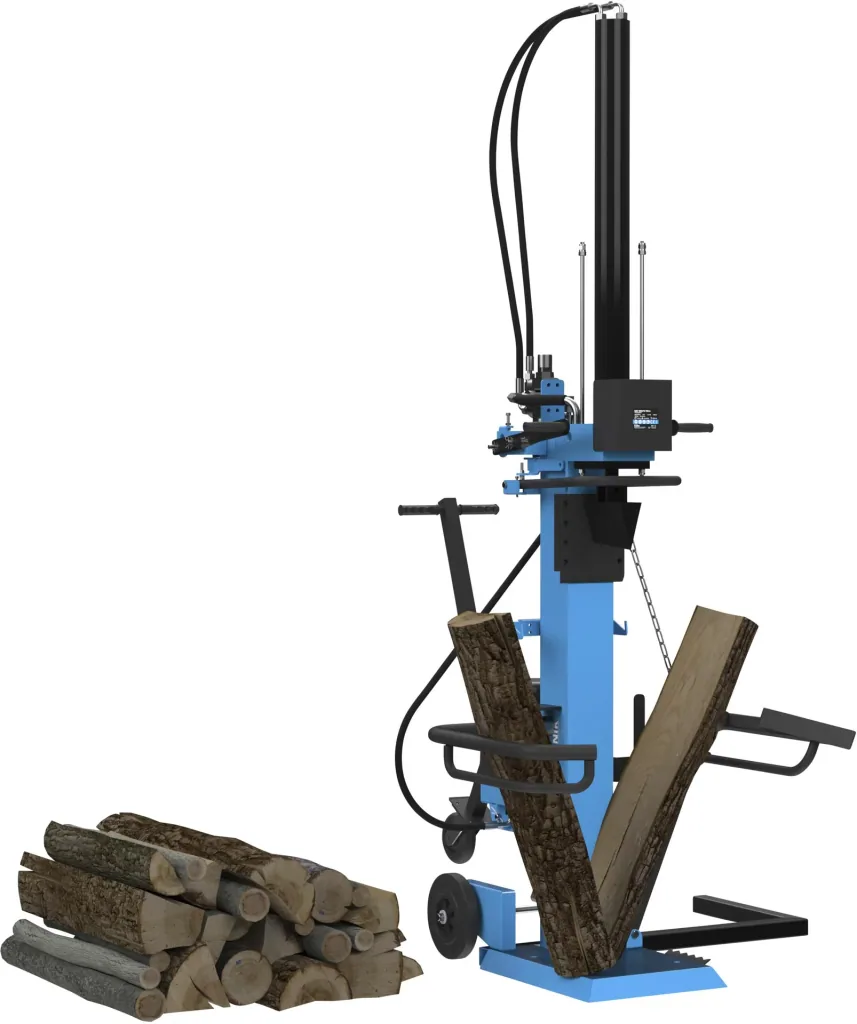

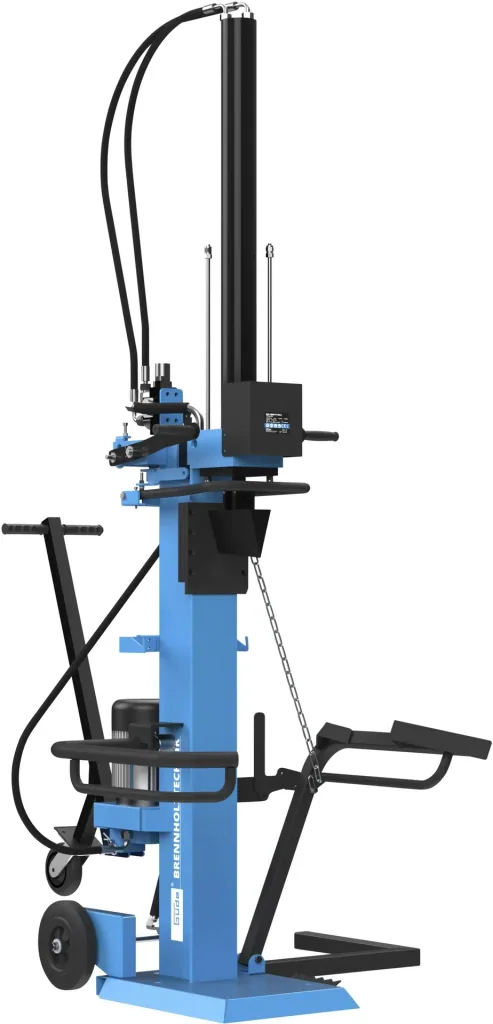

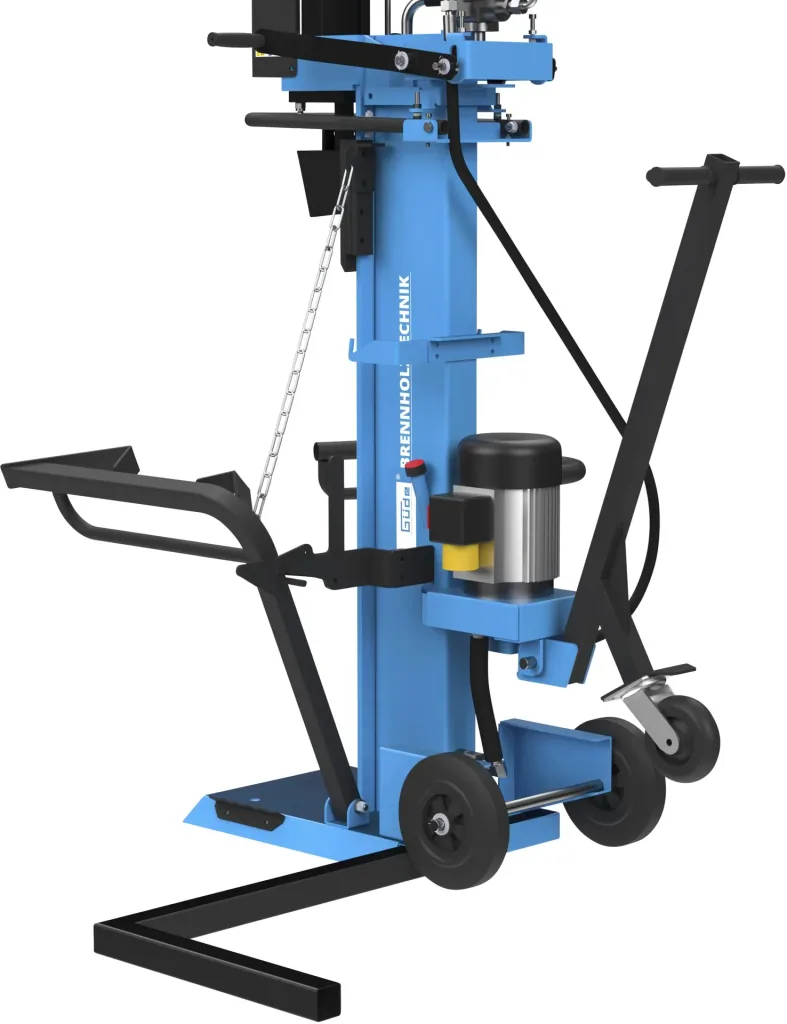

Log splitter GHS 1000/10 TE-A

• Log splitter according to the latest quality and safety standards

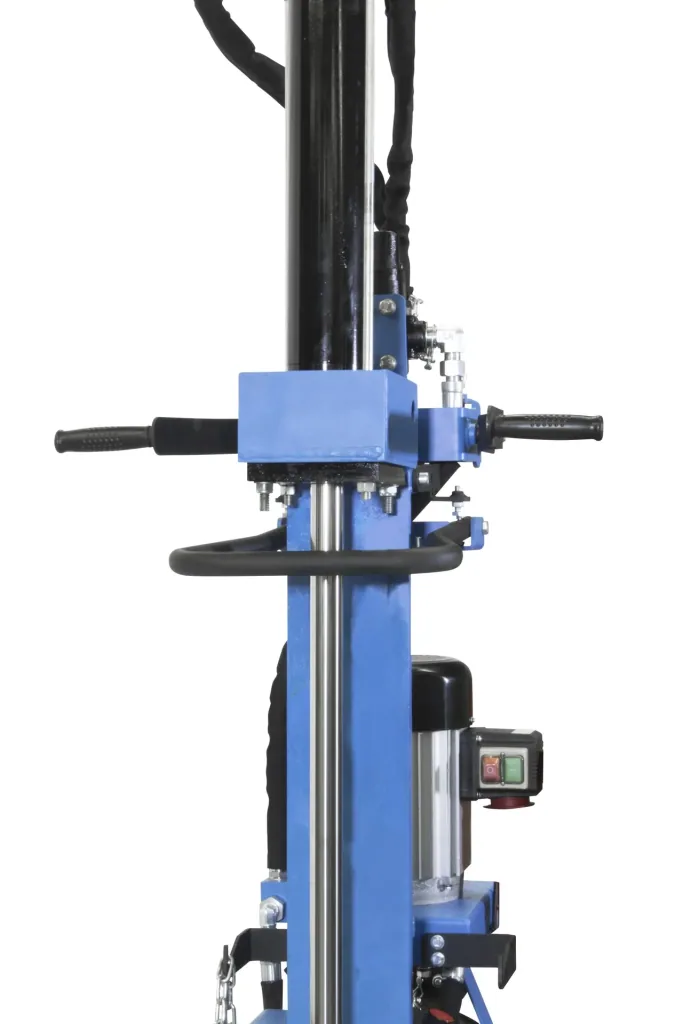

• Two-hand safety operation
• Splitting blade made of special steel with a long service life

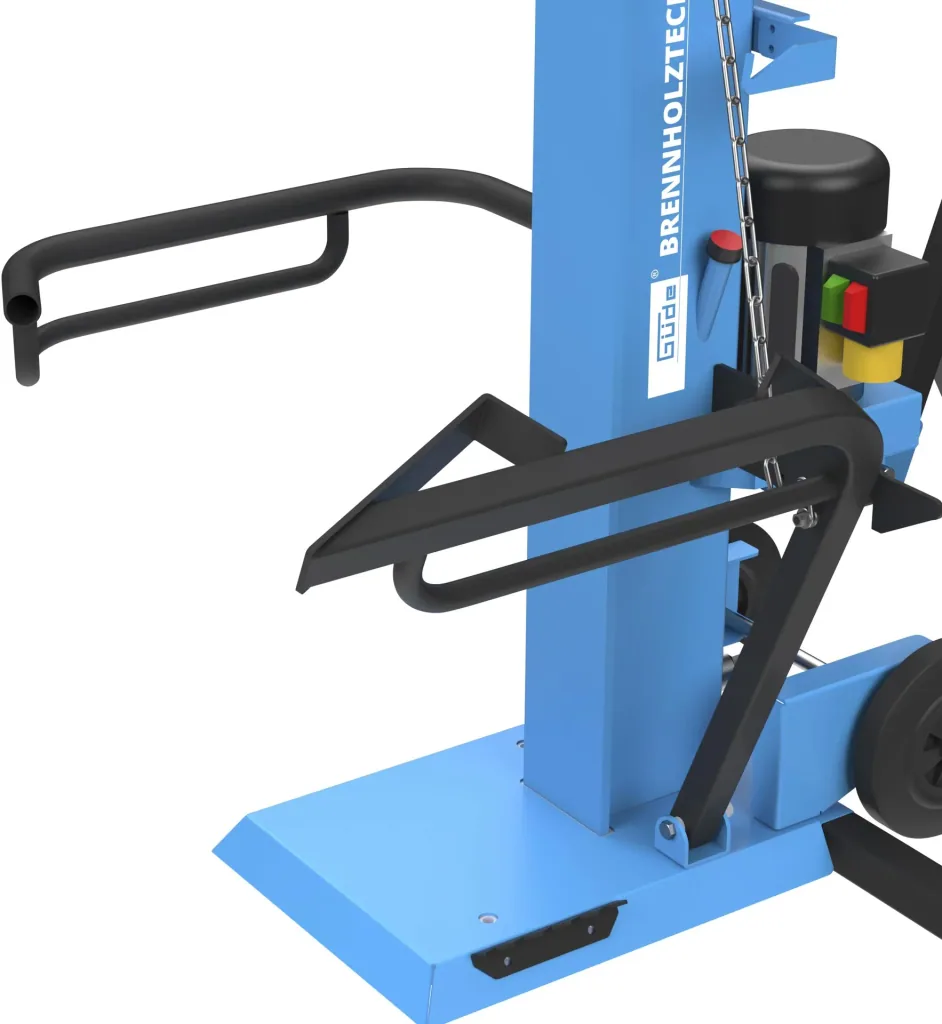

• Splitting material catch bracket on both sides
• Highly efficient hydraulic pump
• Powerful electric motor
• Switch-plug combination with phase inverter
• Hydraulic-mechanical log lifter
• Splitting material securing device
• Two speed levels
• Support boom for secure support
• Automatic resetting of the splitting wedge with safety shutdown

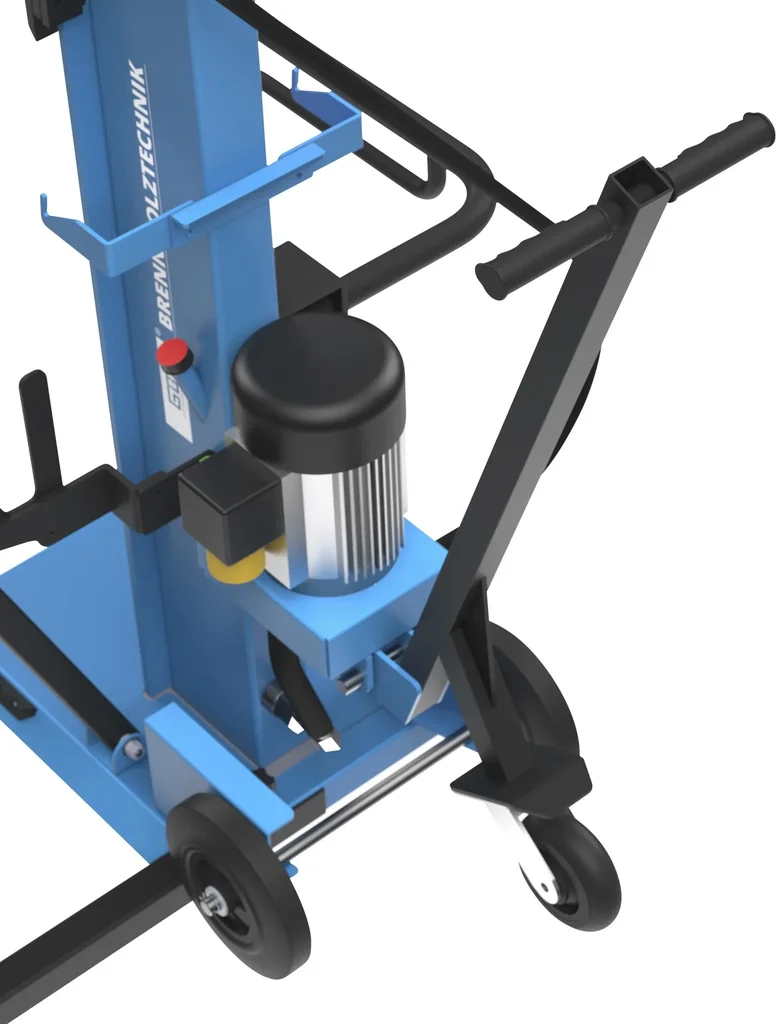

• Plug-in transport drawbar with swivel caster

The GHS 1000/10 TE-A log splitter has been developed according to the latest quality and safety standards. The log splitter is ideal for splitting meter-long logs on domestic land. The powerful 3.7 kW electric motor powers a highly efficient hydraulic pump and a precisely graduated control valve, allowing the operator to choose between two feed speeds. The hydraulic-mechanical log lifter effortlessly positions even heavy logs, ensuring back-friendly and comfortable splitting. A support arm ensures stability during the lifting process. The log securing device allows the log to be secured before the splitting process without the need for inconvenient holding. The long splitting knife is made of partially hardened special steel for a long service life. The automatic resetting of the splitting wedge with integrated safety shut-off provides optimal protection and ensures efficient and fatigue-free splitting. The 2-hand safety operation, the on-off switch, and the double-sided splitting material catch bracket are further measures for safe and effective work.

Technical data:

• Mains voltage: 400 V
• Frequency: 50 Hz
• Operating mode: S6 40%
• Protection class: F
• Protection type (IP): IP54
• Motor power (P1): 3.7 kW
• Motor speed: 1420 rpm
• Hydraulic oil quantity: 8.0 l
• Hydraulic pressure: 230 bar
• Foot plate WxD: 415 x 515 mm
• Type of hydraulic oil: HLP 46
• Cylinder stroke: 960 mm
• max. Splitting pressure: 10 t
• Splitting material length: max. 1000 mm
• Max. splitting material length (without
• splitting cross): 1000 mm
• Number of forward speeds: 2
• Forward speed: 0.18 fast / 0.037 slow m/s
• Return speed: 0.047 m/s
• Max. Splitting material Ø: 400 mm
• Noise level LWA: 97 dB
• Three-point hitch: no

Dimensions: L x W x H: 1370 x 1100 x 2500 mm

Weight: 188 kg

Scope of delivery:

• 1 x GHS 1000/10 TE-A log splitter
• 1 x Operating instructions
