PTO pump set ZWP 180-20
Guaranteed Secure Checkout
| Item number | WF-982036 |
| Brand | Güde |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- PTO pump with safety chain for mounting on a tractor or tractor
- Self-priming
- Sturdy construction made of cast steel
- For irrigating fields, arable land or for the use of herbicides and as a fertilizer sprayer
- Can be used for cleaning large agricultural machinery
- Pumping of non-corrosive liquids is possible
The PTO pump set 180-20 is ideal for use in agriculture.
Hose connection
- Suction side: External thread: M26x2 | Internal thread: 3/4"
- Output side: External thread: M36x2 | Internal thread: 1"
Technical data
- Connection: PTO shaft
- Maximum pressure: 20 bar
- Delivery volume: 10800 l/h
- Maximum delivery head: 5 m
- Maximum suction head: 5 m
- Length of pressure hose: 7 m
- Length of suction hose: 3 m
Dimensions: approx. (L x W x H) 180 x 170 x 185 mm
Material: Metal / Plastic
Weight: 15.4 kg

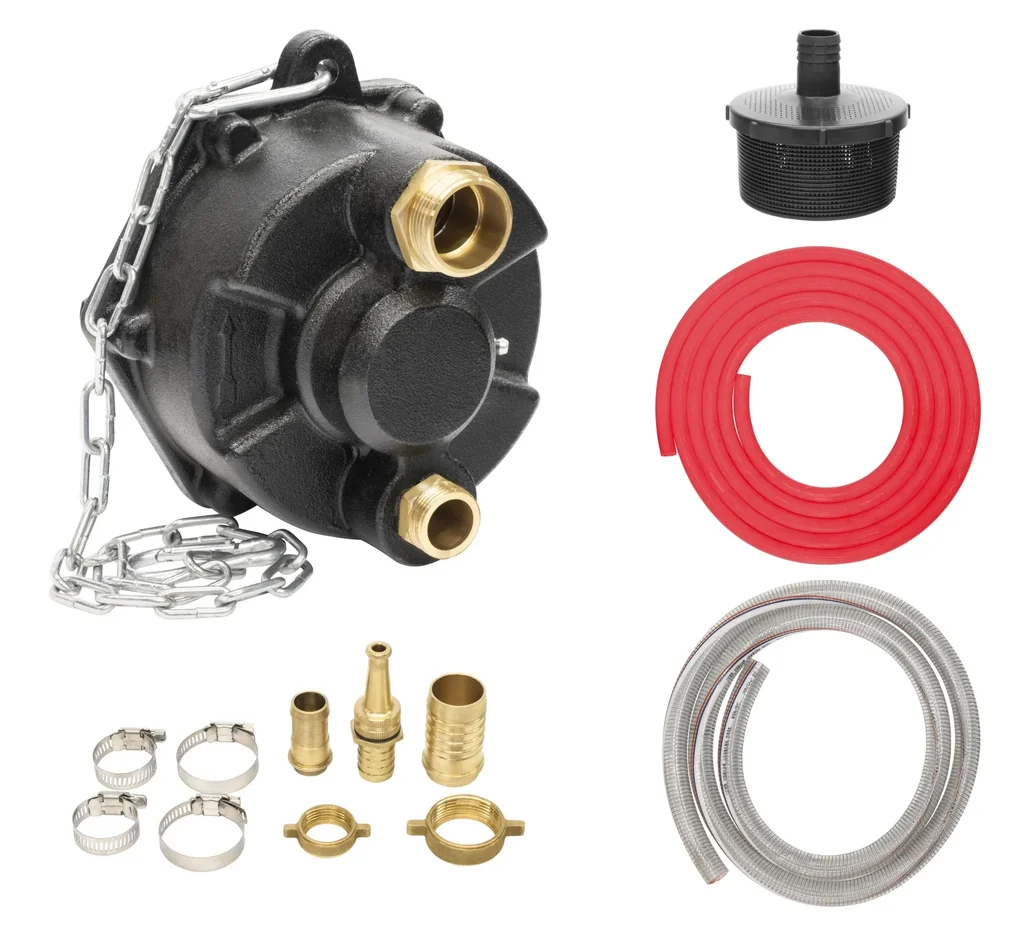

Scope of delivery

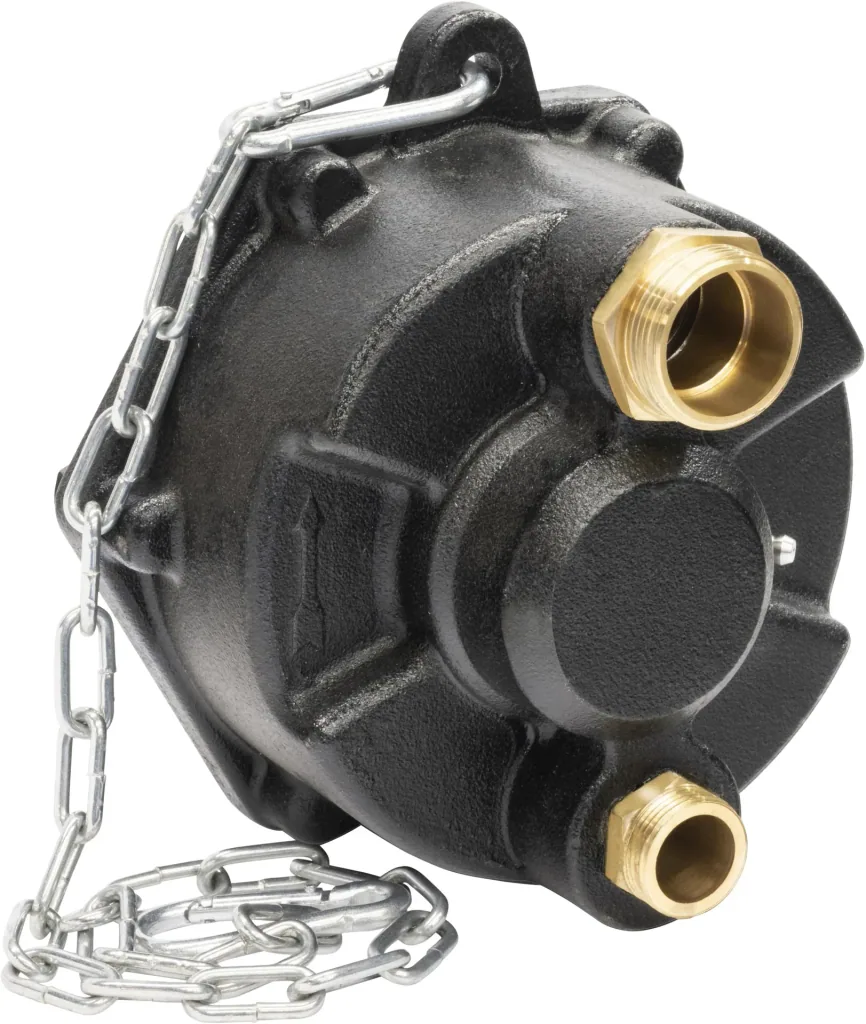

- 1 x PTO pump with safety chain

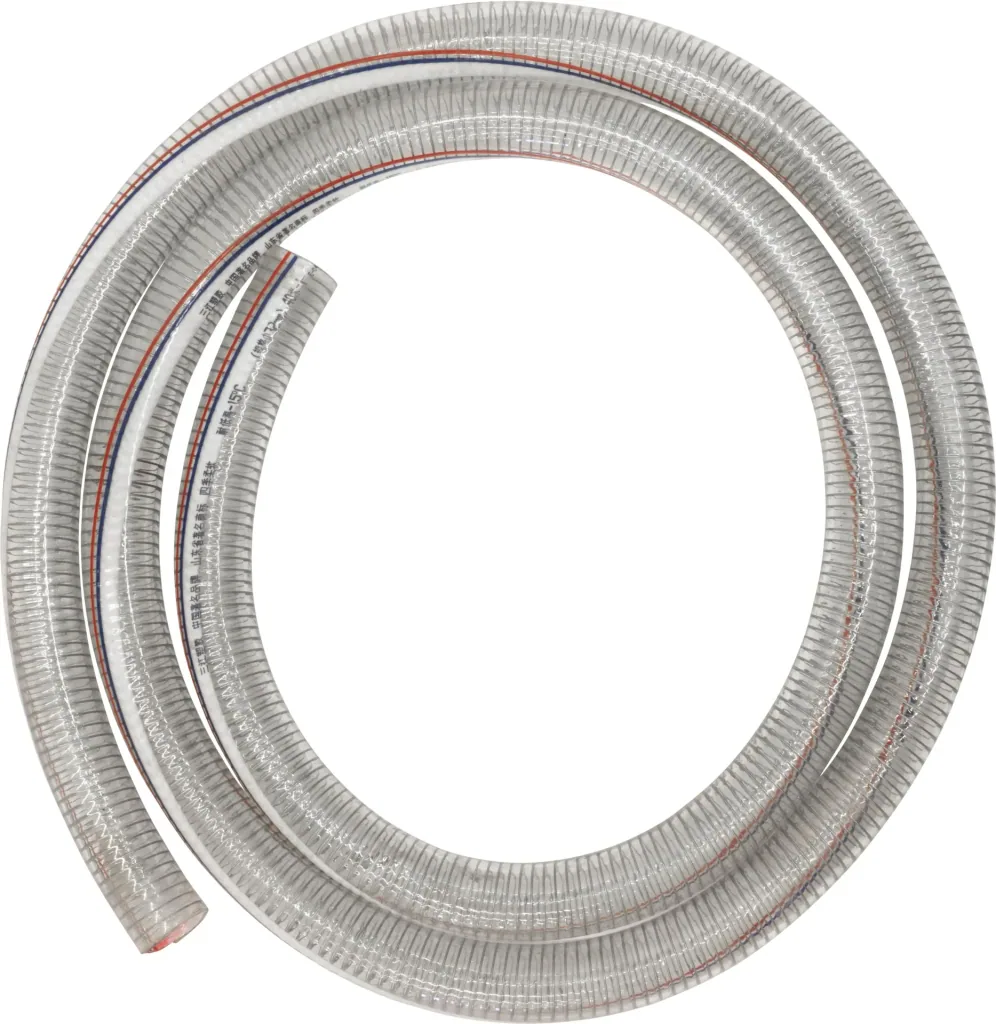

- 1 x Suction hose 3M - 1.2 inch

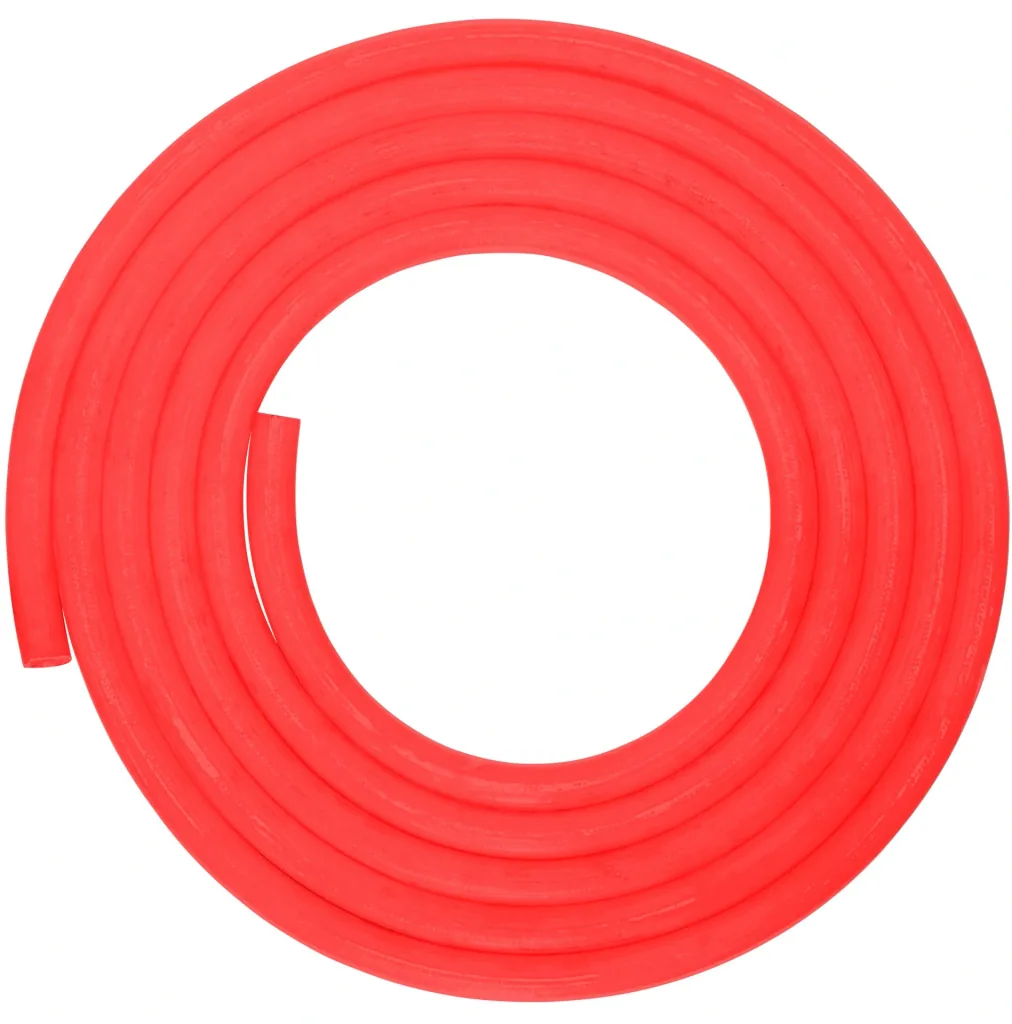

- 1 x pressure hose 7M - 1 inch

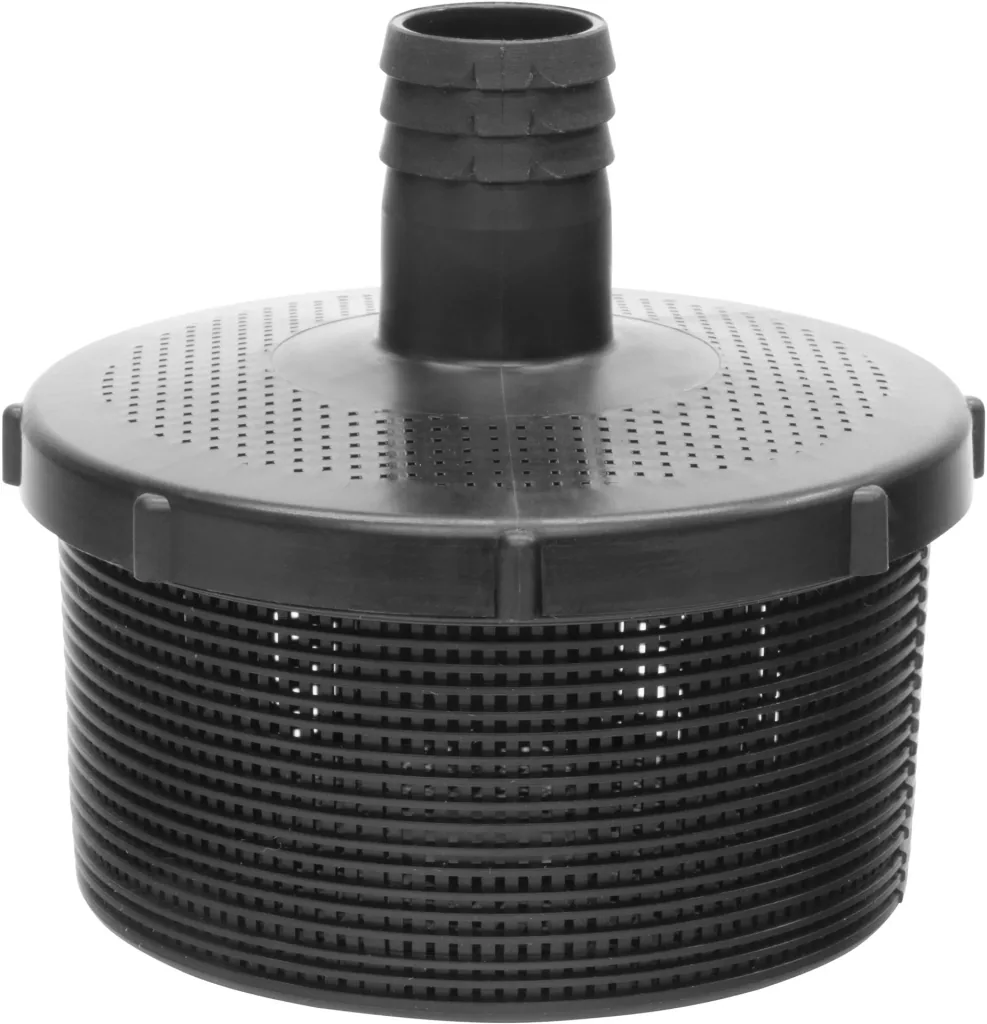

- 1 x suction basket

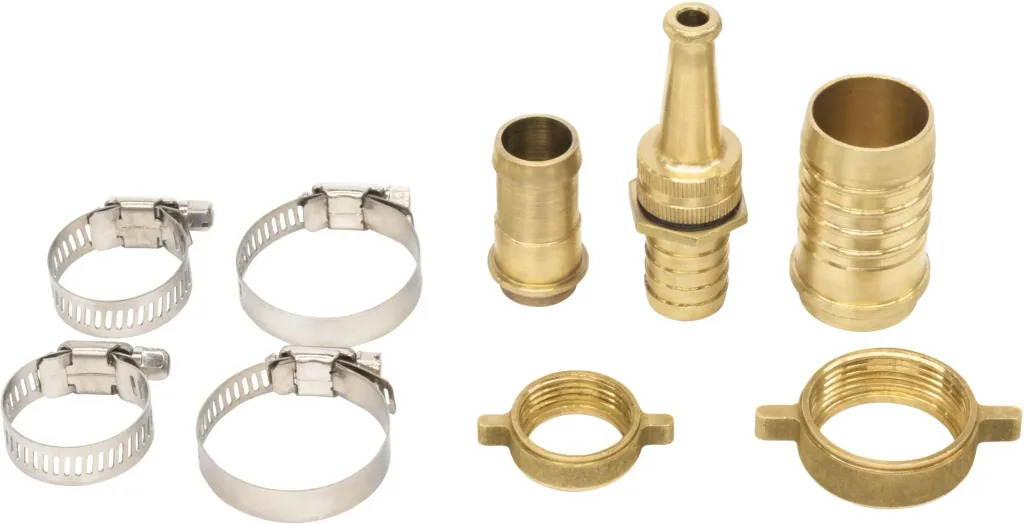

- 1 x hose clamps
- 1 x spray nozzle
- 1 x connection piece
| Weight | |
|---|---|
| Weight | 15.4 kg |
| Material | |
| Material | Plastic |
| Material | Metal |
| External dimensions | |
| External dimensions | 180 x 170 x 185 mm |
EU-Responsible Name: GÜDE GmbH & Co. KG
EU-Responsible Street: Birkichstrasse
EU-Responsible House No: 6
EU-Responsible Post Code: 74549
EU-Responsible Town: Wolpertshausen
EU-Responsible Country: Germany
EU-Responsible Email: [email protected]
EU-Responsible Phone Number: +496871909137

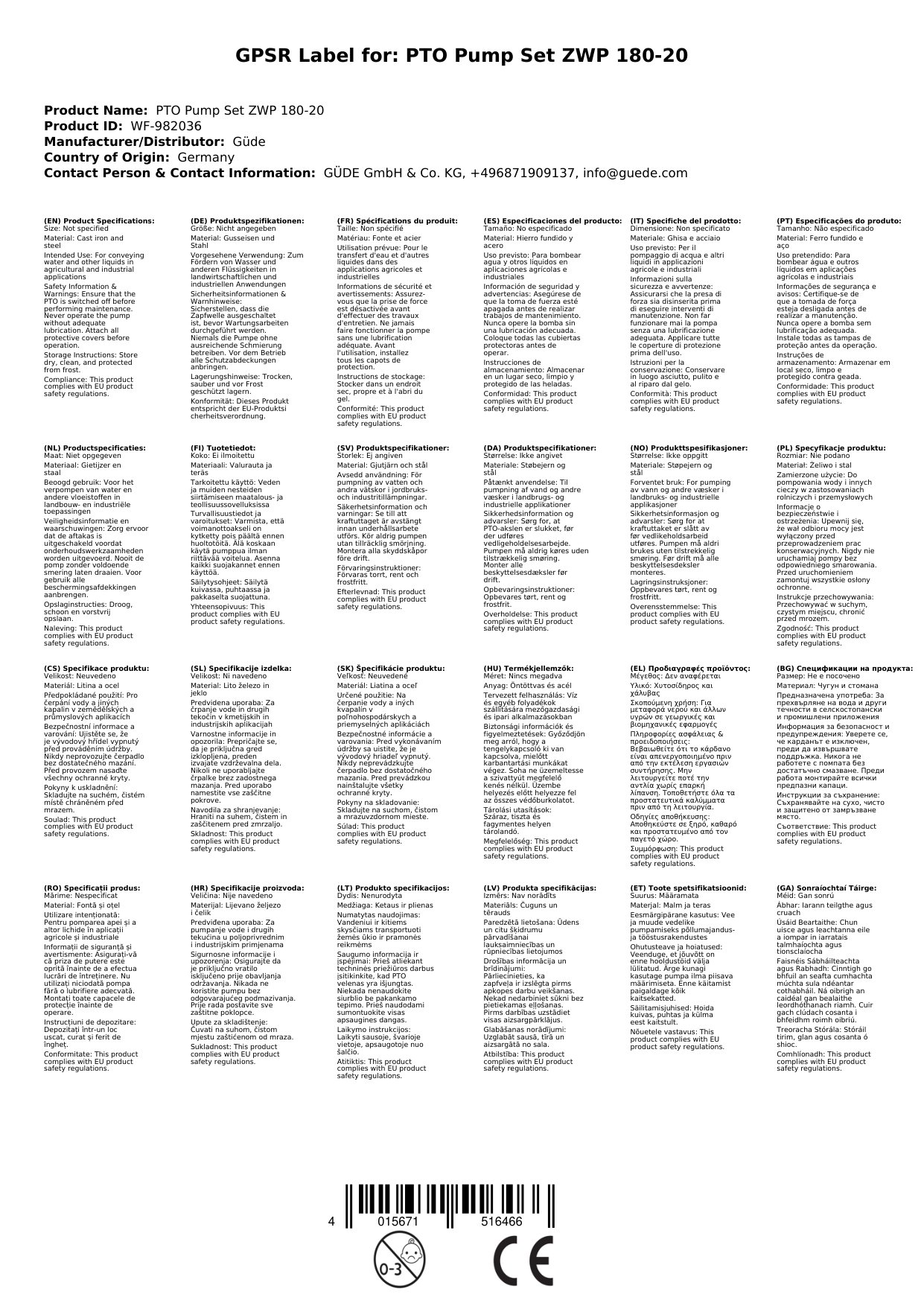

GPSR attachment:
