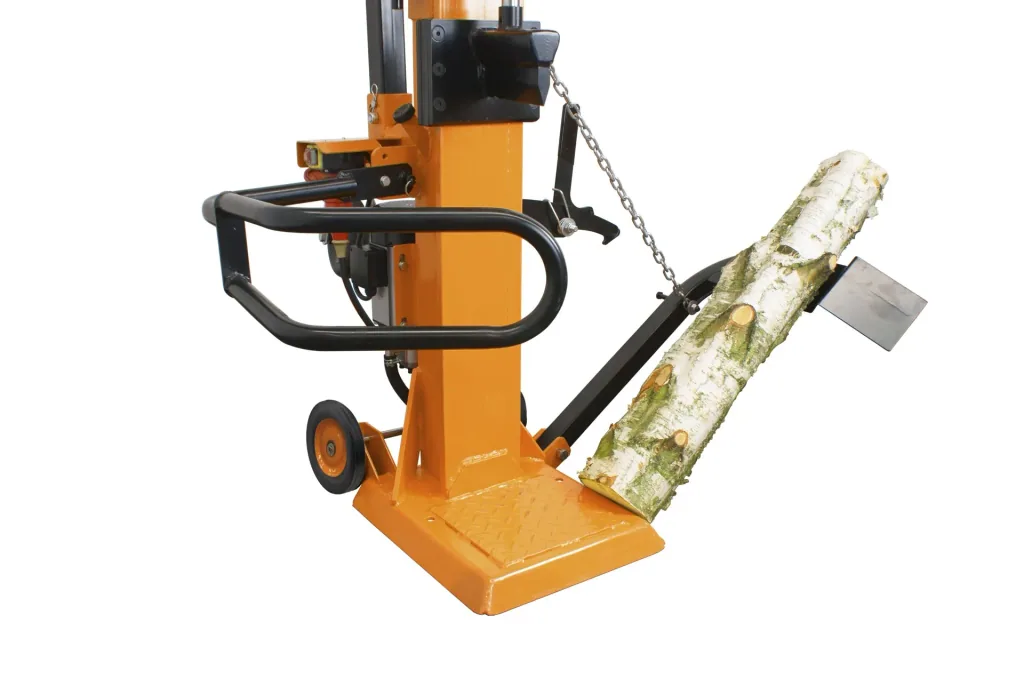

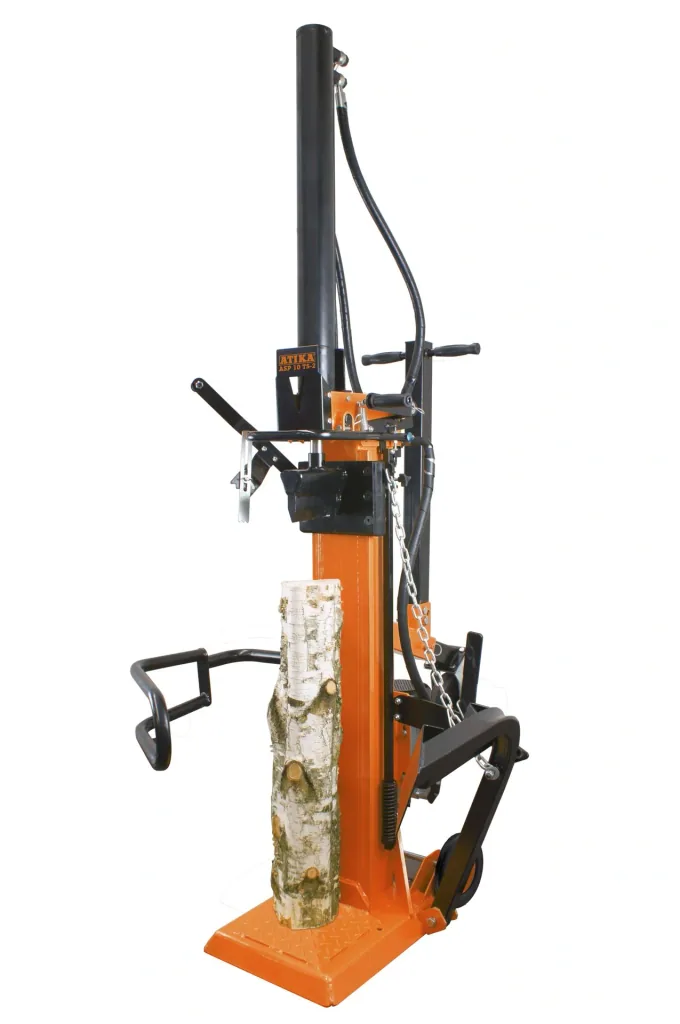

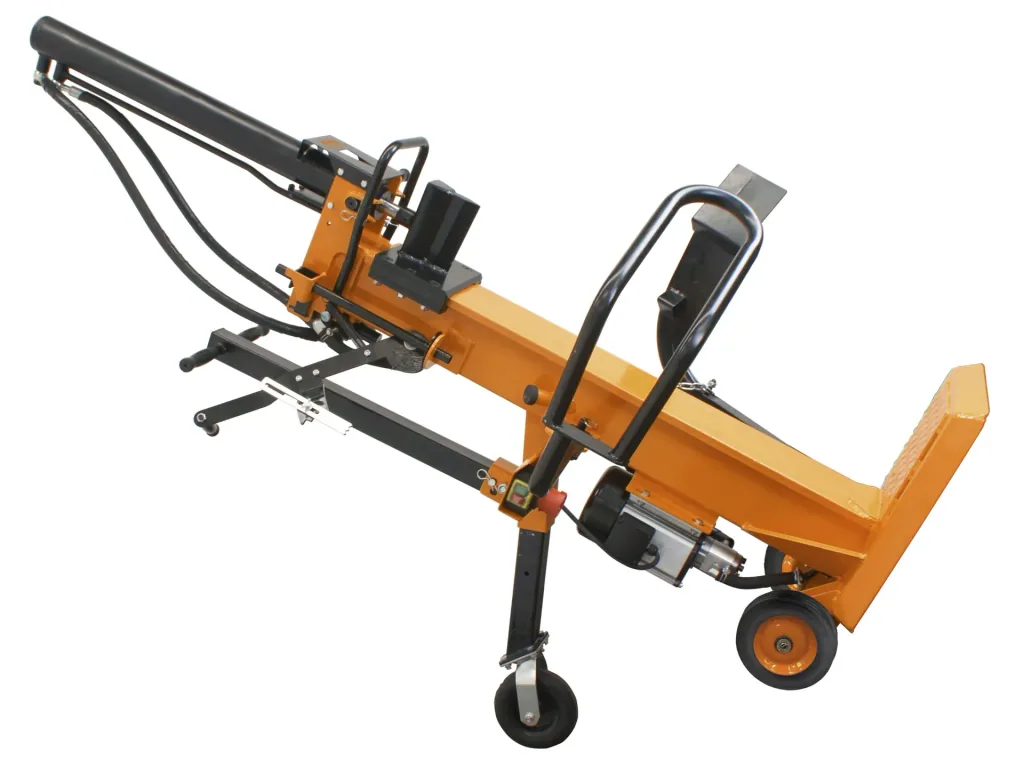

Firewood splitter "ASP 10 TS-2"
About this item:
- 10 t splitting force
- 400V three-phase motor
- Max 1040 mm log length
- Safety guard with storage
- 172.5 kg robust build
| Item number | WF-982301 |
| Brand | Altrad Lescha Atika |
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choiceThere are no questions yet
Ask a question to learn more about the product
0.0
- Robust construction and powerful three-phase motor for excellent splitting results
- Safety requirements according to the latest European standards
- Back-friendly and easier work thanks to the low base plate and log lifter
- Greater safety when splitting thanks to the locking claw and protective arm
- Particularly suitable for meter-long logs: Comfortable, fast, safe, and effortless processing
Your fireplace needs plenty of firewood. The powerful electric log splitter from ATIKA ensures exactly that.
Why you should get it: The user-friendly "ASP 10 TS-2" firewood splitter is the right entry-level model for you if you want to split wood for your fireplace quickly and without much effort. The device has a splitting force of 10 t, so it's a real powerhouse. In addition to its stable construction, the device impresses with its safety standards.
You can easily operate the ATIKA splitter with two hands. It features a safety guard that also serves as a wood storage rack. When you want to put the device away, the wheels and additional handle make this easy.
Nailed down: It couldn't be safer or more efficient: With this log splitter from ATIKA, you'll have your firewood ready in no time. Splitting wood is now very convenient with this powerful electric tool!
Technical specifications:
- With 2 forward speed levels
- Smooth two-hand safety operation
- Easy to move thanks to the chassis and carrying handle
- Three-phase motor: 400 Volt 3 ~ 50 Hertz
- Power P1: 3300 Watts
- Splitting force: 100 kN (10 t) ±10%
- Maximum splitting stroke: 850 mm
- Maximum splitting length: 1040 mm
- Maximum splitting diameter: 300 mm
- System pressure: 25.5 MPa (255 bar)
- Hydraulic system oil quantity: 7 liters
- Forward speed 1: 23.2 cm/s
- Forward speed 2: 4.9 cm/s
- Reverse speed: 6.1 cm/s
- Sound pressure level LPA: <80 dB (A)
- Wheels and carrying handle: yes
- Protective arm / log lifter: yes
Dimensions:
- Splitting column: 160 x 120 mm
Weight: 172.5 kg
Scope of delivery:
- 1 x firewood splitter "ASP 10 TS-2"
- 1 x operating instructions
| External dimensions | |
|---|---|
| External dimensions | 630 x 440 x 1700 mm |
| Vertical construction | |
| Vertical construction | true |
| Voltage | |
| Voltage | 400 |
| Colors | |
| Colors | light orange |
| Return speed | |
| Return speed | 6.1 cm/s |
| Forward speed | |
| Forward speed | 23.2 cm/s |
| Splitting stroke adjustment | |
| Splitting stroke adjustment | 850 mm |
| Drive | |
| Drive | 400V motor |
| Maximum splitting length | |
| Maximum splitting length | 1,040 mm |
| Splitting force (tons) | |
| Splitting force (tons) | 10 t |
| Maximum splitting diameter | |
| Maximum splitting diameter | 300 mm |
| Weight | |
| Weight | 172.5 kg |
