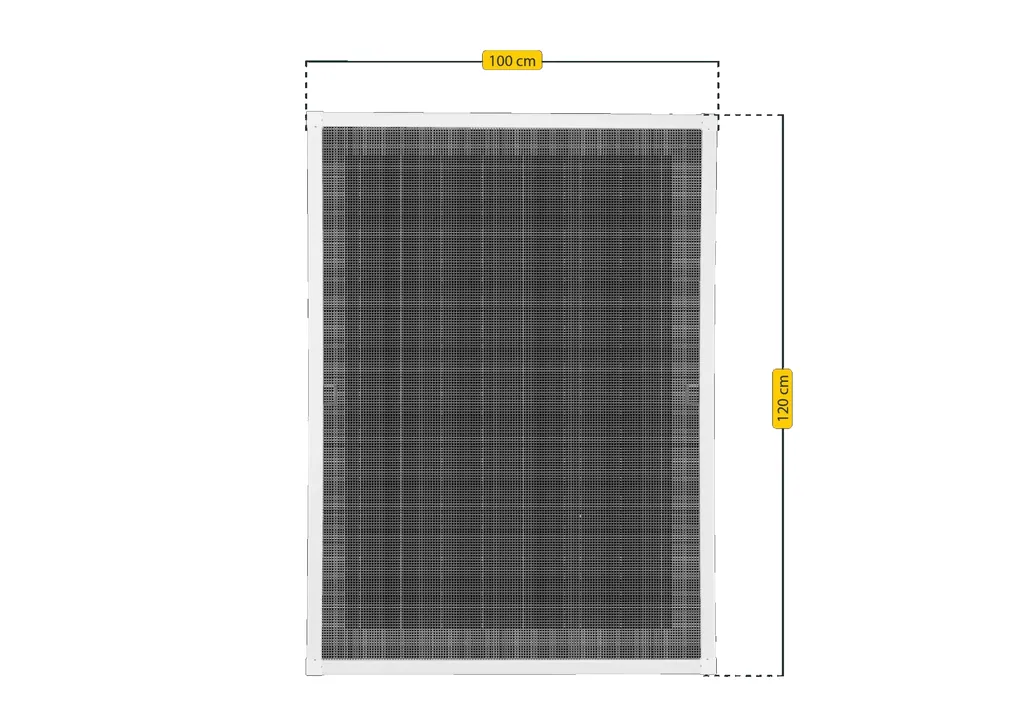

Insect screen window PREMIUM, color white, 100 x 120 cm

• Sturdy aluminum frame and high fabric tension
• Optimal visibility with anthracite-colored CLEAR fiberglass fabric
• Circumferential brush seal in the frame profiles
• Simple hook-on installation, no permanent installation
• Shallow installation depth of 14 mm

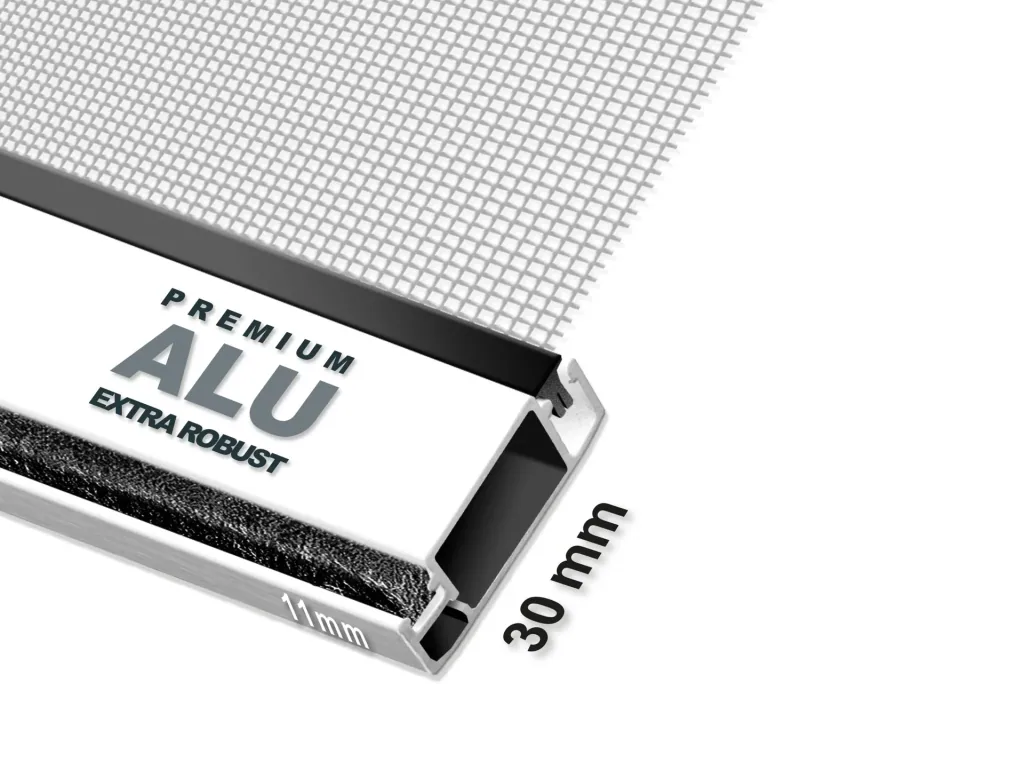

The PREMIUM insect screen window is a complete assembly kit. It consists of an anthracite-colored CLEAR fiberglass fabric, an aluminum frame, and mounting accessories. Compared to other fly screens, the CLEAR fabric has a thinner thread thickness, which improves both visibility and air permeability. The aluminum profiles of the PREMIUM insect screen window are particularly sturdy, measuring 30 x 11 mm. This allows for better tensioning of the fabric and reduces profile deflection.

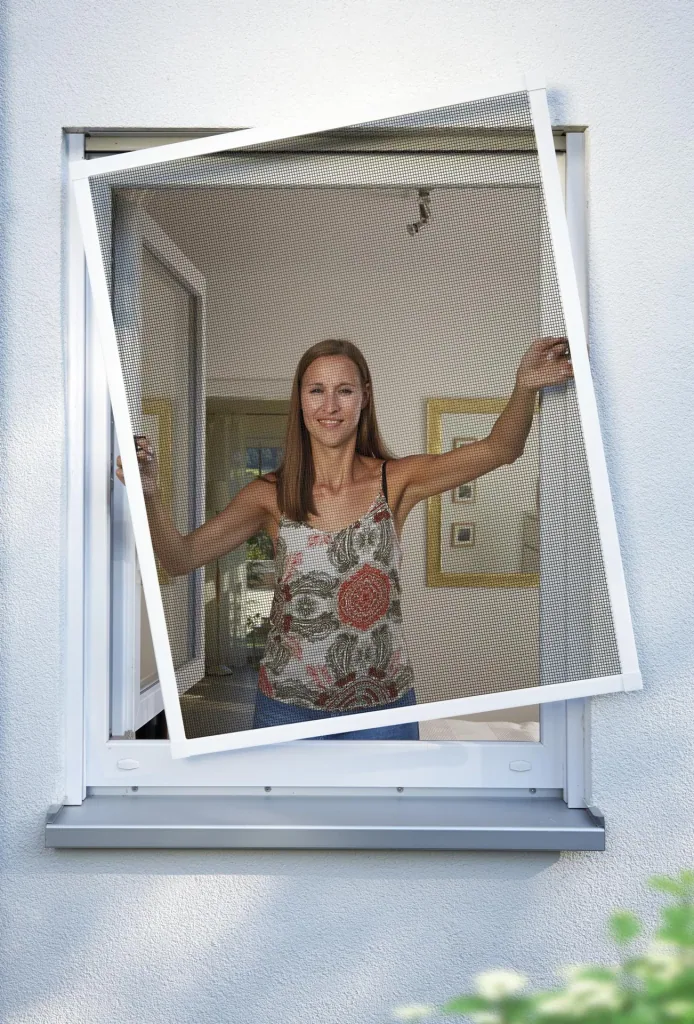

The PREMIUM insect screen is hung in the window frame using stainless steel springs, meaning it is not permanently attached to the window frame. This allows you to easily remove the insect screen when not in use. The grip tabs, which secure the insect screen when hung, are firmly screwed to the fly screen frame. A brush seal integrated into the frame provides additional protection against small crawling and creepy crawlies. If you would like to install the insect screen behind a roller shutter, please note the installation depth of 14 mm.

Technical data

• Profile color: white or anthracite
• Profile thickness: 30 x 11 mm
• Profile structure: matt-sanded
• Fabric color: anthracite
• Fabric material: fiberglass/PVC
• Mesh size: 1.18 x 1.18 mm
• Thread thickness: .009 = 0.228 mm
• Open area: 70.2%
• Temperature resistance: -25 °C to +100 °C
• Fire resistance: self-extinguishing in 10 seconds after removing the Flame

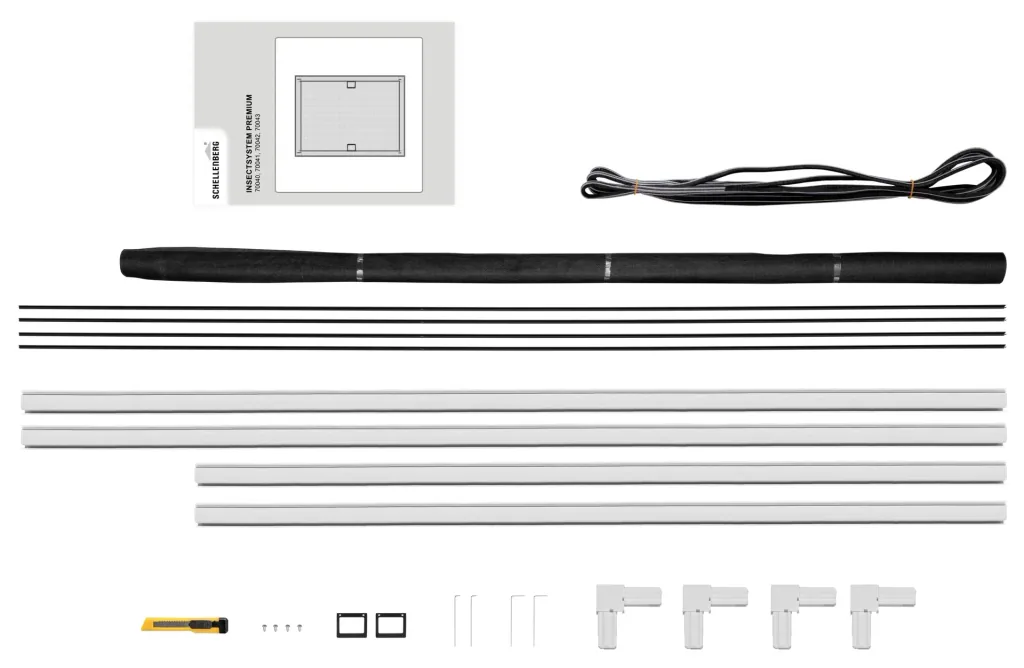

Scope of delivery
4 x aluminum profile
1 x clear fiberglass fabric
4 x corner connectors
4 x corner connector caps
8 x U-profile caps for corner connectors
4 x stainless steel suspension springs
4 x impact piping
2 x handle tabs
1 x brush seal
1 x cutter knife
8 x screws
1 x assembly instructions
