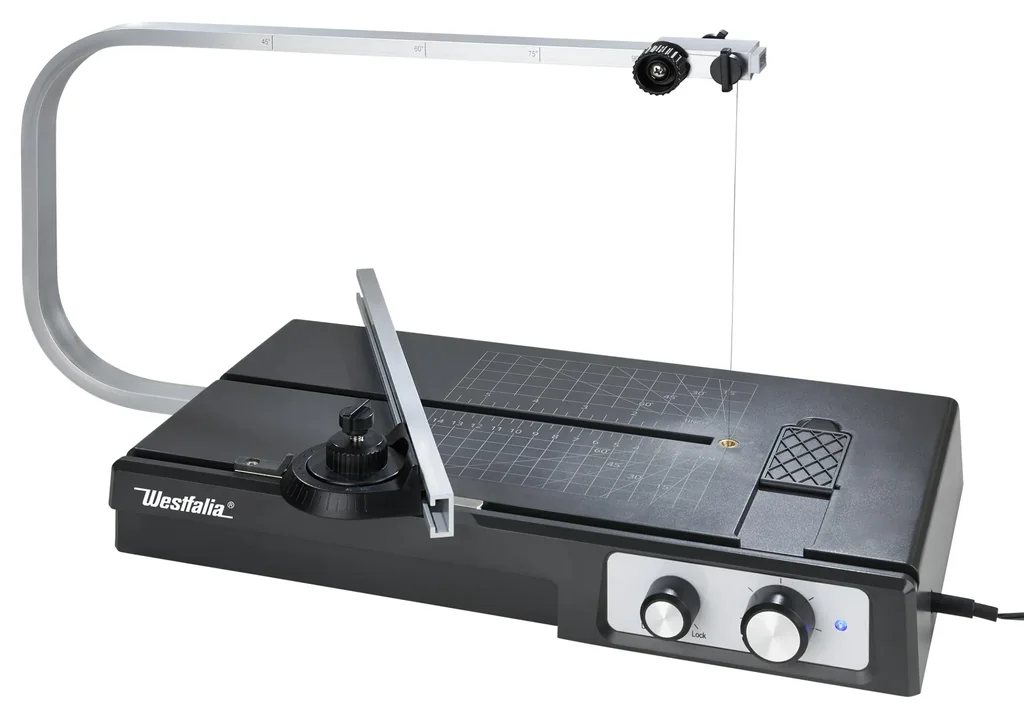

Hot wire cutting device WHS

The lifespan of the cutting wire depends heavily on the material and the chosen temperature. The supplied 5 m wire is intended as replacement material and is sufficient for several changes. (Roughly calculated: With a usual wire length of approx. 30-40 cm for the bracket, this results in approx. 12-16 replacement wires.)

Yes, the WHS is also ideal for thin foils. Thanks to the continuously adjustable temperature, you can precisely adjust the heat to achieve clean and smooth cuts without the material tearing or melting.

Yes, the WHS is ideal for precise cuts in hard foam materials. The printed grid and angle division help with the exact alignment for straight and accurate cuts.

The WHS is primarily designed for hard foam materials and foils. Other plastic sheets could behave differently depending on the material composition and thickness, as the hot wire is optimized for the melting behavior of hard foam.

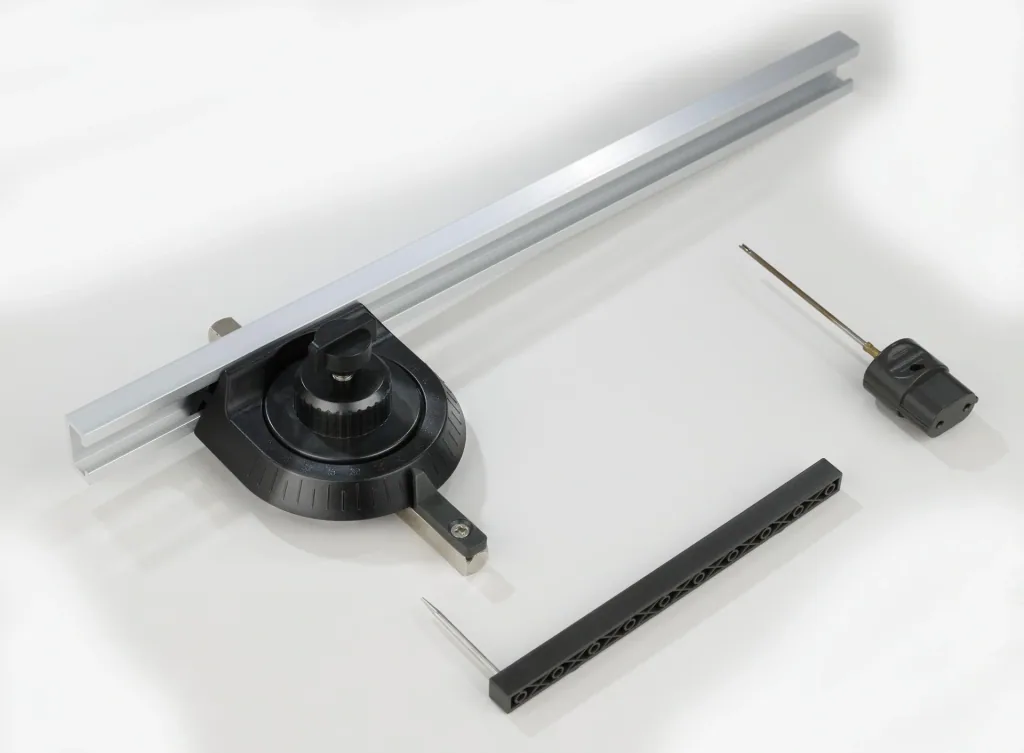

Yes, the adjustable stop of the WHS enables precise and repeatable angle cuts. The solid aluminum bracket ensures high stability, so the setting can be maintained for several identical components.

The workbench of the WHS measures 375 x 210 mm. For very large sheets, it is recommended to additionally support the material when cutting to ensure a precise and straight result.

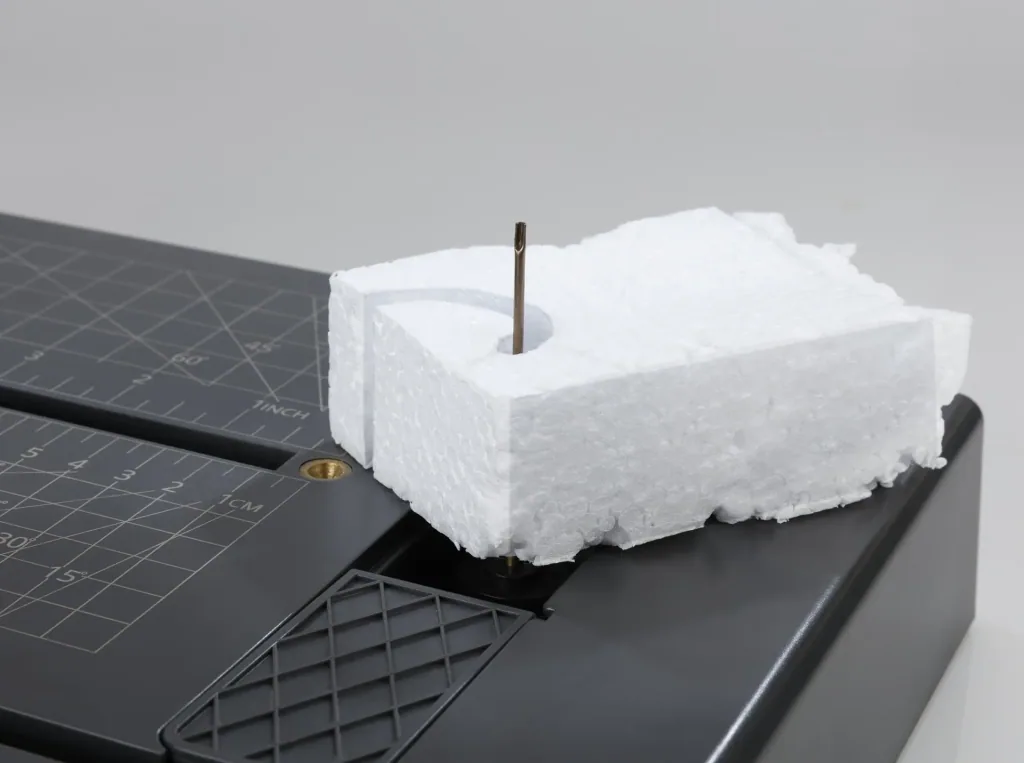

The hot tip of the WHS is specially designed for harder materials and enables precise small recesses. It offers a cutting height of 55 mm and has a diameter of 2 mm.

The WHS is specially designed for rigid foam materials and films. The device is not intended for plexiglass or other solid plastics.

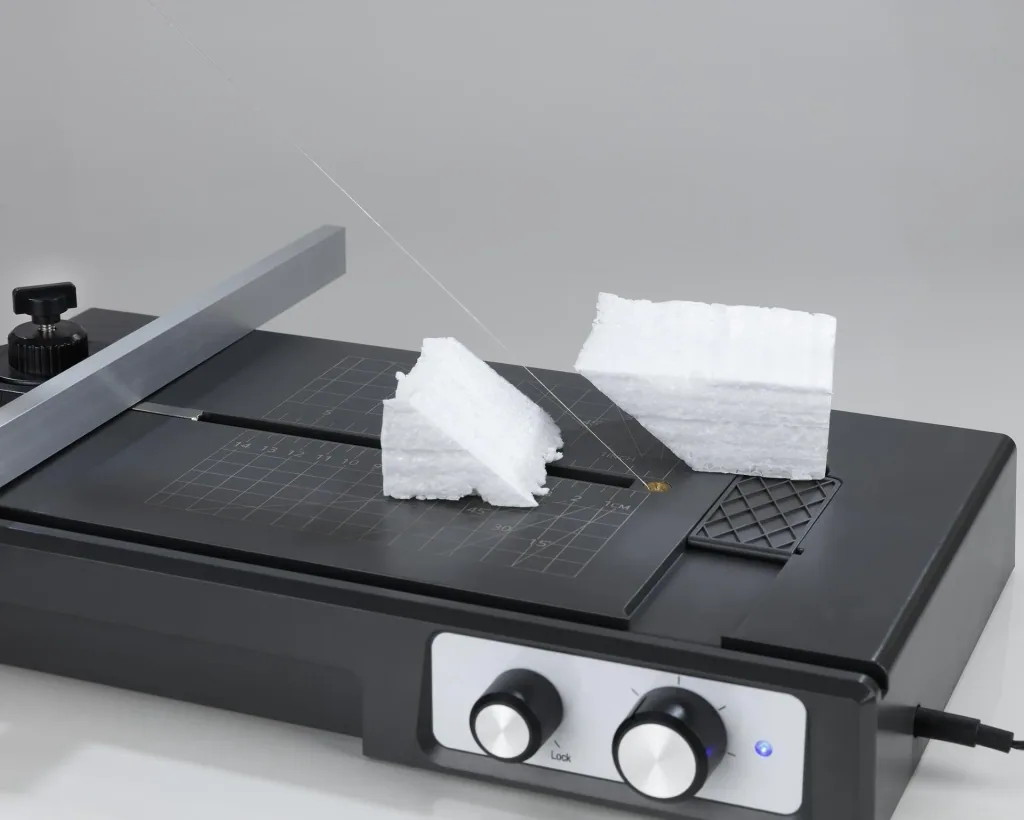

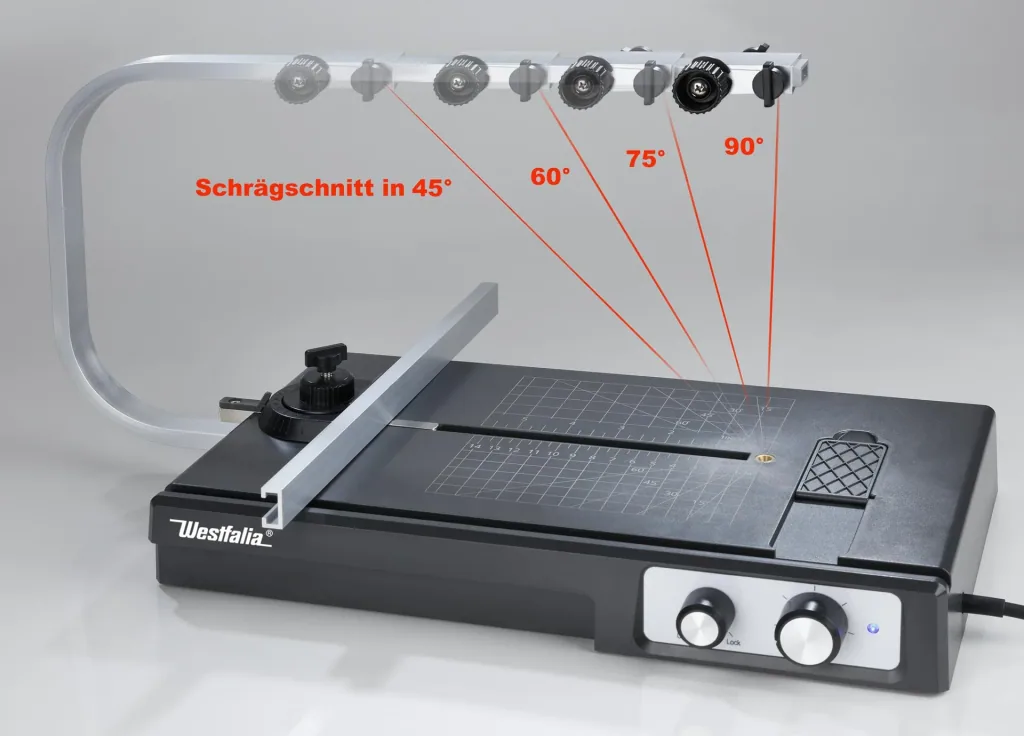

Yes, the sliding bracket is specially designed for miter cuts. The printed angle scale (45, 60, 75, 90 degrees) helps you to precisely set the desired angles.

The sliding bracket is intended for mitre cuts. The angle division offers fixed markings for 45, 60, 75 and 90 degrees.

When cutting hard foam and foils with heat, vapors can be produced. It is recommended to work in well-ventilated areas or outdoors.

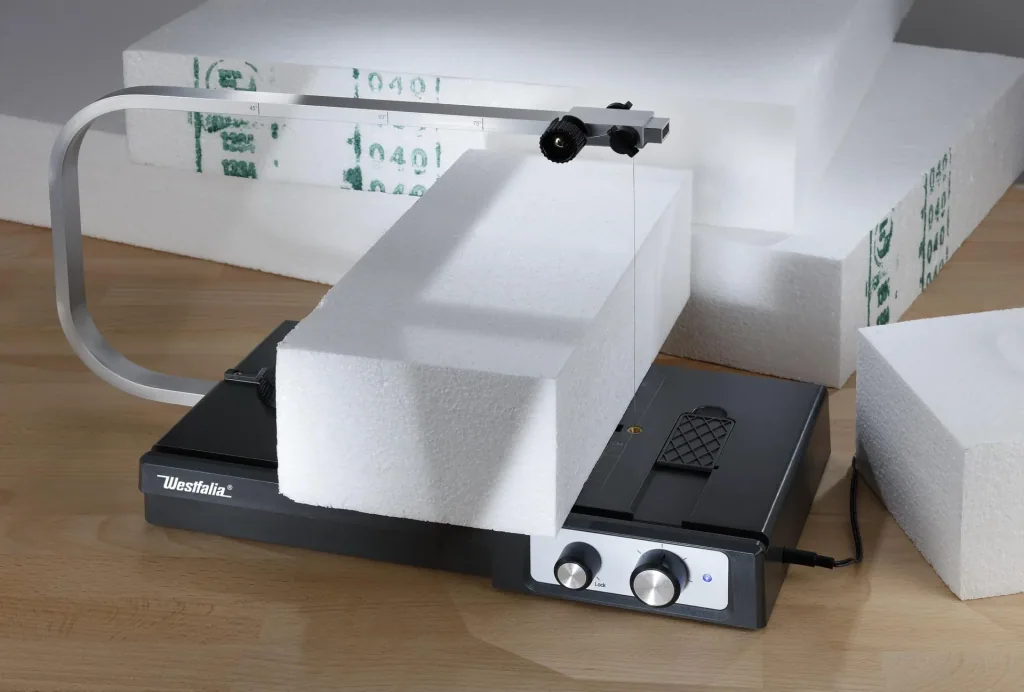

The WHS has a temperature range of 260 to 680 °C. For thick Styrofoam sheets, choose a higher temperature for a faster and cleaner cut. Start with a medium setting and adjust it according to the material and cutting speed.

The sliding bracket is designed for mitre cuts. The angle division offers fixed markings from 45 degrees, setting smaller angles is not explicitly described.

The stepless temperature control of the WHS allows you to set the ideal temperature for different rigid foam densities and thicknesses. This leads to clean, precise cutting edges without melting marks or fraying. This way you always achieve optimal results.

The angle division with markings for 45, 60, 75 and 90 degrees supports precise cuts. A specific accuracy specification in degrees is not available.

For long, straight cuts in insulation boards, the printed grid of the WHS helps you with precise guidance. By using a uniform cutting speed and a suitable stop, you can achieve precise and straight strips.

The device is designed for cutting and shaping rigid foam materials. Even guidance of the material ensures stable and straight cuts.

The adjustable column is used to set the cutting height up to a maximum of 175 mm. Processing materials that are thicker than the maximum cutting height by turning the workpiece requires a lot of practice and can affect the cutting precision.

The device is specially designed for hard foam materials and films. It is only conditionally suitable for softer foams, as the cut may not be as precise.

The WHS has an angle division for 45, 60, 75 and 90 degrees. Mitre cuts at various angles are possible thanks to the sliding bracket, but the precise setting of 2 degrees is very demanding.

The device is designed for films. The continuously adjustable temperature helps to achieve a clean cut, even with laminated materials.

Yes, the WHS is very suitable for model building with rigid foam materials. Thanks to the continuously adjustable temperature, you can achieve precise and clean cuts, even with smaller or more filigree styrofoam parts, without damaging the material.

Yes, XPS boards are among the hard foam materials. The WHS is ideal for cutting and shaping such materials and offers a continuously adjustable temperature for optimal results.

The WHS has a continuously adjustable temperature. This allows you to optimally adjust the heat to thin foam materials to minimize excessive melting and achieve clean cutting edges.

The temperature can be continuously adjusted from 260 to 680 °C. This allows for precise adjustment to thin films to achieve clean results.

The WHS is suitable for cutting films. For optimal results, the suitability for very thick or special films depends on their material composition. The continuously adjustable temperature range helps to find the right temperature.

The printed grid and angle division serve for precise guidance and alignment of your material. This allows you to create exact straight cuts and mitre cuts with the predefined angles (45, 60, 75, 90 degrees).

The device is suitable for cutting and shaping rigid foam materials, such as styrofoam. Precise shapes can be realized with the printed grid and angle division.

The WHS is ideal for cutting and shaping hard foam materials and films. It is not primarily designed for soft upholstery foam.

Yes, the hot wire cutter WHS is ideal for cutting and shaping hard foam materials such as styrodur. You can use it to make precise molded parts for your projects.
