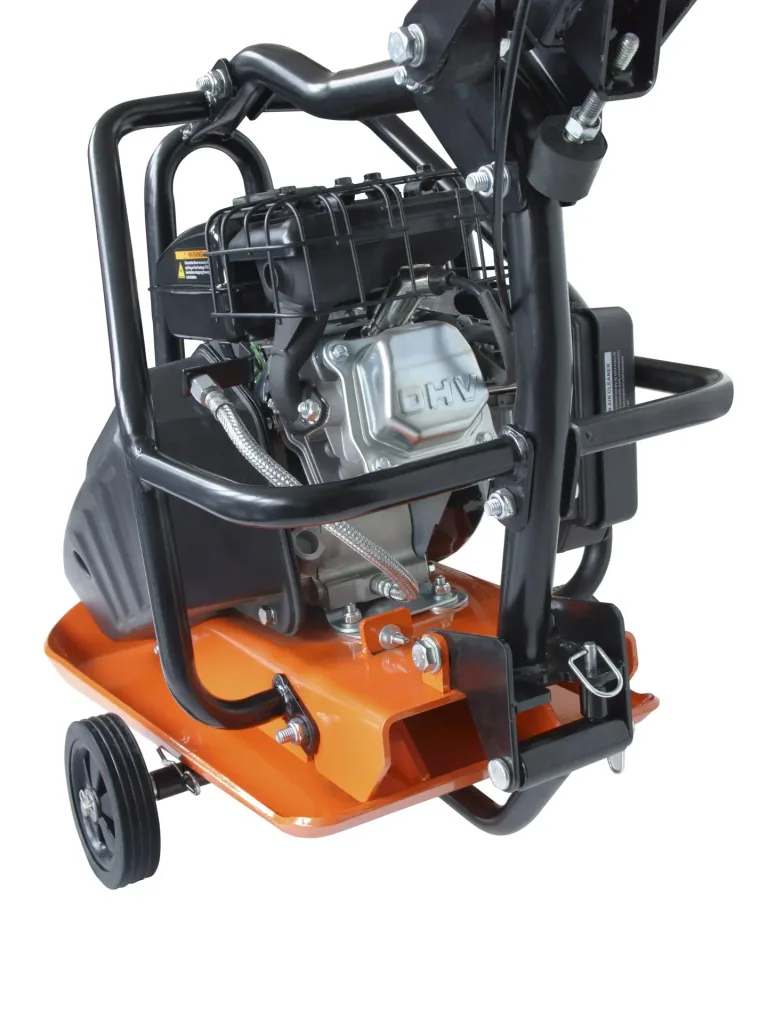

Vibrating plate "V-HB 8200"

• Powerful four-stroke engine with modern OHV technology
• Reversing starter, electronic ignition, and choke lever
• Centrifugal clutch, secure V-belt drive
• Robust engine protective frame
• Vibration-damped handle lockable in working position
• Pivoting transport chassis for easy relocation
• Compact, lightweight design, easy to transport
• Resistant base plate against wear
• Protective mat for paving work

With the "V-HB 8200" vibrating plate, you can literally shake the ground. At 52 kg, the "V-HB 8200" is relatively lightweight among vibrators. This feature helps you operate the machine even without extensive prior experience. Heavier models are more powerful and vibrate more deeply, but this isn't always necessary. For light earthmoving and gardening work, you should ensure the device delivers around 8 kN. 1 kN corresponds to approximately 102 kg of compaction pressure. The "V-HB 8200" plate vibrator generates a compaction pressure of 834 kg, so it fits perfectly into this category. The device is powered by a 1.5 kW four-stroke gasoline engine.

Before use, check that there is sufficient fuel in the 1.6 l gasoline tank. Start the device using the electronic ignition. The engine will start purring, and you can get started and really let loose in the garden, front yard, or on the construction site. The advantage of a gasoline vibrator is that it weighs less than a comparable diesel model. With a plate length of 495 mm and a plate width of 380 mm, the vibratory plate compacts the soil to a depth of 200 mm. It generates a sound power level (Lwa) of 104 dB(A). It is therefore recommended to wear hearing protection when working with the vibrator.

Technical specifications:

• 4-stroke gasoline engine (EU V): 79 cm³
• Engine power: 1.5 kW/3600 rpm
• Fuel tank volume: approx. 1.6 liters
• Fuel: Gasoline (E10)
• Engine oil tank volume: approx. 0.35 liters
• Engine oil: 15W-40
• Running speed: 25 m/min
• Compaction depth: approx. 20 cm
• Compaction pressure: 8.2 kN
• Vibration shocks: 5900 rpm
• Sound power level LWA: 104 db(A)
• Measurement uncertainty factor K: 2.19 dB(A)
• Sound pressure level LPA: 89.5 dB(A)
• Measurement uncertainty factor K: 3.0 dB(A)
• Hand-arm vibration avhw: 17.7 m/s²
• Measurement uncertainty factor K: 1.5 m/s²

Dimensions:

• Base plate: approx. 495 x 380 mm

Weight: approx. 52 kg

Scope of delivery:

• 1 x vibrating plate "V-HB 8200"
• 1 x engine oil, 350 ml
• 1 x instruction manual
