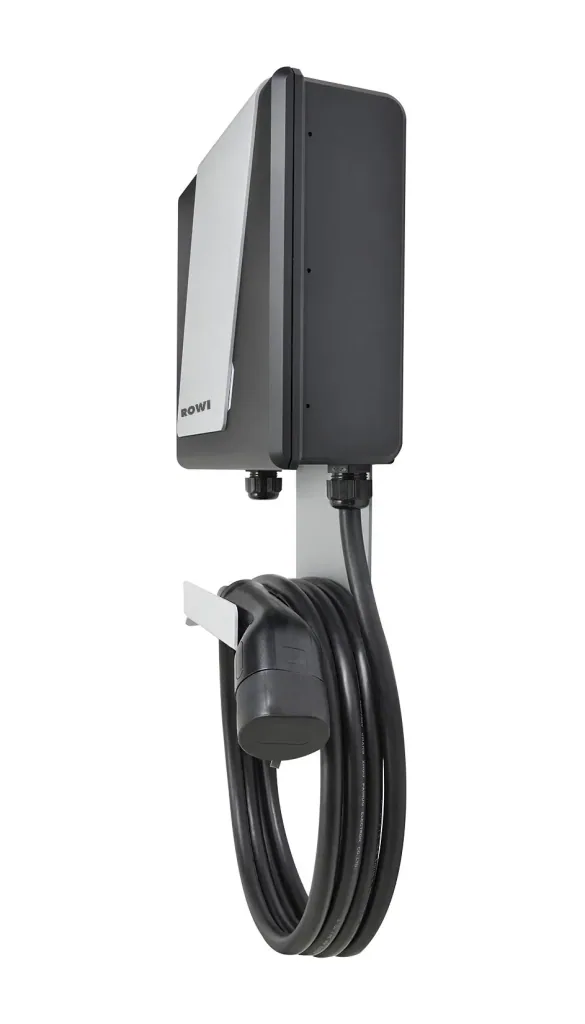

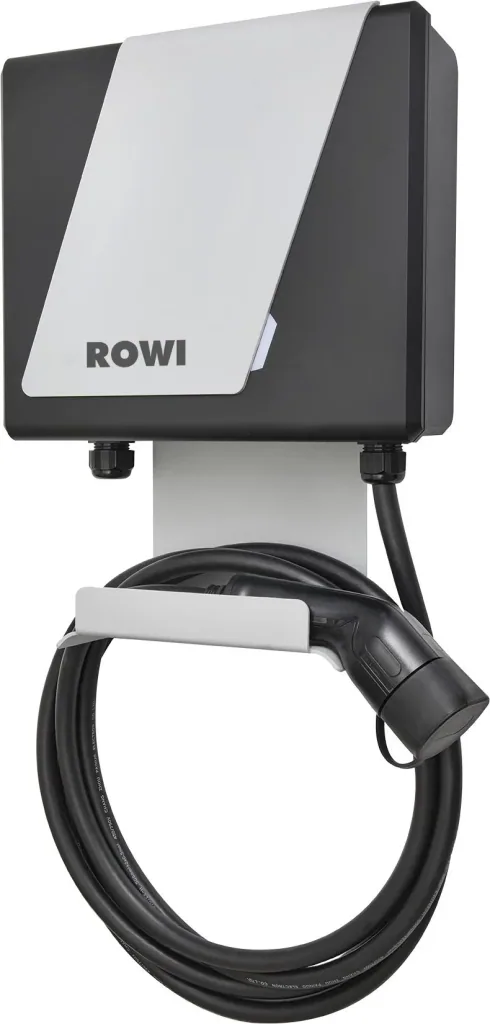

Wallbox 22 kW, LWB 22/1 F Comfort
Guaranteed Secure Checkout
| Item number | WF-985691 |
| Brand | ROWI |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- Suitable for indoor or outdoor use thanks to IP45 certification
- Type 2 charging plug according to IEC 62196 included
- Permanently mounted, three-phase charging cable, 5 m
- LED status display
- Practical cable holder
- Option to reduce charging power via rotary switch
- No user authentication required
- Connection to a photovoltaic system is possible
- RS485 BUS interface
The ROWI Wallbox LWB 22/1F Comfort offers fast and safe charging at home with 22 kW without a higher-level control system. As a three-phase charging station for electric vehicles, it can be used indoors and outdoors or connected to a photovoltaic system. In addition, it is eligible for KFW funding, thus enabling every electric car driver to access e-mobility at an affordable price.
Technical specifications:
- Mains voltage: 3-phase 400 volts
- Frequency: 50/60 Hertz
- Maximum charging power: 22 kW
- Current: 32 A max.
- RCD (residual current device): 30 mA VDE 0664 Part 100
- Charging connector: Type 2 plug or socket according to EN 62196
- Cable length: 5 meters
- Mounting: Wall
- Protection level: IP45
- Overvoltage category: III
Dimensions: approx. 48 x 36 x 13 cm
Weight: 6.6 kg (including charging cable)
Scope of delivery:
- 1 x Wallbox 22 kW, LWB 22/1 F Comfort
- 1 x User manual
| Cable length | |
|---|---|
| Cable length | 5 m |
| IP protection class | |
| IP protection class | IP45 |
| Overvoltage category | |
| Overvoltage category | III |
| External dimensions | |
| External dimensions | 48 x 36 x 13 cm |
| Frequency | |
| Frequency | 60 |
| Weight | |
| Weight | 6.6 kg |
| Maximum charging power | |
| Maximum charging power | 22 kW |
| Current | |
| Current | 32 A |
| Colors | |
| Colors | anthracite |
