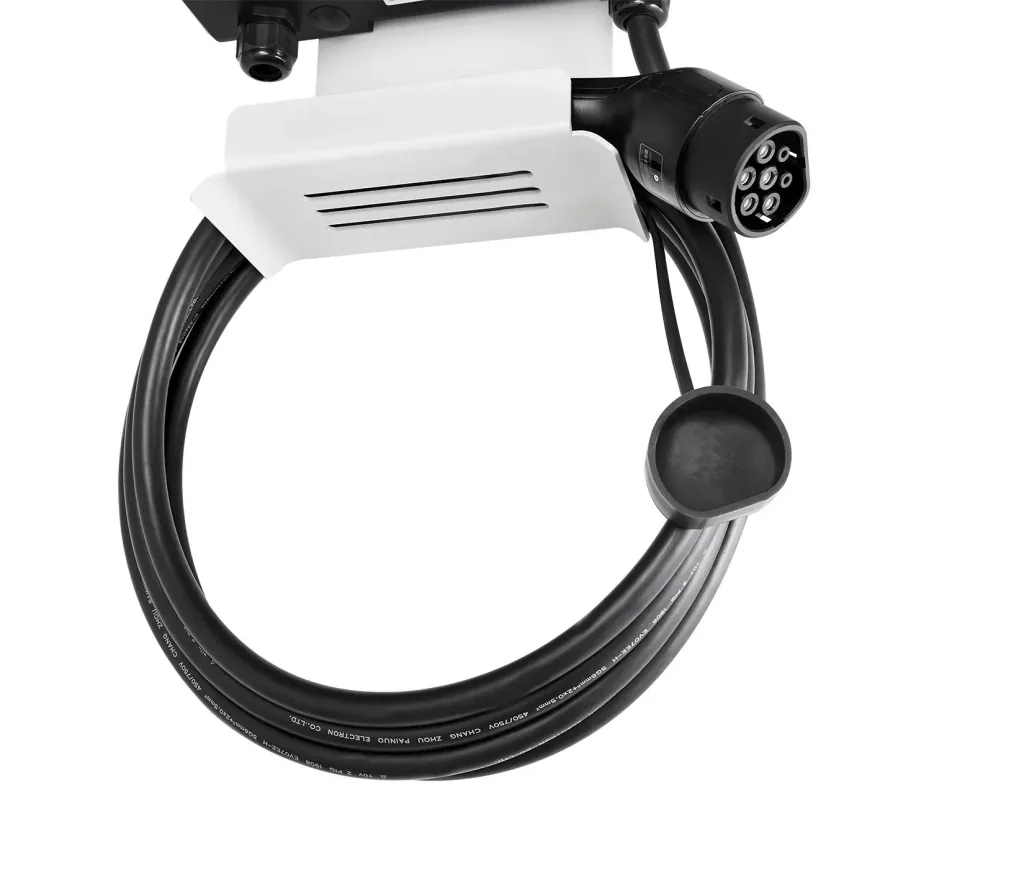

Ladekabel, LLK 5/1

• Protection against dirt, moisture, and splash water according to IP55 certification
• Maximum charging power 22kW – lower charging power is not a problem

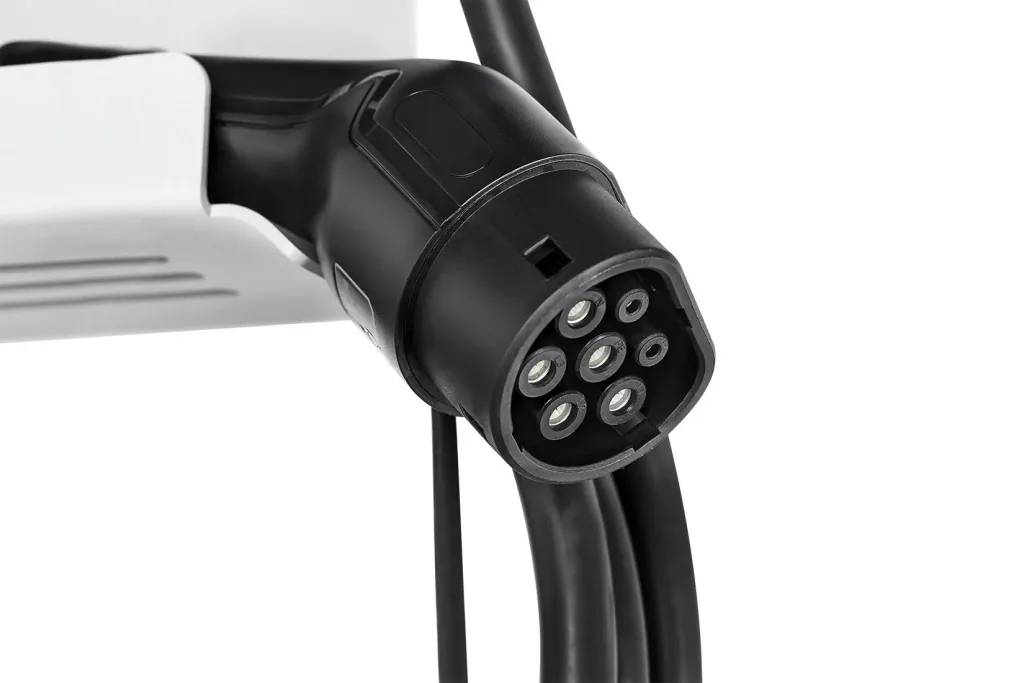

• Type 2 charging plug according to IEC 62196
• Cable length of 5m or 7m
• Use in all weather conditions thanks to operating temperatures from -30°C to +55°C
• In a practical carrying case

The ROWI LLK charging cable offers fast and safe charging at home, at work, or on the go at suitable charging stations. This three-phase Type 2 charging cable – CE and TÜV certified – enables rapid charging with up to 22kW. It is made primarily of copper and is extremely heat- and weather-resistant and splash-proof according to the IP55 standard. Two protective caps provide additional protection against water, dust, and ice. The practical carrying bag keeps water, dust, and abrasion away from the ROWI charging cable, thus extending its longevity.

Technical specifications:

• LLK 5/ 1 (5 meters):
• Mains voltage: 3-phase 480 volts
• Frequency: 50/60 Hertz
• Maximum charging power: 22 kW
• Current: 32 A max.
• Charging mode: Mode 3
• Charging connector on the infrastructure side: Type 2 male connector
• Charging connector on the vehicle side: Type 2 female connector
• Cable length: 5 meters
• Protection class: IP 55
• Stretch cycles: >10,000

LLK 7/ 1 (7 meters):

• Mains voltage: 3-phase 480 Volt
• Frequency: 50/60 Hertz
• Maximum charging power: 22 KW
• Current: 32 A max.
• Charging mode: Mode 3
• Charging connector on the infrastructure side: Type 2 male plug
• Charging connector on the vehicle side: Type 2 female plug
• Cable length: 7 meters
• Protection class: IP 55
• Stretch cycles: >10,000

Dimensions: approx. 38 x 35 x 15 cm

Weight:

LLK 5/1: 4.1 kg

LLK 7/1: 5.1 kg

Scope of delivery:

• 1 x charging cable, LLK
• 1 x instruction manual
