Gabelhubwagen "GHW 2500-115 PA"
Guaranteed Secure Checkout
| Item number | WF-986037 |
| Brand | Güde |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- Sturdy, torsion-resistant steel construction

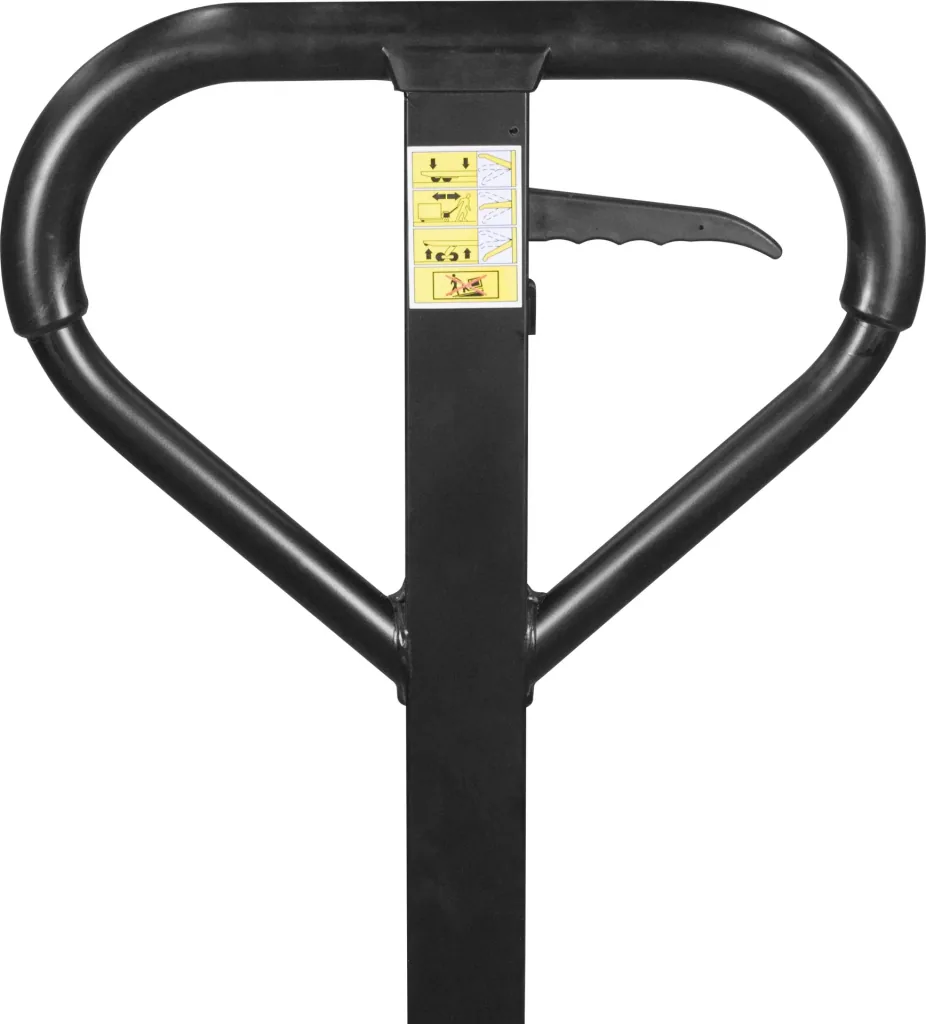

- 180°-rotatable steering column
- Tiller with valve control (via lever with Bowden cable)

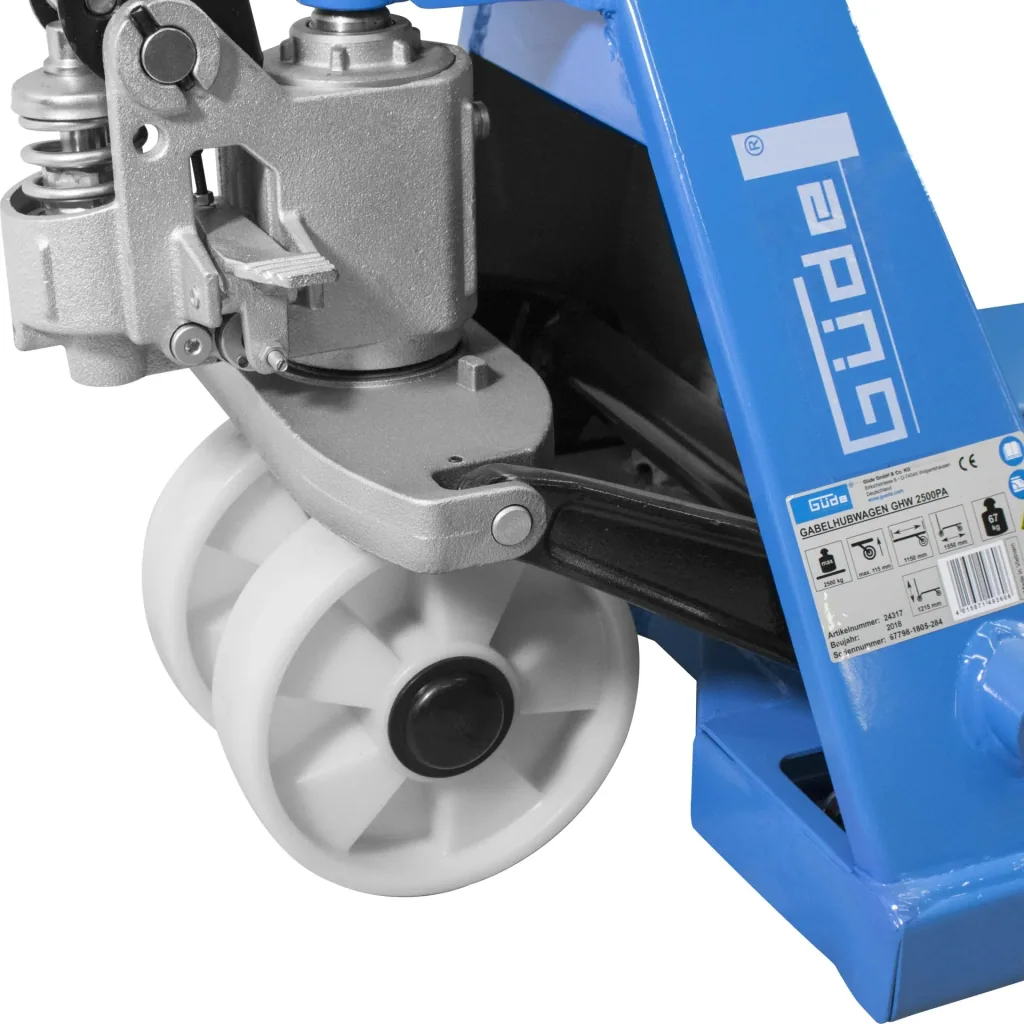

- Tandem-mounted tandem load rollers
- Lifting function via drawbar
- Lowering function via lever on the drawbar or foot pedal
- Robust and stable wheels
- Additional approach rollers for lateral pallet insertion

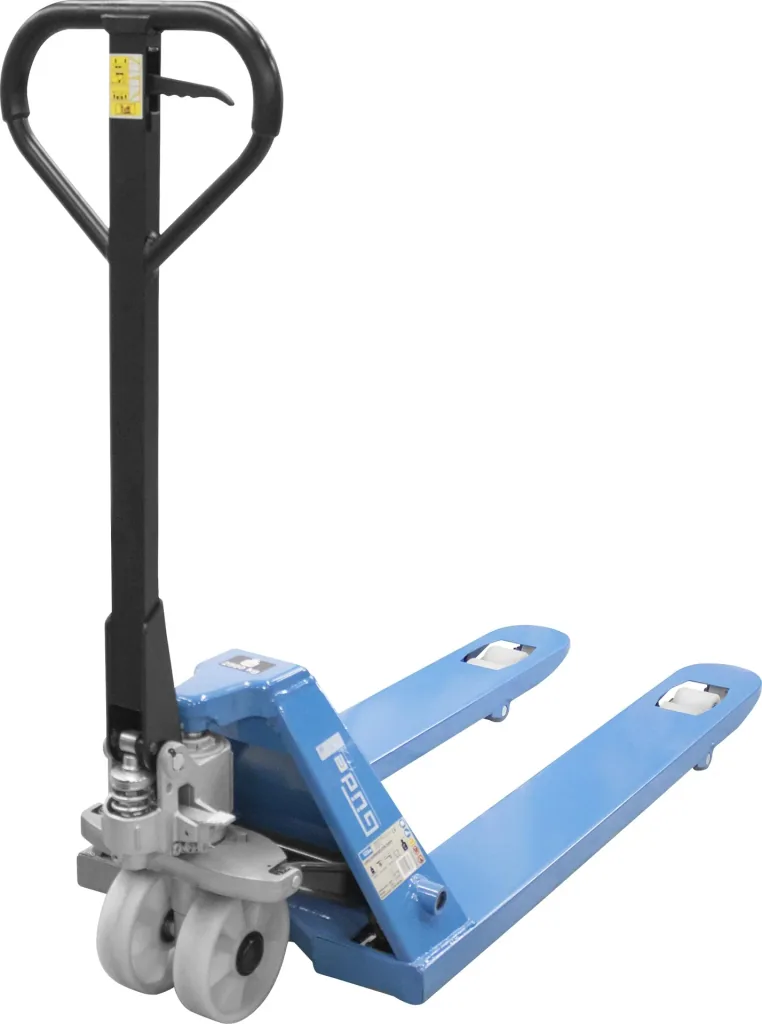

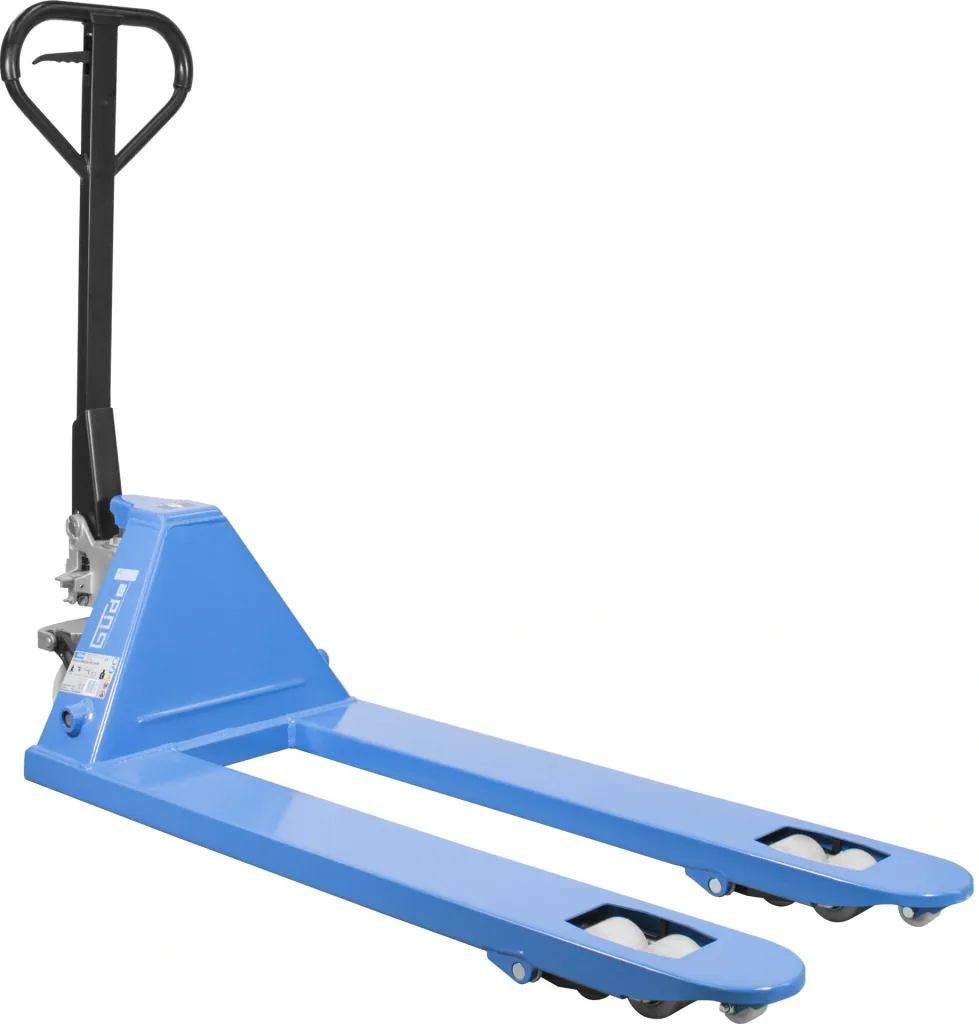

The "GHW 2500 PU" pallet truck is ideal for transport work in your warehouse or workshop. Its sturdy construction with the torsion-resistant steel construction and the 180°-rotatable steering column ensures a small turning circle. Its load capacity is 2,500 kg. The lifting function is carried out via the drawbar with valve control. The lowering function can be activated using the handle and an integrated foot pedal.
Technical specifications:
- Load capacity: 2500 kg
Dimensions: approx. 1550 x 540 x 1215 mm
- Swivel castors: (W x Ø) 50 x 180 mm
- Tandem castors: (W x Ø) 70 x 80 mm
- Fork length: 1150 mm
- Fork height (lowered): 85 mm
- Cylinder height: 115 mm
- Total length: 1550 mm
- Total height (without drawbar): 420 mm
- Total height (with drawbar vertical): 1215 m
Color: Blue, Black
Material: Metal, Plastic
- Wheels 986037: Polyamide
- Wheels 986038: Polyurethane
Weight:
- 986037: approx. 63 kg
- 986038: approx. 64 kg
Scope of delivery:
- 1 x pallet truck
| Material | |
|---|---|
| Material | Plastic |
| Material | Polyamide |
| Material | Metal |
| Colors | |
| Colors | Black |
| Colors | Blue |
| External dimensions | |
| External dimensions | 1550 x 540 x 1215 mm |
| Tire width | |
| Tire width | 70 mm |
| Technical features | |
| Technical features | Torsion-resistant steel construction |
| Technical features | Integrated foot pedal |
| Technical features | 180° rotatable steering column |
| Weight | |
| Weight | 63 kg |
