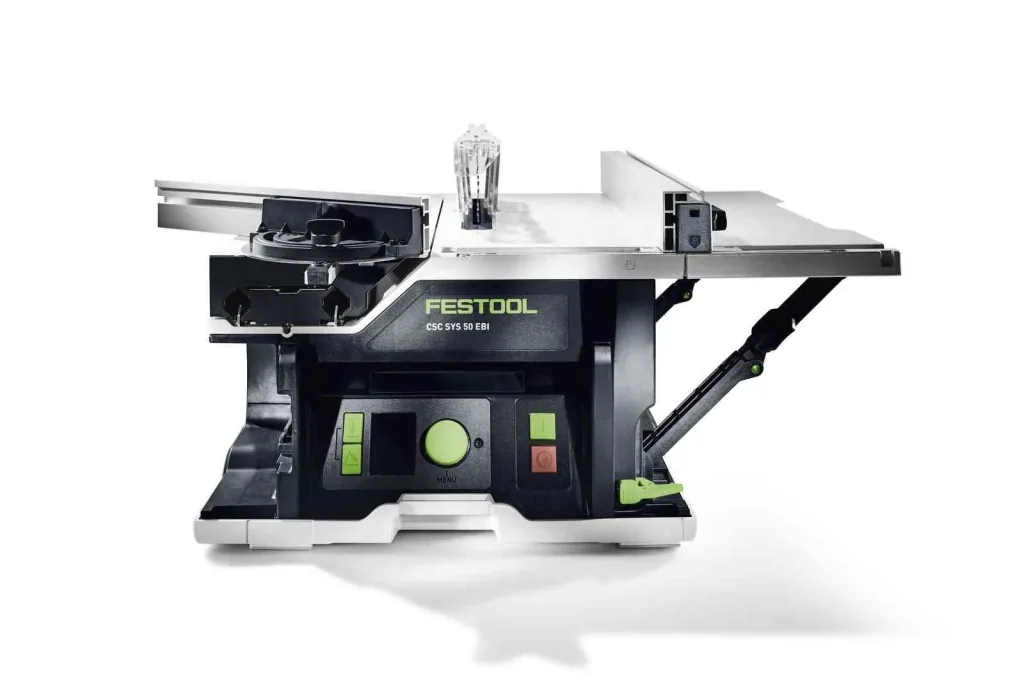

Systainer cordless table saw complete set, including saw blade

Systainer saw cordless table saw CSC SYS 50 EBI-Basic

• Cross cuts up to 450 mm wide, precise and fast with the integrated sliding carriage
• Rip-cuts up to a cutting height of 48 mm and a width of 280 mm with secure support on the integrated fold-out table
• Angle cuts from -2° to 47 (-10° possible with a limited cutting depth of 21 - 32 mm) thanks to the pivoting saw blade
• Exact height and angle adjustment using electric stepper motors. Adjustable to an accuracy of 0.1 mm and controlled via display
• Conveniently transportable in the handy Systainer format

The CSC SYS 50 cordless table saw is so compact that it fits into a Systainer. As incredibly handy as its external dimensions are, it is just as surprisingly versatile in use: with parallel cuts of up to 280 mm, a cross-cut width of up to 450 mm and angle cuts from -2° to 47°. The unique digital operation delivers extremely precise results accurate to within a tenth of a millimeter. The 2x18 volt dual battery system in combination with the brushless EC-TEC motor impresses with its power and pulling power – you won't notice any difference compared to mains-powered machines. Together with the UG-CSC-SYS base frame, you have the perfect work table right there with you, making transport from the vehicle to the job site effortless. In short: sawing precision to go!

• Versatile: Parallel cuts up to 280 mm; cross-cut width of up to 450 mm. Angle cuts from -2° to 47°
• Practical: with a cutting height of up to 35 mm, even angle cuts of down to -10°; Ideal for undercutting filler strips
• Compact and mobile: can be transported with one hand in the practical Systainer format. Even easier with the UG-CSC-SYS base frame
• Highest precision: Height and angle are adjusted electrically at the touch of a button via the digital display – accurate to the tenth of a millimeter
• Repeatable accuracy: Height and angle adjustment (mm and inch) is carried out parallax-free via the digital display, i.e., more accurate than any eye measurement. Repeatable cuts are guaranteed
• Convenient: Four saw blade positions can be saved and selected via the digital display
• High-precision parallel stop: Robust parallel stop with double clamping (using a single clamping lever) for exact alignment and perfect cutting results
• High-precision angle stop: The angle stop is optimally aligned and centrally clamped via a groove on the sliding carriage. For miter angles between -70° and +70°
• Absolutely smooth: ball-bearing sliding carriage for parallel and angle cuts with the highest precision
• Powerful: The brushless EC-TEC motor with high speeds of 6,800 rpm guarantees fast sawing progress and perfect cutting results
• Durable: The combination of brushless EC-TEC motor and dual battery system with two 18 volt battery packs (from 4.0 Ah) ensures long running times
• Durable: The brushless EC-TEC motor is durable, robust and maintenance-free
• Work according to the material: with saw blades for every material; The speed is preselected for the appropriate speed for the material via the digital display.
• Low dust: Dust bag for low-dust work even without a mobile dust extractor.
• Healthy working in the system: Also ideal in combination with Festool cordless vacuum cleaners.
• Compatible: Fits with the entire Festool Systainer system and bott vehicle equipment.
• Flexible base frame: The UG-CSC-SYS base frame is the perfect transport solution to the work site and the ideal work table in one.

Technical data

• Battery voltage: 2 x 18 volts
• Idle speed: 4500 - 6800 rpm
• Saw blade mounting hole: 20.00 mm
• Incline angle: -10 - +47°
• Cutting height 0°: 0-48 mm
• Cutting height 45°: 0-34 mm
• Cutting height -10°: 21-32 mm
• Miter angle: 0-70°
• Parallel cutting width: 280.00 mm
• Table height: 280.00 mm

Dimensions

• (L x W x H) 512 x 396 x 296 mm
• Dust extraction connection: 27/36 mm

Weight: 15 kg

Base frame

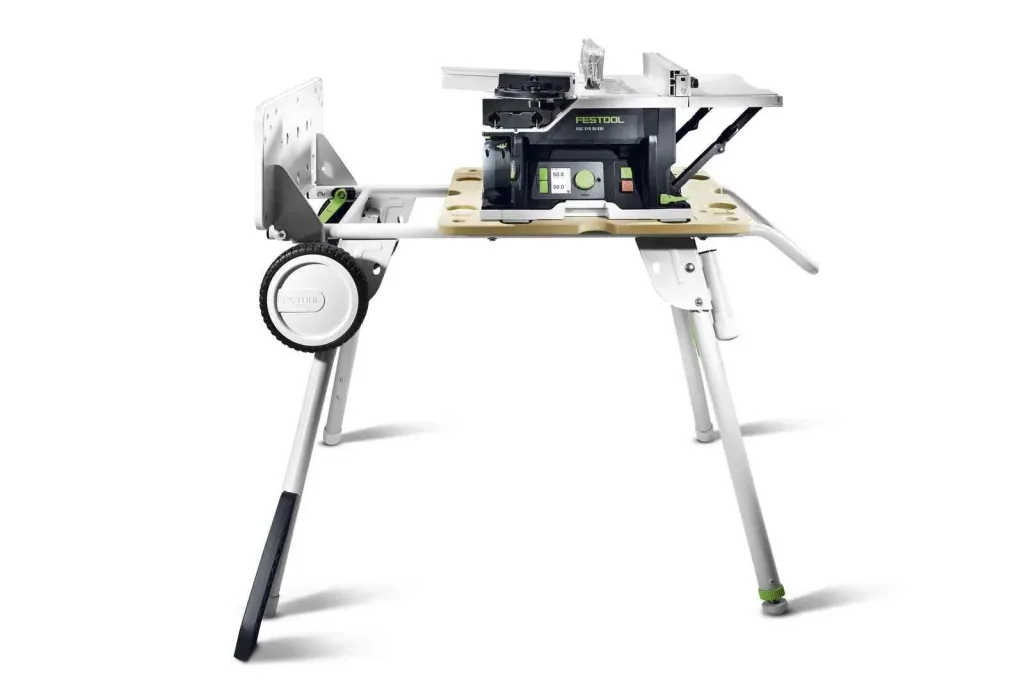

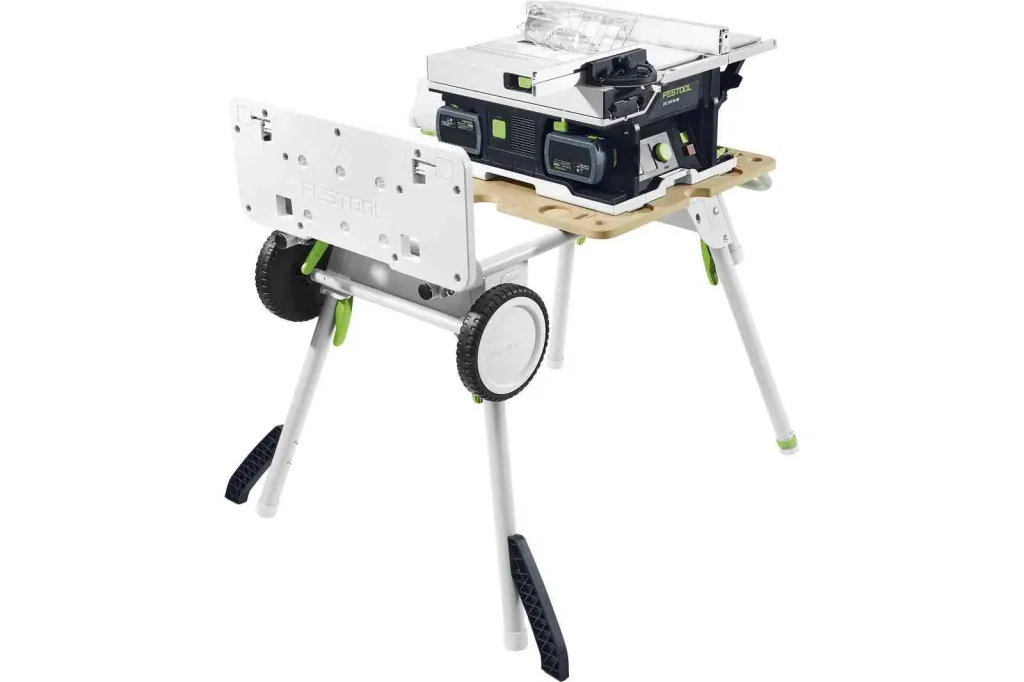

The UG-CSC-SYS base frame is the ideal 3-in-1 solution for your assembly work. For transport from the vehicle to the job site, it serves as a hand truck – you can easily roll an entire tower of Systainers up to 80 kg to the construction site. The folding legs unfold in no time at all, creating a 58 x 58 cm work table; a practical alternative to trestles. Workpieces are securely clamped to the surface using the perforated plate. However, the base frame shows its full potential when combined with the CSC SYS 50 cordless table saw. This is securely positioned in the holes in the work surface, allowing you to work at an ergonomic height of 90 cm. For use close to the ground with the CSC SYS 50 cordless table saw, e.g., when laying flooring, the legs simply remain folded in. The "shovel", which just served as a transport surface for the Systainers, is now set up as an ideal support for long workpieces for all longitudinal, cross, and angle cuts.

• Versatile: Transport aid, work table, and base frame for the CSC SYS 50 cordless table saw in one
• Load-bearing: Systainer tower can transport up to 80 kg. The Systainers lock securely onto the base plate. Additional fastening with a tensioning strap is possible
• Saves space: When folded, the base frame takes up hardly any space in the vehicle
• Practical: The folding legs can be unfolded in no time. Uneven floors are compensated for using a foot leveler on one of the folding legs
• Secure support: The Festool-typical hole pattern on the worktop enables workpieces to be securely clamped using clamps and lever clamps
• A perfect fit: The ideal combination with the CSC SYS 50 cordless table saw. Creates a working height of 90 cm and offers secure support for long workpieces. For working close to the ground (working height 24.5 cm), the legs remain folded in.
• Brings the CSC SYS 50 cordless table saw to a working height of 90 cm (with the legs unfolded)

Dimensions

• (L x W x H) 10067 x 580 x 245 mm
• Table height in high working position: 677.00 mm
• Table height in low working position: 245.00 mm

Weight

• Load capacity as a work table: 100 kg
• Load capacity as a hand truck: 80 kg
• Product weight: 18.13 kg

SYS 18V 2x5.0/TCL6 DUO Energy Set

• Ideal addition: The 5.0 Ah battery packs are powerful all-rounders for all applications and compatible with almost all Festool cordless products. Particularly suitable for all activities and 18 V devices with a focus on performance and endurance. (For example, for long-term work with the Festool cordless extractors CTC MINI/MIDI, KSC 60, AGC 18, HKC 55, TSC 55 as well as for particularly heavy-duty drilling and screwdriving applications with the TPC 18 / TDC 18)
• Extraction starts automatically: The Bluetooth® battery packs automatically start a paired mobile dust extractor when the tool is switched on
• Smart expansion: The Festool WorkApp, in combination with the battery pack's Bluetooth® function, enables clever additional functions, such as a detailed display of the charge level and other operating data such as temperature or charging cycles. To quickly and easily identify the battery with the lowest charge level, you can make the LED display directly on the battery pack flash. Software updates are also possible: Install the latest version to work with the latest tool functions at all times
• Charge two at the same time: The DUO rapid charger charges two battery packs absolutely simultaneously. It is suitable for all battery packs in the 10.8 V, 14.4 V and 18 V classes (exception: BP-XS for CXS/TXS 10.8V)
• Safely stored: Packed in the Systainer³ with enough space for a total of four battery packs and the DUO rapid charger
• Mobile: Packed in the Systainer³, the Energy Systainer can be perfectly integrated into the bott vehicle equipment for easy transport from the workshop to the construction site
• Better in the system: Systainers³ are compatible with each other and can be coupled with all previous Systainer generations, mobile dust extractors and many other system accessories
• All-round protection. Of course, the DUO rapid charger and all battery packs are fully covered by Festool Service.
• As an ideal addition to the Festool Basic variants or as additional battery packs for the workshop or construction site.

The Festool Energy Set is the ideal addition to the Festool Basic variants or offers additional battery packs for the workshop and construction site. Available in various configurations - depending on the individual application and energy requirements. Always with enough space for a total of four battery packs - two of which can be charged simultaneously with the TCL 6 DUO rapid charger. Particularly practical: There is no need to search for another socket for a second charger - this makes things easier and saves time on construction sites, in workshops or in the vehicle. Of course, everything is neatly packaged in a Systainer³ and fully covered by Festool Service.

Technical specifications

• Capacity: 5.00 Ah
• Voltage: 18 Volts
• Charging current: 26.0 A
• Input voltage: 220-240 Volts

Weight: 5.60 kg

Circular saw blade

• Saw teeth made of high-quality metal - for optimal sawing progress and perfect cuts
• For precise, efficient work
• Cutting angle and tooth shape tailored to the application and machine

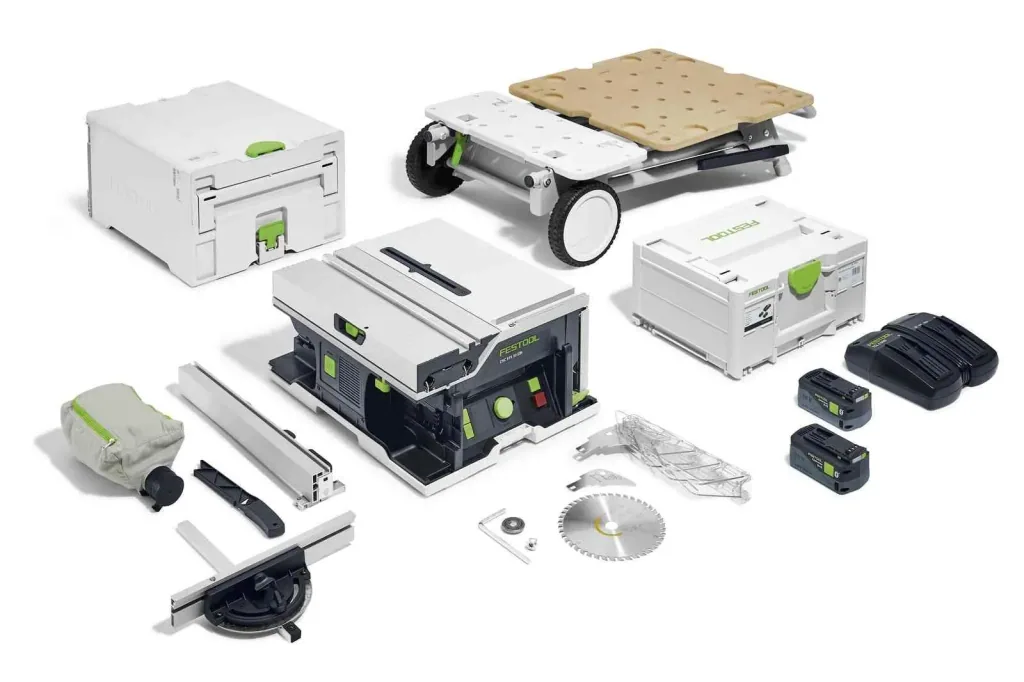

Scope of delivery: 1 x Systainer cordless table circular saw complete set, including saw blade
