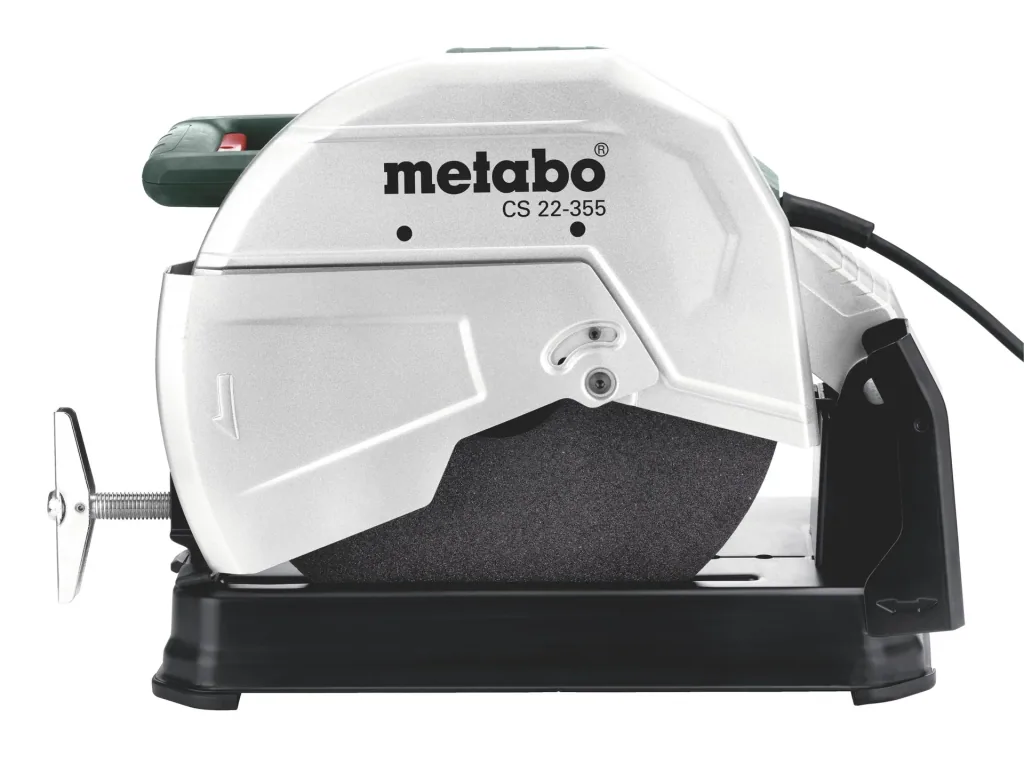

Metal cutting grinder CS 22-355
About this item:
- High-performance metal cut-off saw
- Quick-release clamping device with stepless miter adjustment
- Large handle perpendicular to the cutting axis for optimal power transmission
- Easy, quick disc change thanks to spindle lock
- Safety switch to prevent unintentional starting
Guaranteed Secure Checkout
| Item number | WF-992624 |
| Brand | Metabo |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- Powerful metal cutting machine for cutting profiles, pipes, and bars made of steel, non-ferrous metals, iron, and cast iron profiles
- Quick-action clamping device with continuously variable miter adjustment for angle cuts from -15° to 45°
- Large handle perpendicular to the cutting axis for optimal power transmission during cutting
- Adjustable cutting depth limiter for optimal use of the cutting wheel
- Simple, quick wheel changes thanks to spindle lock
- Maximum user protection: pivoting cutting guard, adjustable spark deflector, and rubberized base for safe cutting
- Safety switch to prevent accidental starting
- Robust, large machine table with practical storage for Allen keys
- Easy transport thanks to integrated carrying handle and transport lock
Technical Data
- For grinding wheels (Ø x bore): 355 x 25.4 mm
- Idle speed: 3700 rpm
- Rated power consumption: 2300 watts
Dimensions
- Max. cutting capacity round tube: 132 mm
- Max. cutting capacity square tube: 120 x 120 mm
- Max. cutting capacity rectangular tube: 100 x 208 mm
- Max. Cutting capacity L-profile 150 x 150 mm
- Dimensions of the base plate 456 x 256 mm
- Transport height 394 mm
- Cable length 4 m
Weight 16.8 kg
Scope of delivery
- 1x Metal cutting grinder CS 22-355
- 1x Allen key
- 1x Support flange
- 1x Clamping nut
- 1x Cutting disc 355 mm
| Power output | |
|---|---|
| Power output | 2,300 W |
| Idle speed | |
| Idle speed | 3,700 rpm |
| Cable length | |
| Cable length | 4 m |
| Weight | |
| Weight | 16.8 kg |
