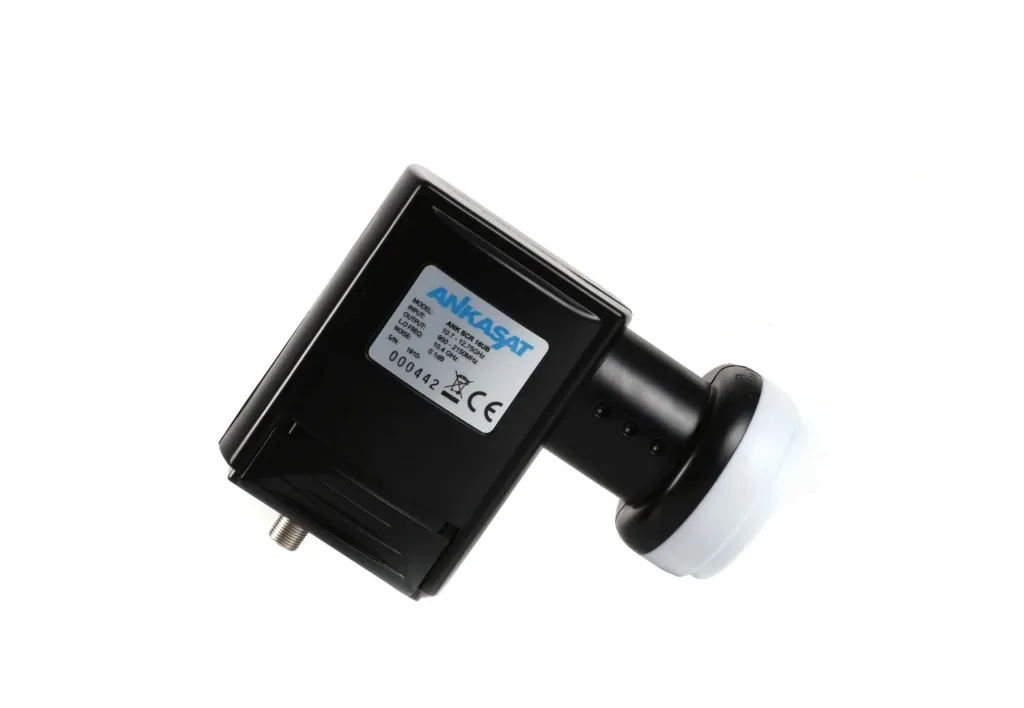

Single-cable LNB for 16 x Unicable receivers, LTE shielding
About this item:
- Unicable LNB for up to 16 Unicable receivers
- high-quality shielding
- LTE shielding
- extendable weather protection
- 1080p Full HD, 4K (UHD) and 3D capable
| Item number | WF-994073 |
| Brand | Ankaro |
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choiceThere are no questions yet
Ask a question to learn more about the product
0.0
- Unicable LNB for up to 16 Unicable receivers
- High-quality shielding
- LTE shielding
- Extendable weather protection

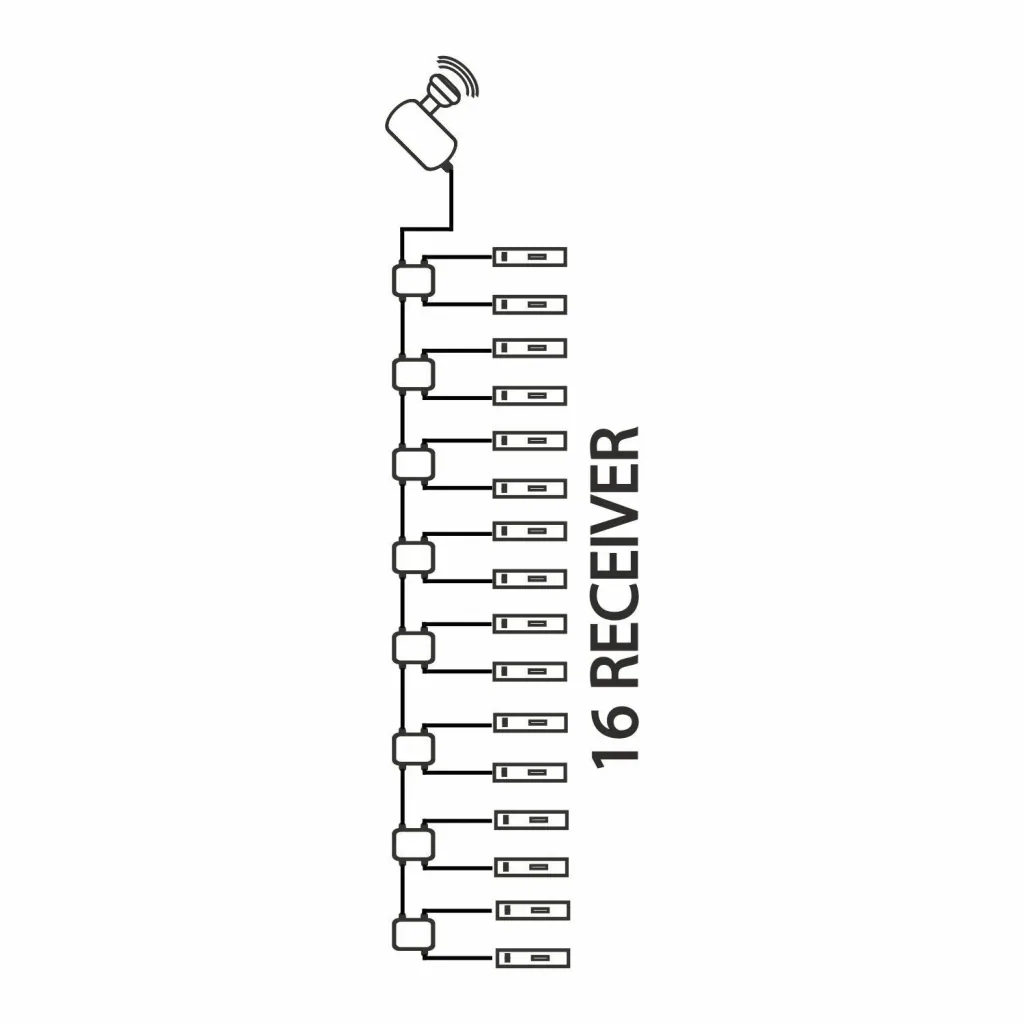

The ANKASAT SCR 16 UB LNC enables cost-effective installations for residential units with up to 16 satellite receivers via a single cable. The ideal and cost-effective complete solution for signal supply to small to medium-sized residential units. The LNB can be used for other satellites in addition to Astra 19.2°. The integrated weather protection protects the connections from moisture.
Technical specifications:
• SCR outputs: 1 for 16 user bands
• Input frequency LOW: 10.7 - 11.7 GHz
• Input frequency HIGH: 11.70 - 12.75 GHz
• LOF frequency: 10.4 GHz
• Bandwidth: 46 MHz
• LO stability: ± 1-2 MHz
• Noise figure: <0.1 dB
• Gain: 55 dB
• Gain fluctuation: ± 0.75 dB
• Cross polarization rejection: 22 dB
• Image rejection: 40 dB
• Operating temperature: -30° - 70°
• Operating voltage: 13.5 V
• Current consumption: 300 mA
• Feed diameter: 40 mm
• 1080p Full HD, 4K (UHD) and 3D capable
Userband frequencies:
UB1: 1210 MHz, UB2: 1420 MHz, UB3: 1680 MHz, UB4: 2040 MHz, UB5: 985 MHz, UB6: 1050 MHz, UB7: 1115 MHz, UB8: 1275 MHz, UB9: 1340 MHz, UB10: 1485 MHz, UB11: 1550 MHz, UB12: 1615 MHz, UB13: 1745 MHz, UB14: 1810 MHz, UB15: 1875 MHz, UB16: 1940 MHz
