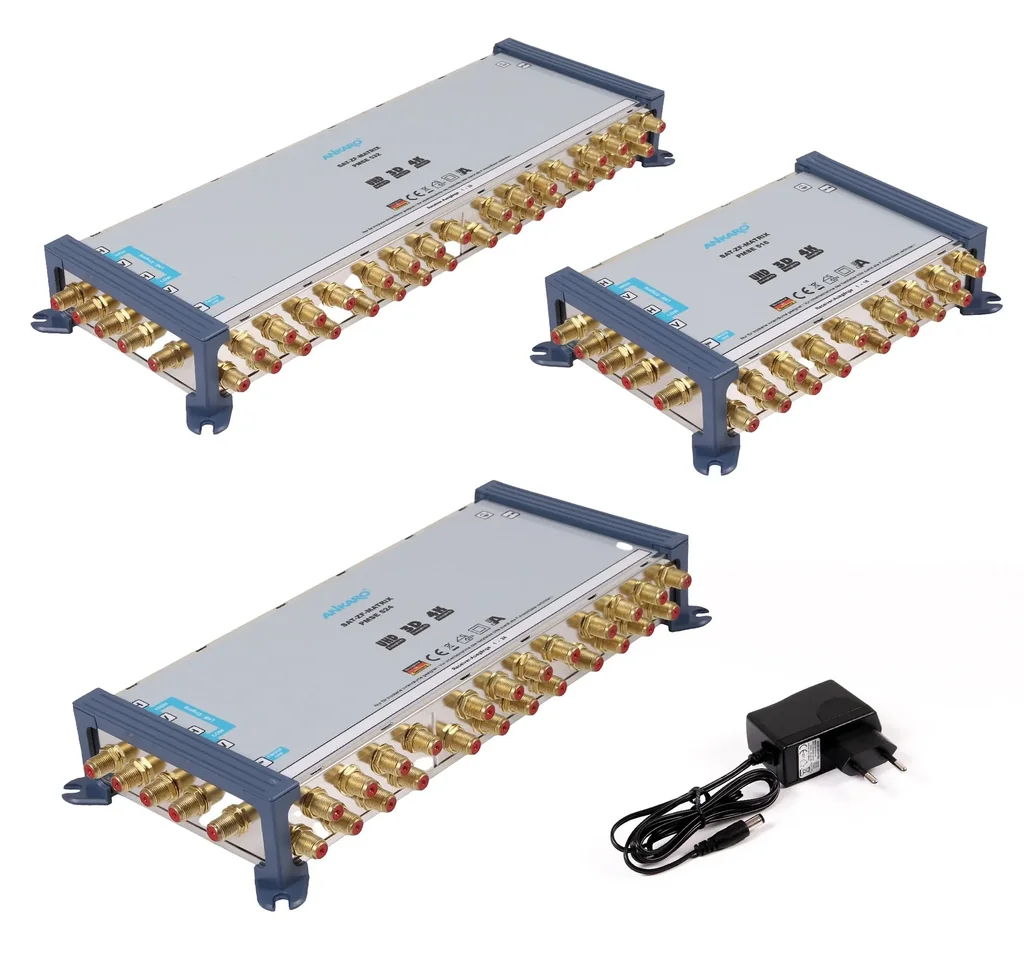

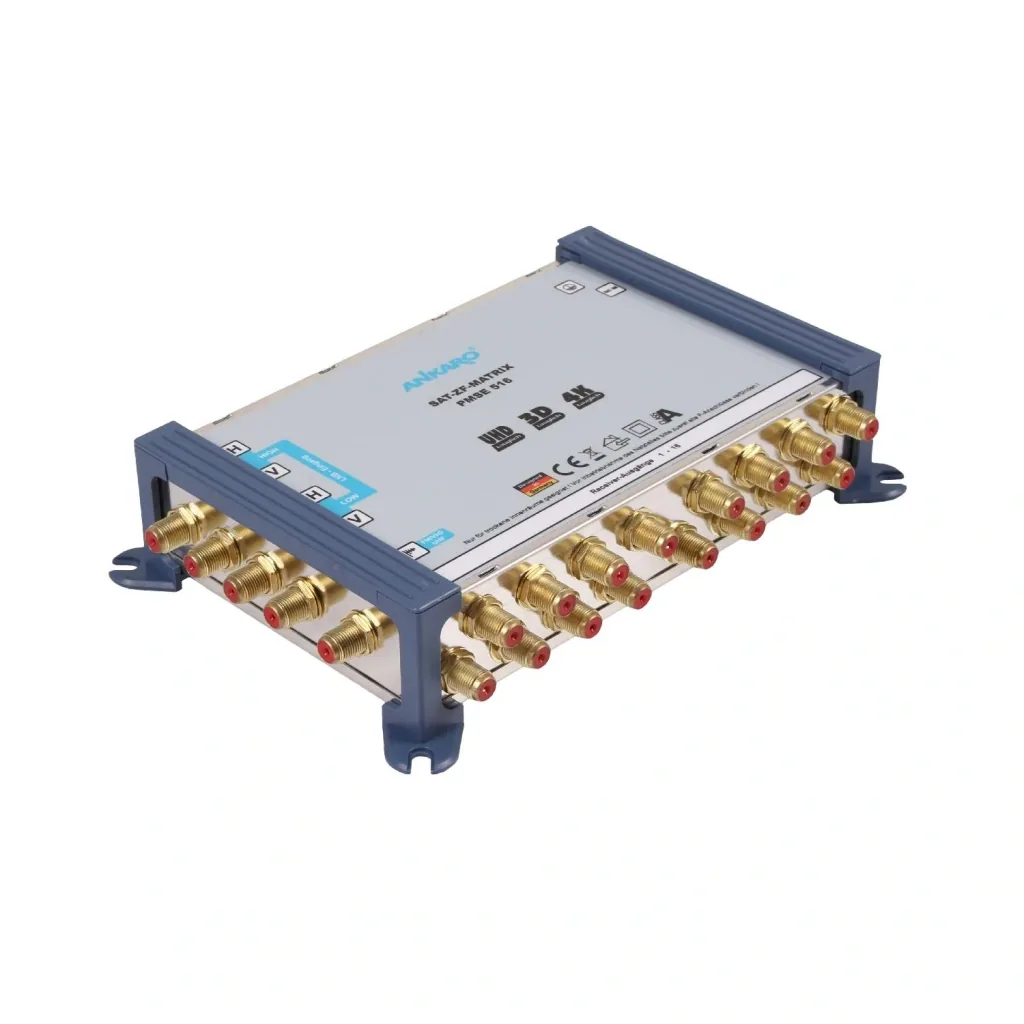

Multiswitch PMSE 5 inputs 16 outputs
About this item:
- Terrestrial: active
- Return channel: no
- External power supply
- Gold-plated connectors
- Mounting feet
Guaranteed Secure Checkout
| Item number | WF-994090 |
| Brand | Ankaro |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- Terrestrial: active
- Return channel: no
- External power supply
- Gold-plated connectors
- Mounting feet
The multiswitches of the PMSE series, with highly integrated high-frequency components combined with proven device mechanics, ensure a balanced product with an excellent price-performance ratio. Unnecessary controls, indicator lights, and buttons have been deliberately omitted. By using active components, the PMSE series always ensures sufficient signal strength. A Quattro-LNC is required for these multiswitches.
Technical specifications:
- Terrestrial amplification 88 - 790 MHz: yes
- Switching voltage: analog 14.5 - 15.5 V DC, 22 kHz +/- 4 kHz
- SAT frequency range: 950 - 2150 MHz
- Terr. frequency range: 88 - 790 MHz
- Max. input level: Sat 95 dBµV, terr. 90 dBµV
- Max. output level: Sat 92 dBµV, terr. 88 dBµV
- Shielding factor: 47-300 MHz 85 dB / 300-470 MHz 80 dB 470-1000 MHz 75 dB / > 1000 MHz 55 dB
- Usable LNBs = Quattro LNB
- Primary power consumption: max. 8.5 VA
- Temperature range: -20 .... +60°C / dry indoor areas
| External dimensions | |
|---|---|
| External dimensions | 208 x 142 x 45 mm |
