DN/OD 250
In this category with 70 items you will find sewer pipes, fittings and accessories for the DN/OD 250 pipe system. They are suitable for underground wastewater disposal and offer high strength for demanding applications.
Buying DN/OD 250 — Guide & Tips
The DN/OD 250 category includes an extensive range of pipes, fittings and accessories for sewer pipe systems with an outer diameter of 250 mm. With 70 items, components for demanding wastewater pipes in private and commercial areas are available here. DN/OD 250 is typically used for main collecting pipes, underground pipes or larger connection pipes where high flow and reliable tightness are required.
What should you consider when choosing? The material is crucial: KG pipes made of PVC-U (hard polyvinyl chloride) are the standard choice for underground wastewater pipes. They are corrosion-resistant, easy to process and offer high ring stiffness. Pay attention to the correct pressure rating and the indication of ring stiffness (e.g. SN 4 or SN 8), which defines the load capacity under earth cover. For above-ground installation or special requirements, there are variants with improved sound insulation or increased temperature resistance.
The compatibility of the components is another key point. All parts of a sewer pipe system must be exactly matched to the outer diameter DN/OD 250. Use only fittings, seals and connectors that are specified for this diameter. Pay attention to the standards DIN EN 1401 (for underground pipes) or DIN EN 1453 (for indoor pipes) to ensure that the products comply with the applicable regulations. A common mistake is confusing DN/OD (outer diameter) with DN/ID (inner diameter) – with DN/OD 250, the outer diameter is 250 mm, the inner diameter varies depending on the wall thickness.
Before buying, consider which specific components you need: straight pipes in various lengths, bends for direction changes, branches for connections or cleaning pipes for maintenance. The choice of the correct branch angle (e.g. 45° or 87°) affects the flow characteristics and the cleanability of the line. Plan sufficient cleaning openings to easily remove blockages later.
Popular DN/OD 250 Products
In the DN/OD 250 category you will find a number of standard components that are most frequently requested in practice. These products cover the basic requirements for building a functional sewer pipe system. The following selection shows you three typical representatives that stand for different areas of application.

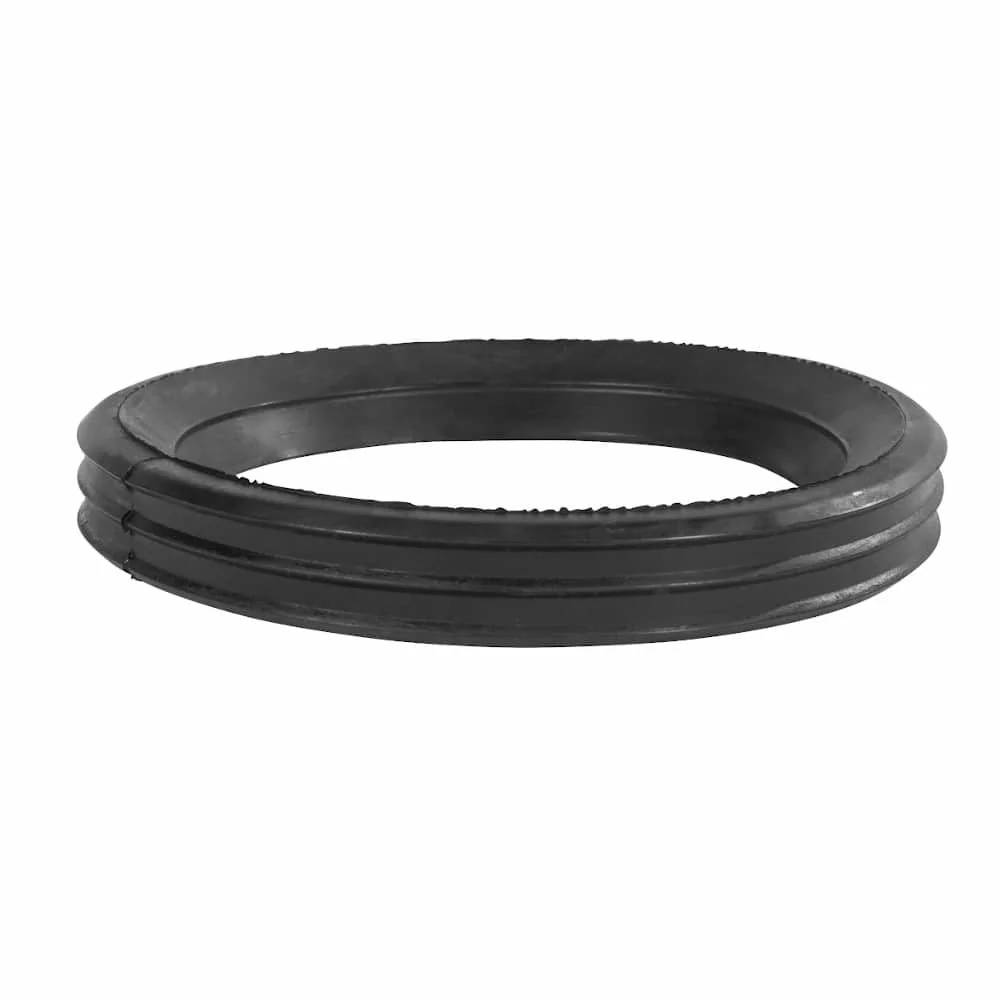

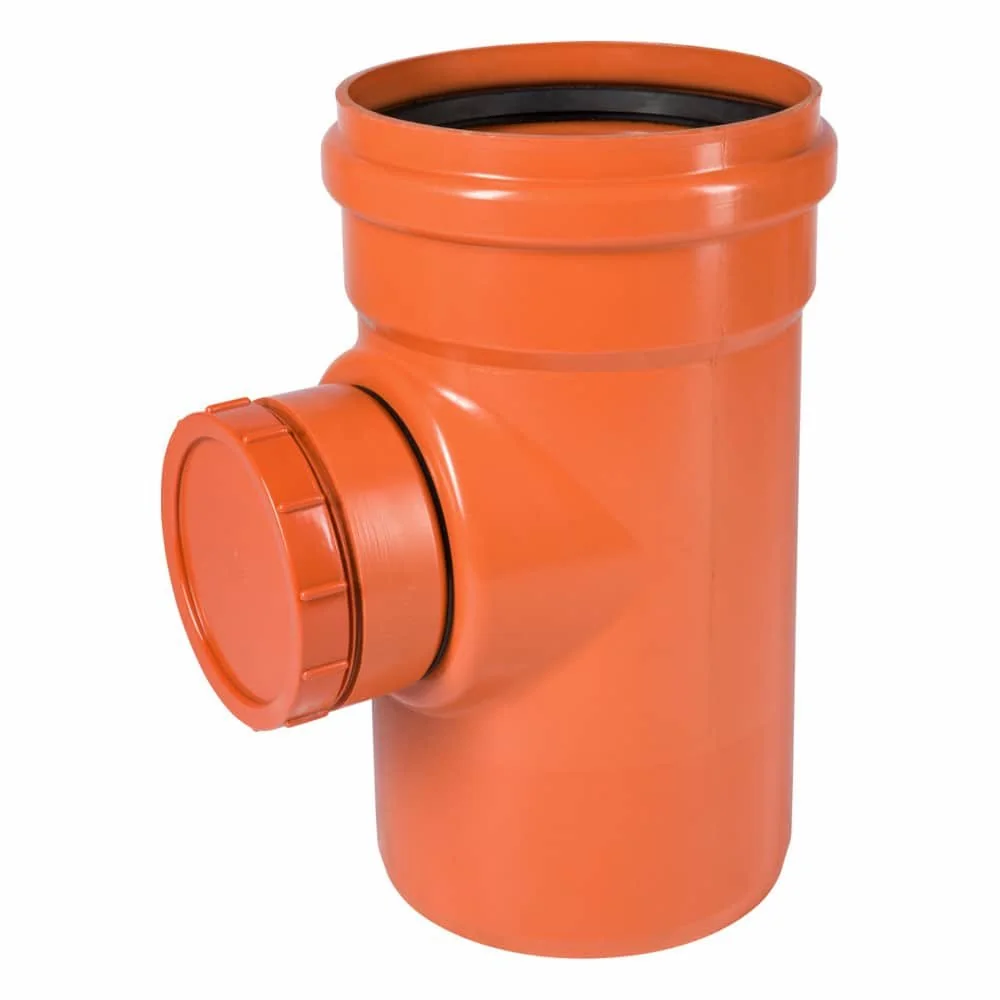

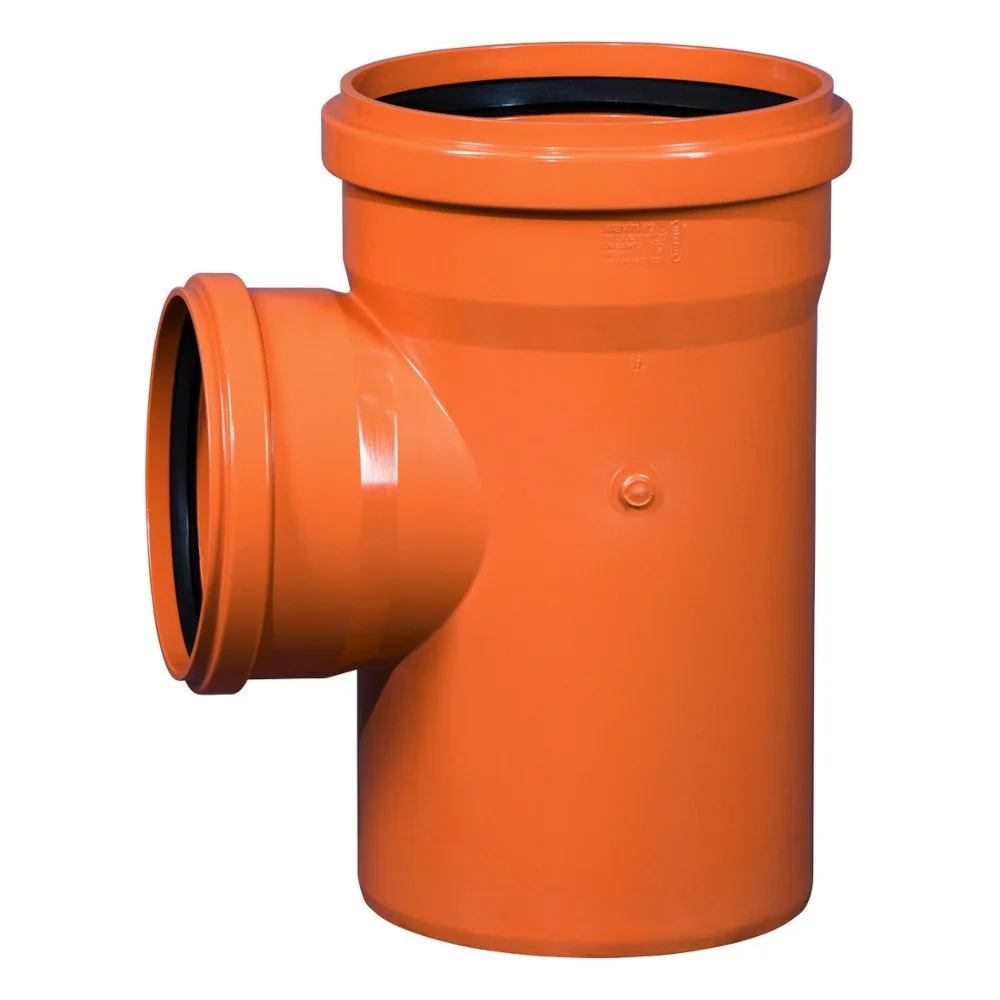

The cleaning pipe is an indispensable element for any wastewater pipe, as it provides access for cleaning and inspection. The profile ring ensures the tightness of the connections and is a typical wear part required during installation or repair. The branch pipe, in turn, is a classic fitting that allows for the branching of the pipeline. If you are planning a new system, you should first select the required straight pipes and then the appropriate fittings such as bends and branches. Make sure all components meet the same standard to avoid compatibility issues.
Frequently asked questions about DN/OD 250
What exactly does DN/OD 250 mean?
DN/OD stands for "Diameter Nominal / Outer Diameter" and indicates the nominal diameter based on the outer diameter. With DN/OD 250, the outer diameter of the pipe is 250 millimeters. This is the standard specification for plastic sewer pipes, where the connection is made using push-fit sockets with sealing rings. The inner diameter depends on the wall thickness of the pipe, which in turn is determined by the ring stiffness class (e.g., SN 4 or SN 8). DN/OD 250 is a common size for main collecting pipes in property drainage.
Which ring stiffness (SN class) is recommended for DN/OD 250 pipes?
Ring stiffness indicates how resistant a pipe is to external loads (e.g., soil cover, traffic loads). For most private applications, class SN 4 (4 kN/m²) is sufficient. For greater installation depths (from approx. 4 meters) or under trafficked areas (e.g., driveways, parking lots), you should choose pipes of class SN 8 (8 kN/m²). Selecting the correct SN class is crucial for the long-term stability of the pipeline. Check the local conditions and static requirements before purchase.
Can I install DN/OD 250 pipes above ground?
Yes, this is generally possible, but there are several points to consider. Standard KG pipes are optimized for underground installation and can become brittle under prolonged UV radiation. For above-ground applications, you should therefore use pipes with UV protection or cover the lines accordingly. Additionally, when laying pipes above ground, you must protect them against mechanical damage and fasten them sufficiently. For installation in buildings (e.g., basements), there are special pipe systems with improved sound insulation. Observe the respective building authority approvals.
How do I correctly connect DN/OD 250 pipes?
Connection is typically made via push-in sockets with integrated sealing rings. First, clean the pipe end and the socket of dirt. Apply a suitable lubricant (e.g., pipe lubricant or soapy water) to the pipe end and the sealing ring. Then insert the pipe end into the socket up to the stop. Ensure that the sealing ring is not damaged and sits correctly in the groove. If necessary, you can use pipe pliers or an installation tool. Correct installation is crucial for a permanent and tight connection. Do not use aggressive cleaning agents or greases that could attack the sealing ring.
Further categories in the sewer pipe system
The category DN/OD 250 is part of the overarching sewer pipe system, which includes various nominal diameters for different application areas. Depending on the required drainage volume and connection size, other diameters may be the more suitable choice. Here you will find an overview of the most relevant alternatives to DN/OD 250.
- DN/OD 200 – This diameter is commonly used for main drains in single-family homes or as a supply line to larger collectors. It is a standard size for property drainage and offers a good balance between flow capacity and material cost.
- DN/OD 315 – For very large wastewater volumes, as encountered in multi-family buildings, commercial operations, or when merging multiple lines, DN/OD 315 is the right choice. This diameter provides significantly higher capacity than DN/OD 250.
- DN/OD 160 – This smaller diameter is suitable for downpipes, connection lines from individual buildings, or as a supply line to rainwater infiltration systems. It is a space-saving and cost-effective alternative for lower flow volumes.
The choice of the correct diameter depends on the expected wastewater volume, the number of connected drainage fixtures, and local conditions. DN/OD 250 represents a solid medium size that is sufficient for many main collector lines in residential and commercial areas. If you are unsure which diameter is optimal for your project, compare the technical data of the different categories. The parent category Drainage Pipe System provides you with a central starting point to explore all available sizes and components.
In a nutshell
DN/OD 250 is a standard diameter for sewer pipe systems, characterized by an outer diameter of 250 mm. The 70 items in this category include pipes, fittings, and seals for creating tight and stable wastewater lines. When selecting, pay attention to the ring stiffness (SN class), component compatibility, and compliance with relevant standards. Typical applications include main collector lines, underground drains, and larger connection pipes. Plan your system carefully and choose suitable fittings such as bends, branches, and cleaning pipes to ensure a functional and low-maintenance installation.
