Reducers
In this category you will find over 220 industrial-grade stainless steel 316 reducers, suitable as threaded fittings for cold and hot water. These corrosion-resistant connectors are designed for pressure ranges up to 10 bar and impress with their durability.
Buy Reducing Sockets — Guide& Tips
Reducing sockets made of stainless steel 316 are essential connecting elements in any sanitary and irrigation installation. With 226 items in this category, you will find a wide range of sizes and designs – suitable for almost any application in cold and hot water up to 10 bar. Correct sizing is crucial: a reducing socket allows you to reduce a pipe or thread to a smaller nominal size without compromising the tightness of the connection.
When purchasing, pay attention to the exact thread dimensions – both on the inlet and outlet sides. Most reducing sockets in this category are designed as female threads on both sides or as a combination of female/male thread. Check the respective product details for the properties and certifications relevant to your selection. Even outdoors, for example in garden irrigation, you benefit from the material's durability and weather resistance.
A common mistake: choosing a reducing socket that is too short. Depending on the application (for example, transitioning from a manifold to a hose connection), you need sufficient insertion depth to ensure a secure hold and tightness. The category includes both short and long versions – therefore check the overall length before ordering. If you are unsure, take a look at the technical drawings of each item. For hot water applications (for example in solar thermal systems or heat pumps), stainless steel 316 is the first choice due to its temperature resistance well above 100 °C. Reducing sockets made of this material do not become brittle with age and remain tight even after many years of operation.
The combination of corrosion-resistant stainless steel and precision manufacturing makes these connecting elements a long-lasting investment – whether for private households, hobby gardens, or commercial systems. Compare the dimensions carefully with your existing pipe threads to avoid later leaks.
Popular Reducing Sockets

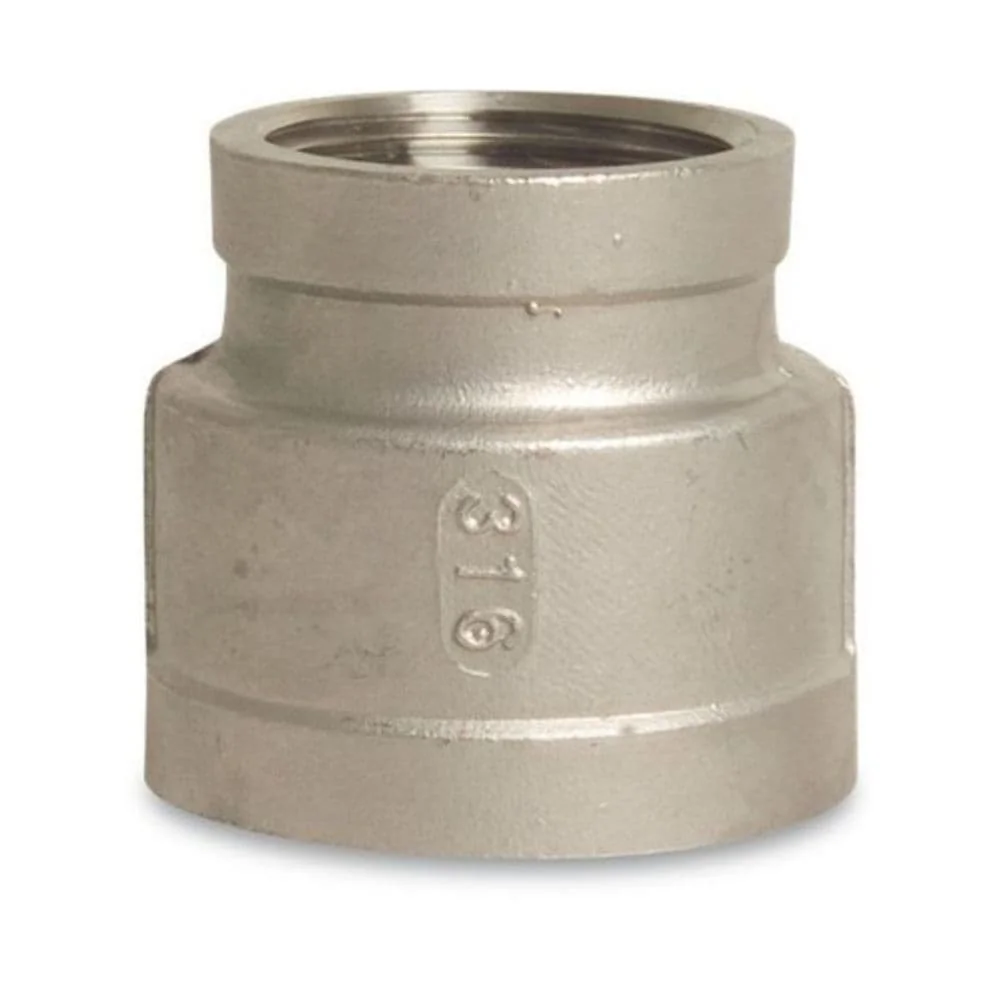

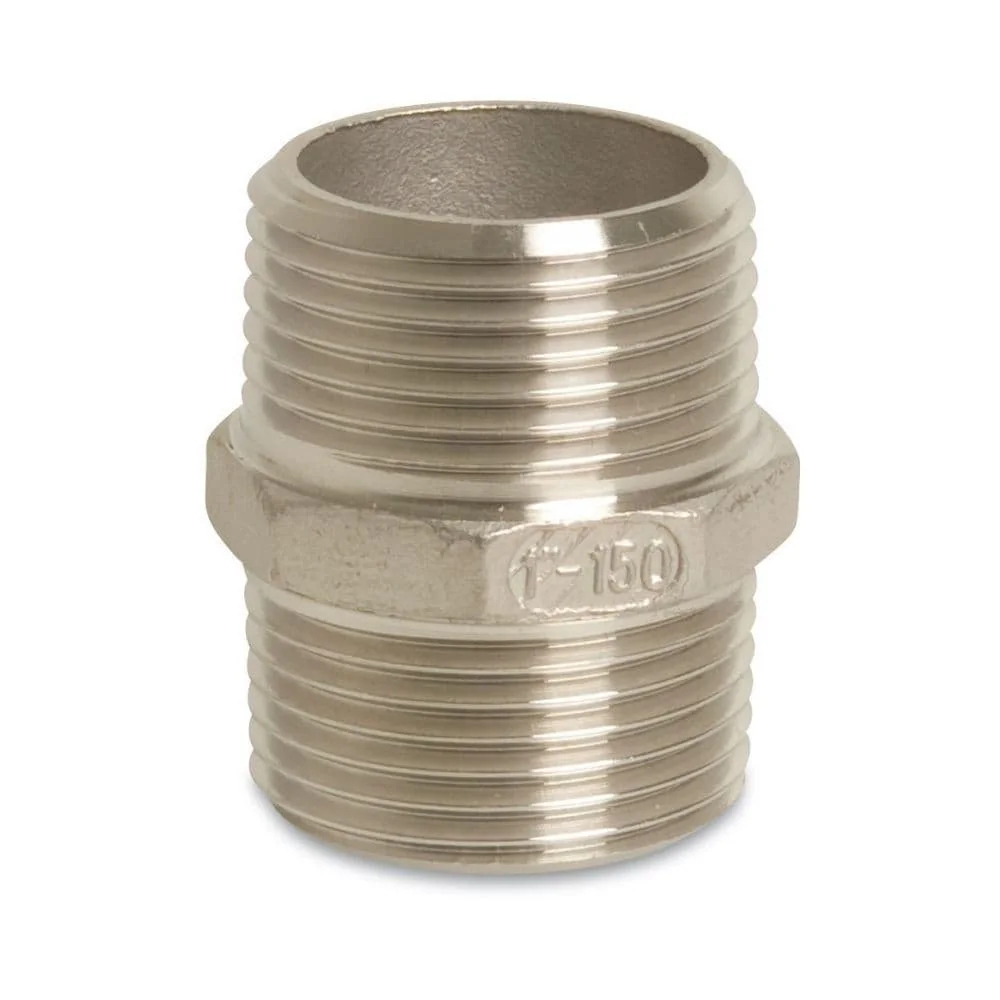

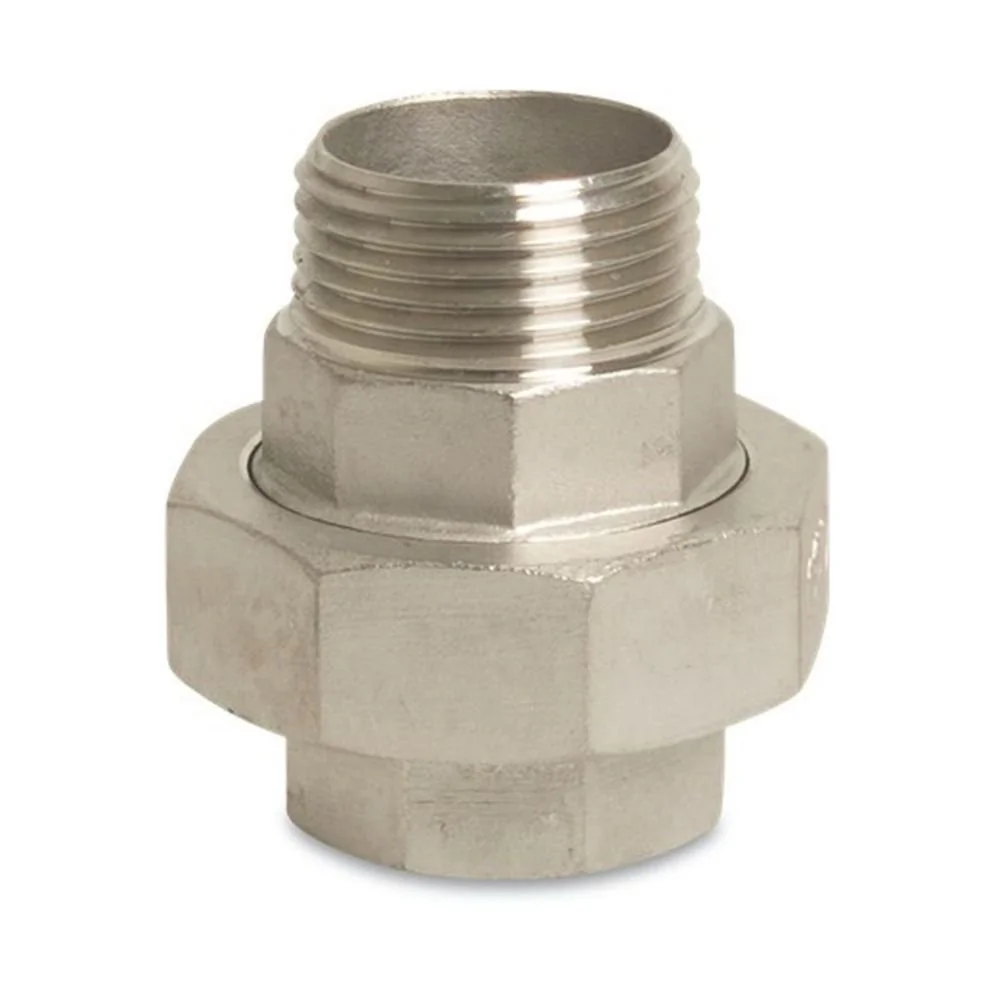

These three product types cover the most common applications: The double nipple serves as an extension or connecting element for the same diameter, the reducing socket reduces the cross-section in a targeted manner, and the fitting with combined internal/external thread enables flexible transitions. Always pay attention to the exact thread designation (for example 1¼" female to 1" female) as well as the maximum operating temperature. All items shown are made of stainless steel 316 and are designed for 10 bar operating pressure – making them equally suitable for cold and hot water.
Frequently asked questions about reducers
What are the differences between reducers made of stainless steel 316 and those made of brass or plastic?
Stainless steel 316 (V4A) offers significantly better corrosion resistance compared to brass, especially with chlorinated water or high temperatures. Plastic fittings are cheaper, but often not approved for hot water and higher pressures (over 10 bar). For drinking water installations, stainless steel reducers are recommended as they do not release heavy metals and are extremely durable. Brass can dezincify with prolonged contact with acidic water – a risk that does not exist with stainless steel 316.
Can a reducer also be used for hot water (for example in solar circuits)?
Yes, reducers made of stainless steel 316 are permanently suitable for hot water up to about 100 °C. Pay attention to the specification 'up to 10 bar' in the data sheet – at higher temperatures, the permissible pressure rating decreases slightly, so if in doubt, you should choose a slightly thicker-walled version. The corrosion-resistant alloy also prevents the formation of rust or deposits even during temperature changes.
How do I find the right size for my pipe thread?
Measure the outside diameter of the existing pipe or thread with a caliper. Compare this value with the thread dimension table (for example, 1″ = approx. 33.2 mm outer Ø). For internal threads, measure the inside diameter. Pay attention to whether it is an imperial thread (typical for plumbing) or a metric thread. A reducer connects two different nominal sizes – example: 1½″ to 1″. If you are unsure, it is better to choose a combination of coupling and nipple to remain flexible.
Do I need to pay attention to anything special when installing reducers?
Hand-tighten the reducer and then tighten it a maximum of half a turn with a pipe wrench. Overtightening can damage the thread and cause leaks. Ensure that the thread engagement length is sufficient to fully screw the reducer into the mating piece – insufficient thread engagement leads to leaks. After installation, check for leaks under operating pressure.
More categories from the stainless steel 316 threaded fitting range
The Stainless Steel 316 Threaded Fittings- Overview provides a complete overview. If you want to extend or connect pipes of the same diameter, use Double nipple + pipe nipple – these are directly usable without additional reduction. For simple closures on pipe ends, suitable are Caps + plugs, which ensure a secure seal.
Another important connection type are couplings, which serve as an extension or as a transition between two pipes with the same thread. The categories distributors + wall brackets as well as angles + bends round off the range and help you design pipe runs efficiently. Decide according to the required angle or distribution purpose – all components are made from the same high-quality stainless steel 316 and are therefore compatible with each other.
In short
Reducing fittings made from stainless steel 316 (V4A) connect different pipe diameters securely and durably – for cold and hot water up to 10 bar. The 226 items in this category cover all common inch sizes. Pay attention to correct thread dimensions (female/male) and sufficient length. Combine reducing fittings with matching Double nipples or sockets, to make your installation flexible. The corrosion-resistant alloy supports longevity even under demanding conditions – whether indoors, in the garden, or in industry.
